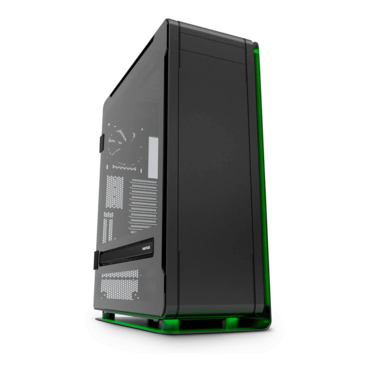

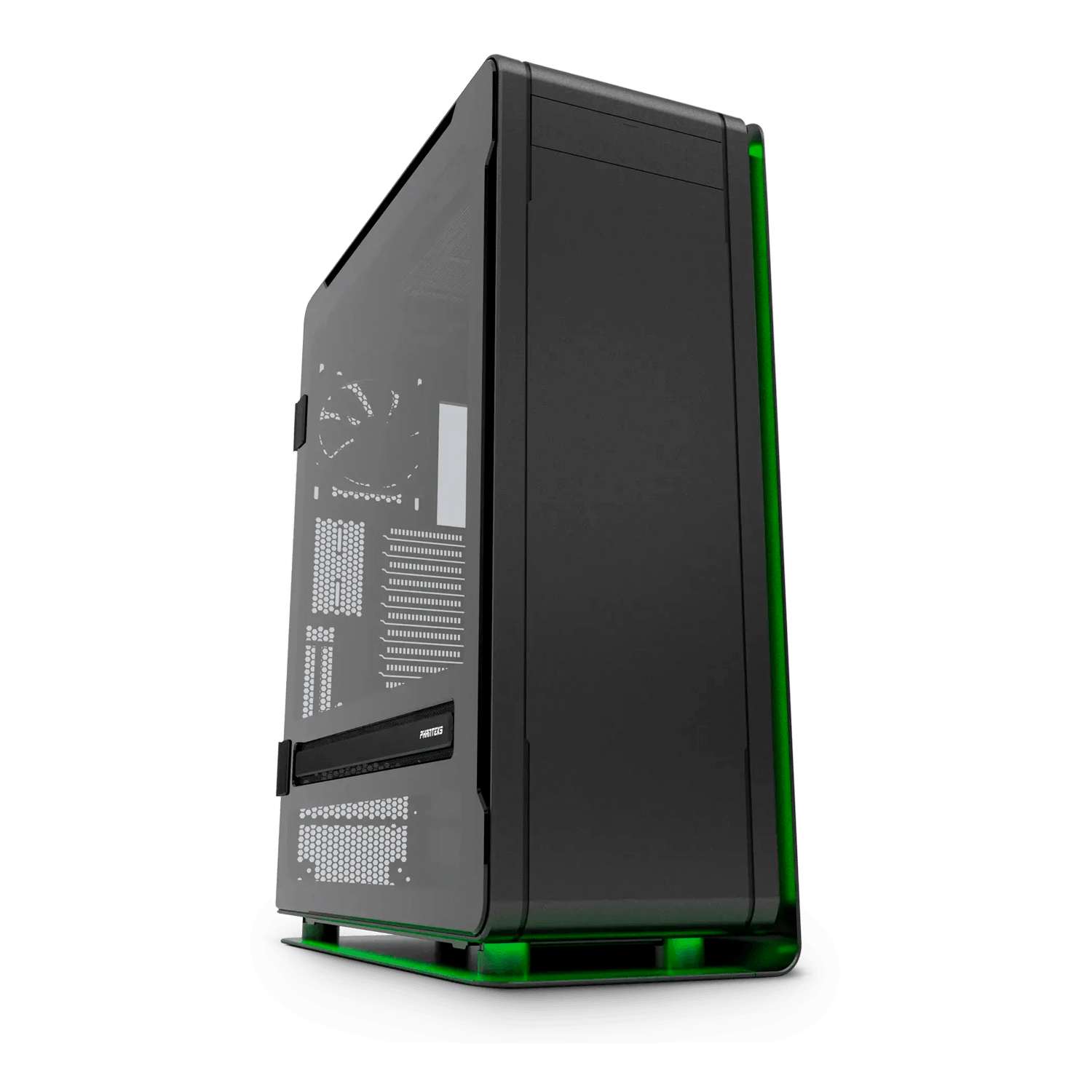

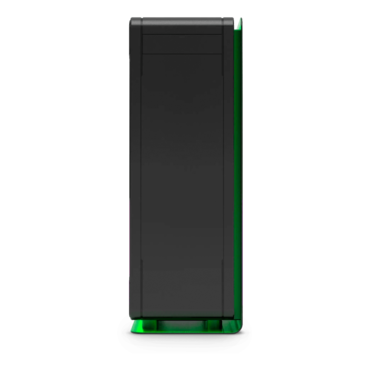

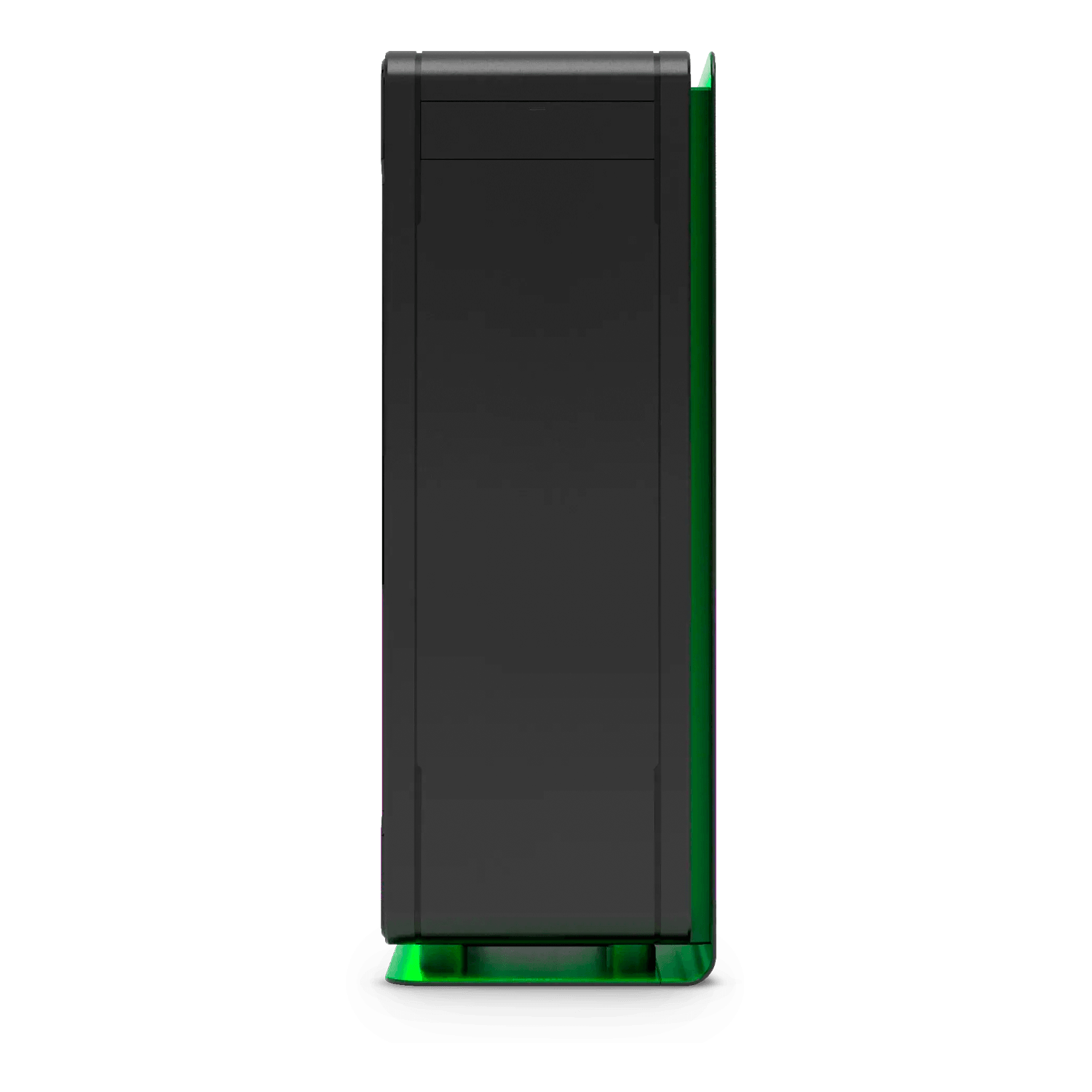

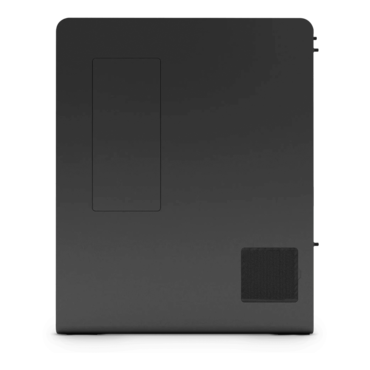

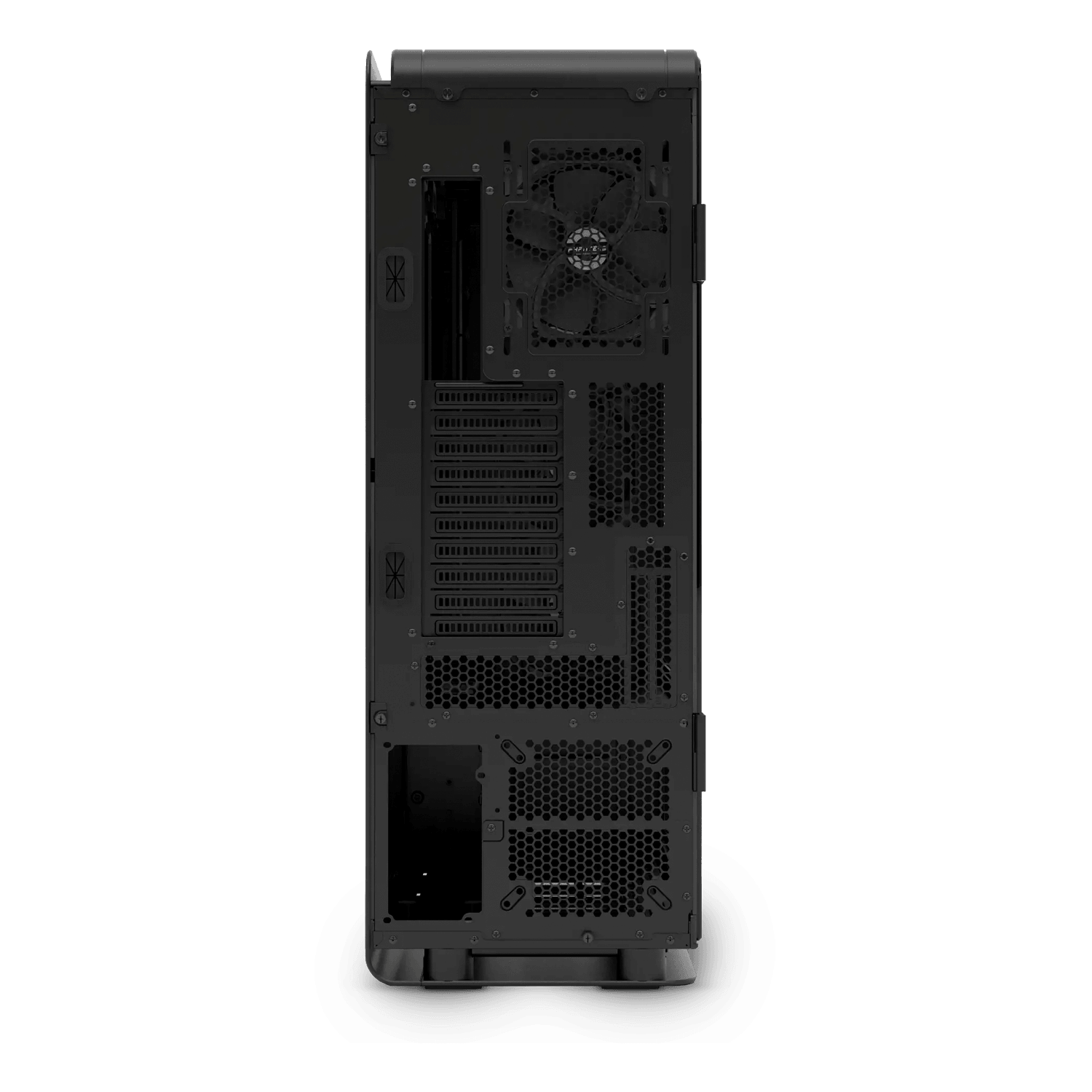

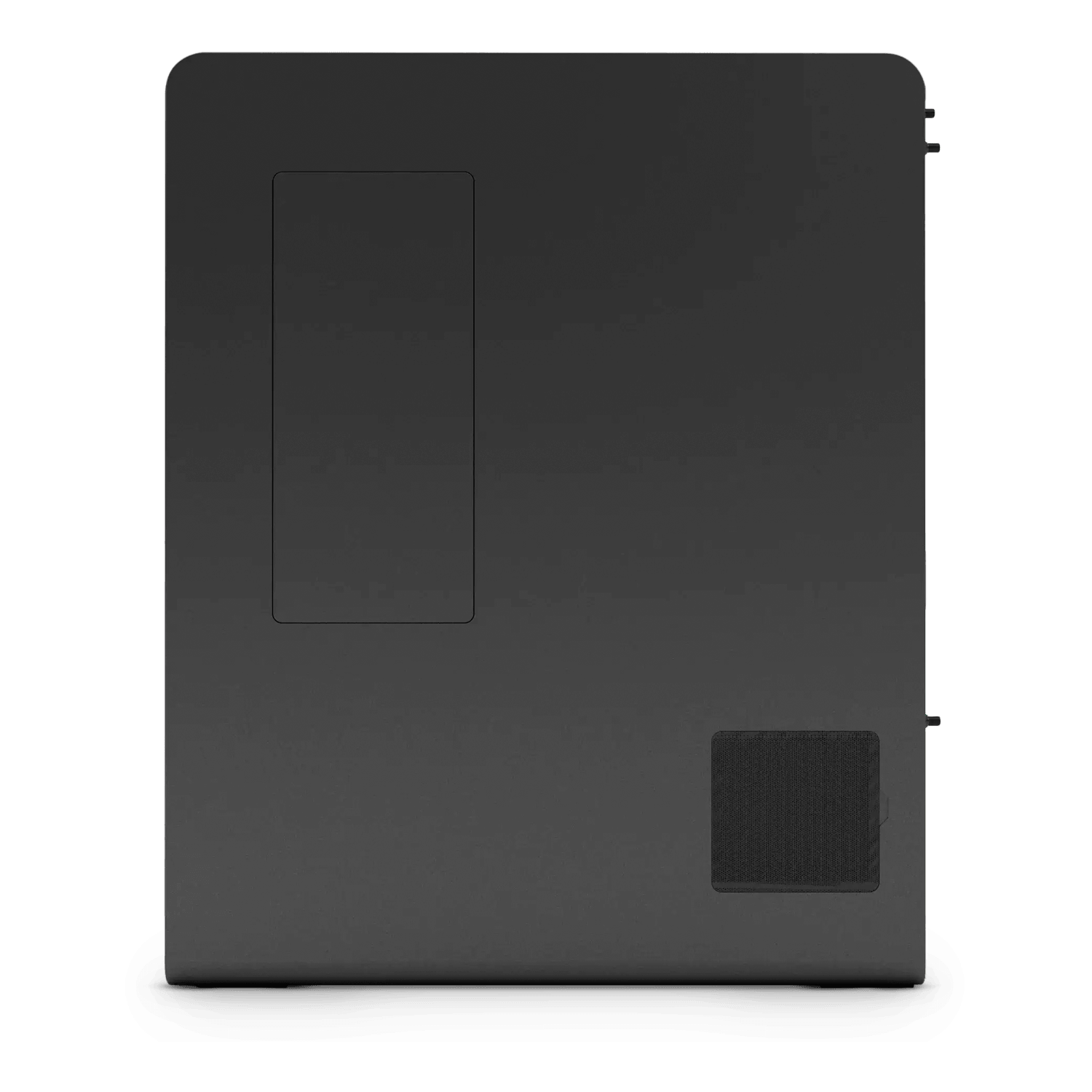

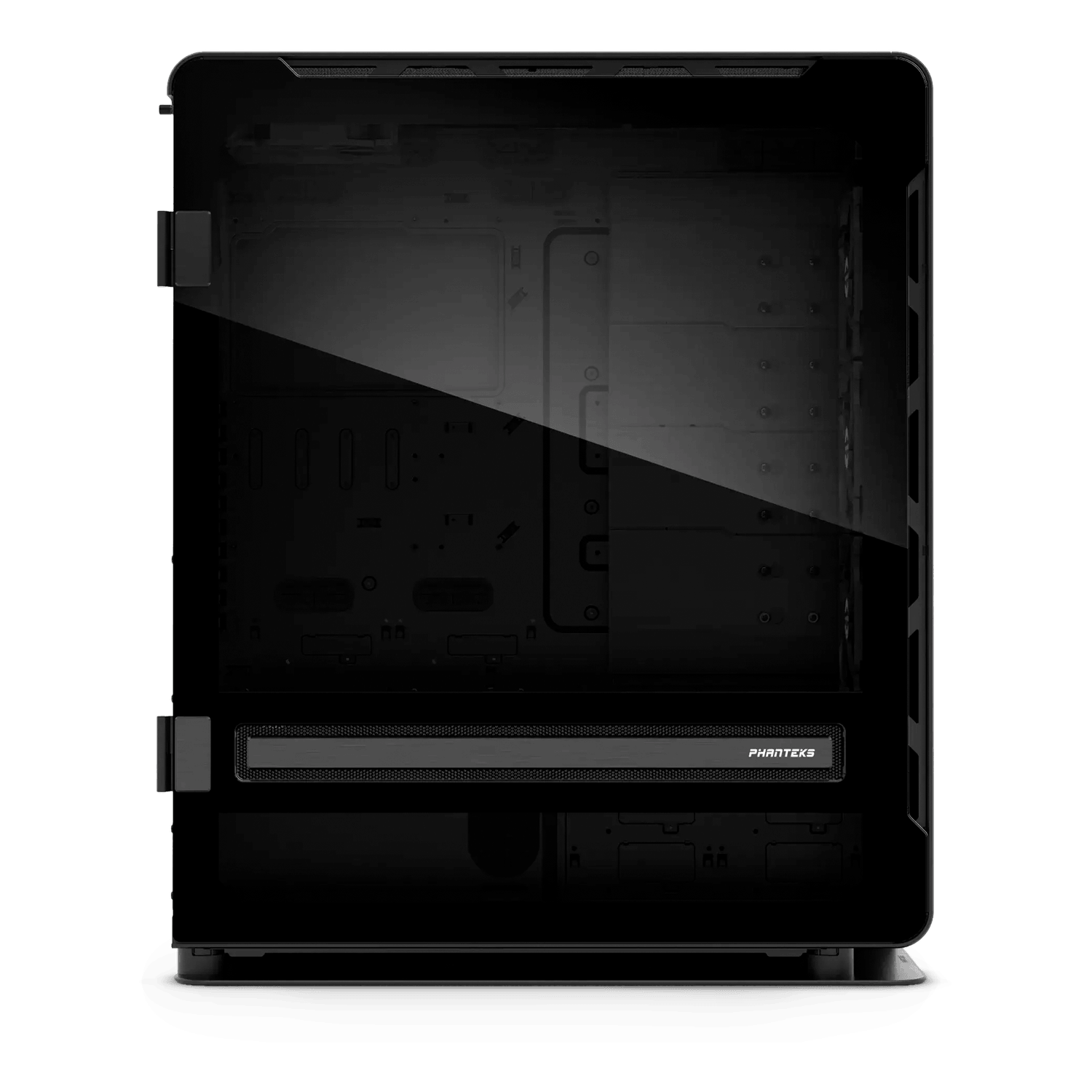

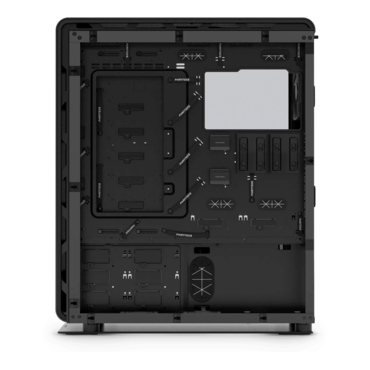

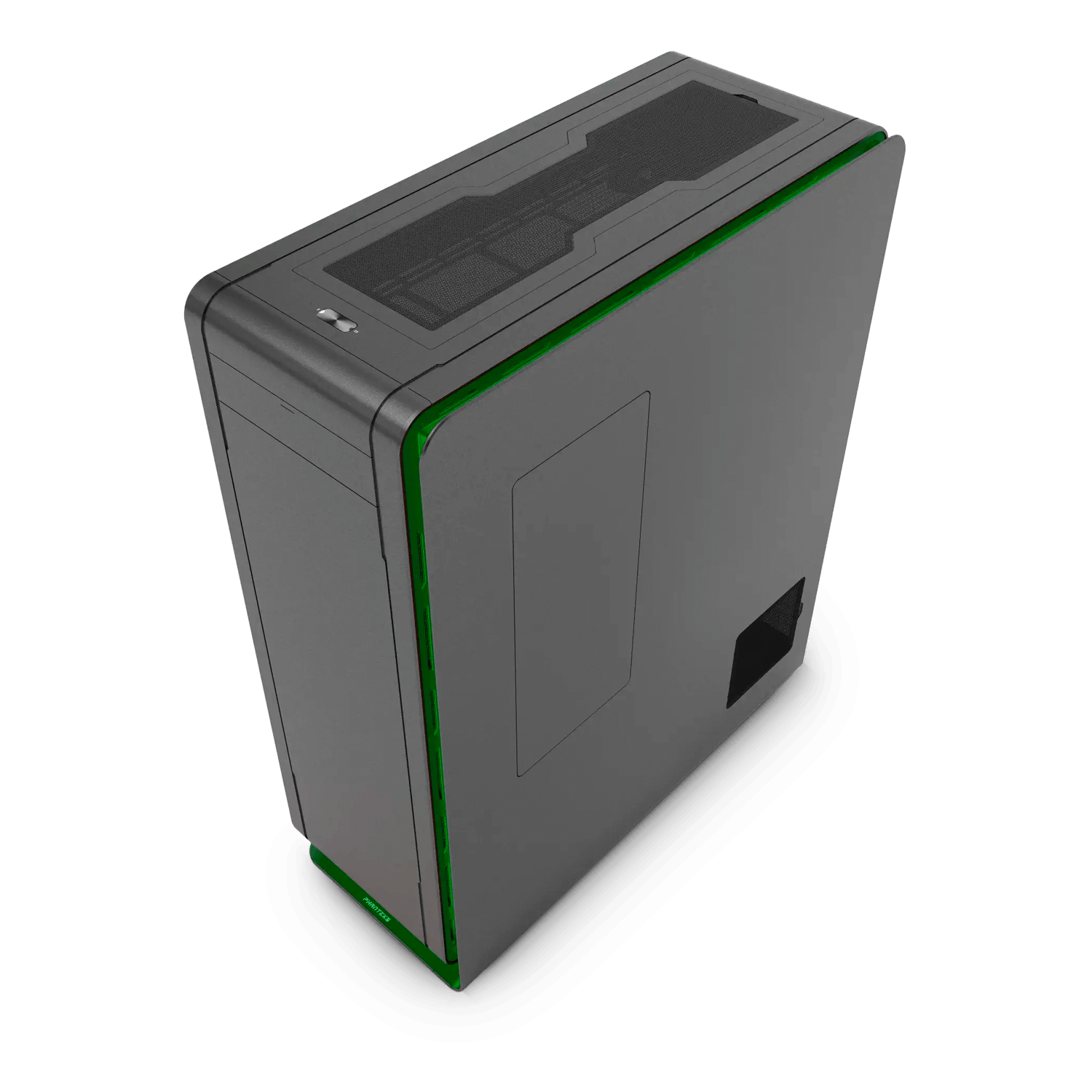

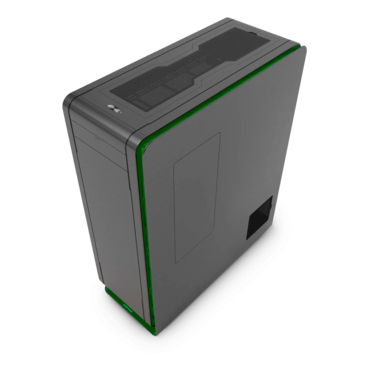

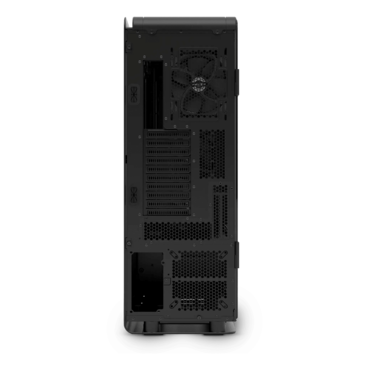

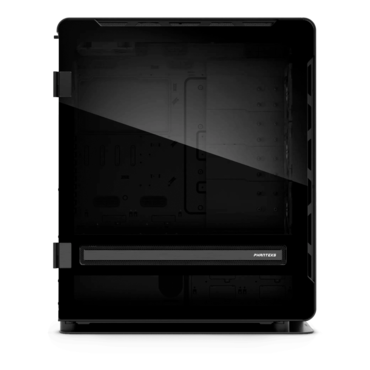

Enthoo Elite, Tempered Glass, No PSU, E-ATX, Satin Black, Full Tower Case
- SKU: 20206838
- Manufacturer: PHANTEKS
- MPN: PH-ES916E_BK
- Availability: TEMPORARILY OUT OF STOCK
- Hassle-free radiator brackets for easy installation.
- Performance or silence panels, your choice.
- Keep the most highend gaming system running cool.
- Every space in the Enthoo Elite is efficiently designed.
- Different configurations available depending on personal system preferences.

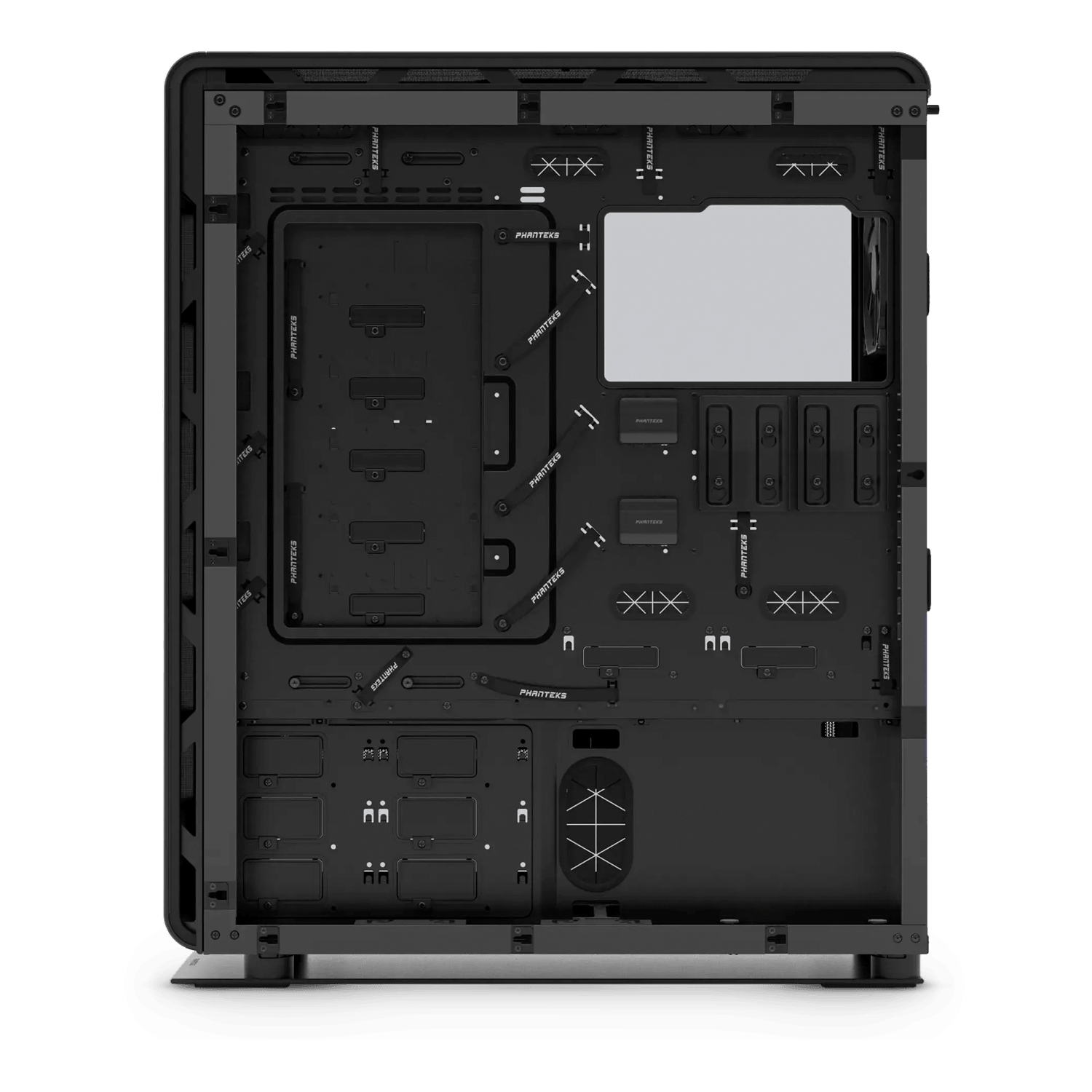

- Clean interior with aluminium covers and hidden PSU & cables.
- Modular 5.25″ drive bracket.
| General | |
| Model No. | PH-ES916E_BK |
| UPC Code | 886523301233 |
| Case Dimensions | 270 x 750 x 615 mm | 10.6 x 29.5 x 24.2 in |
| Form Factor | Full Tower |
| Mainboard Support | EEB | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass |
| Side Window | Yes |
| PCI Slots | 10 |
| Vertical GPU Support | 4-slots Riser Cable included |
| Internal 2.5″ Bay | 6 | 4 Included + 8x 3.5″ HDD |
| Internal 3.5″ Bay | 13 | 6 Included + 2x 2.5″ SSD |
| Front I/O |
1x USB 3.1 Type-C 4x USB 3.0 2x Microhone 2x Headphone 1x HDMI 2.0 2x Reset button RGB control wheel |
| Fans 120 | 140 | |
| Total Fans | 20x | 17x |
| Top | 4x | 3x (1x pre-installed) |
| Front | 4x | 4x (3x pre-installed) |
| Side | 3x | 2x |
| Midplate | 3x | 3x |
| Bottom | 4x | 3x |
| Rear | 2x | 2x (1x pre-installed) |
| Radiators 120 | 140 | |
| Top | Max. 480 | 420 |
| Front | Max. 480 | 560 |
| Side | Max. 360 | 240 |
| Midplate | Max. 480 | 420 |
| Bottom | Max. 480 | 420 |
| Rear | 120 | 140 |
| Clearance | |
| CPU Cooler | Height 210 mm | 8.27 in |
| GPU | Length – |
| GPU | Height – |
| Power Supply | Length – |
| Top Radiator | Height 65 mm | 2.56 in |
| Front Radiator | Length x Width – |
| Side Radiator | Length x Width – |
| Bottom Radiator | Length x Width – |
| Extra | |
| Net Weight | 33.00 kg | 72.75 lbs |
| Gross Weight | 47.00 kg | 103.61 lbs |
| Warranty | 5 Years limited Learn more |
| Scope of Delivery |
1x Enthoo Elite chassis 4x SSD bracket 6x HDD bracket 2x 5.25” ODD bracket 5x 140 fans 1x Closed top panel 1x Radiator side panel |
| Accessory Box |
1x GPU anti-sag bracket 1x Vertical GPU mount 1x Dual system bracket 1x Power splitter bracket 2x PWM fan hub 2x Pump bracket
10x Zip ties |
| Screws |
35x Mainboard | SSD screws 14x Power supply screws 24x HDD locking screws 20x 32×6 Thumb screws 10x 32×10 Thumb screws 12x Fan screws 8x Radiator screws 20x Case screws 2x Motherboard stand-off 1x Stand-off removal tool 1x PSU rubber feet |
