Model Number |
Black: E302-KGNN-S00, White: E302-WGNN-S00 |
Exterior Color | Black, White |
Materials - Exterior | Steel |
Materials - Side panel (Right / Left) | TG / Steel |
Dimensions (L x W x H) |
390 x 203.5 x 430mm (Incl. Protrusions), 377 x 203.5 x 410mm (Excl. Protrusions) |
Volume (incl. Protrusions) | 34.13L |
Motherboard Support | Mini-ITX, Micro-ATX |

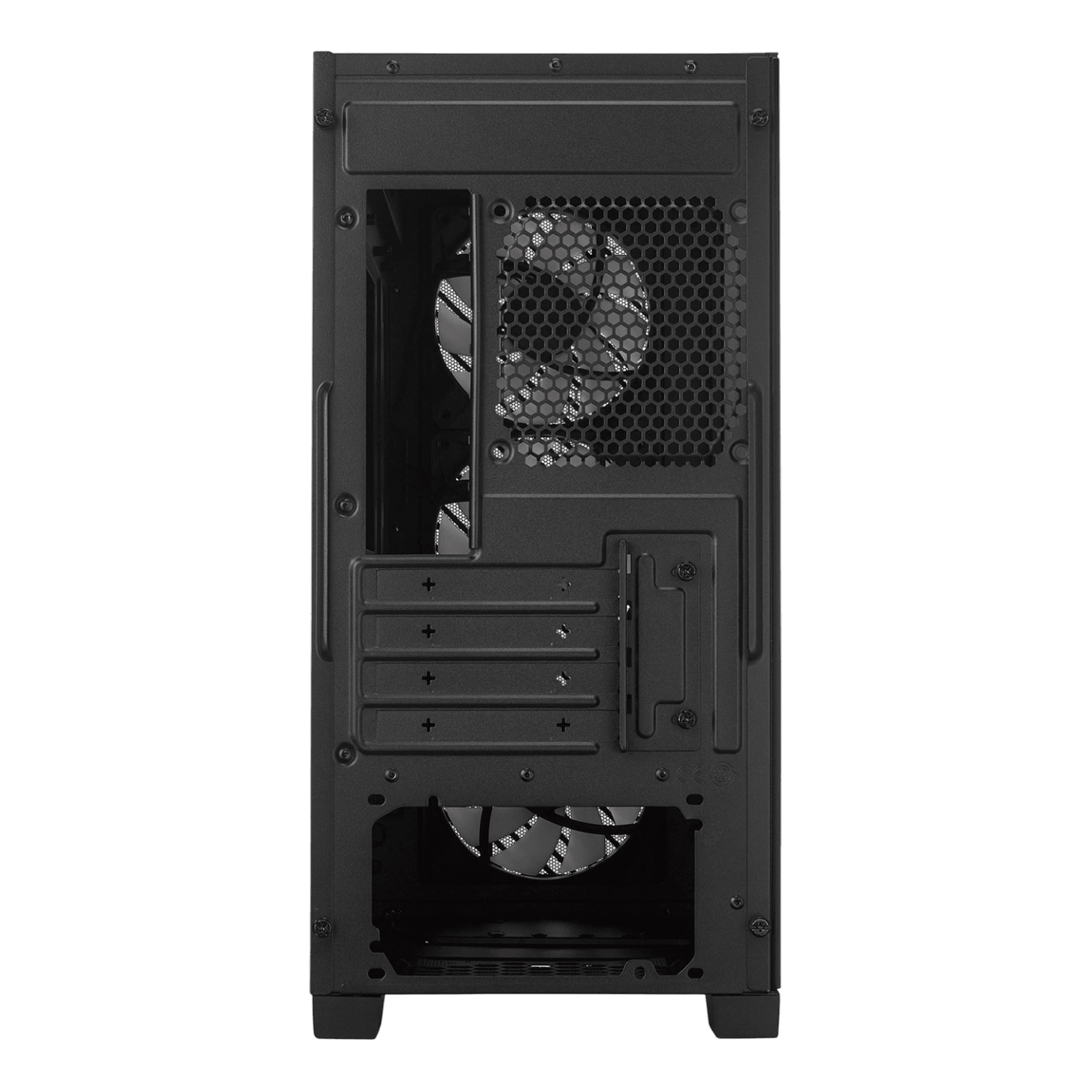

Expansion Slots | 4 |
5.25" Drive Bays | N/A |
3.5" Drive Bays | 1 |
2.5" Drive Bays | 1 (Max. 2) |
I/O Panel - USB Ports |
1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
I/O Panel - Audio In / Out | 1x 3.5mm Combo (Audio + Mic) |

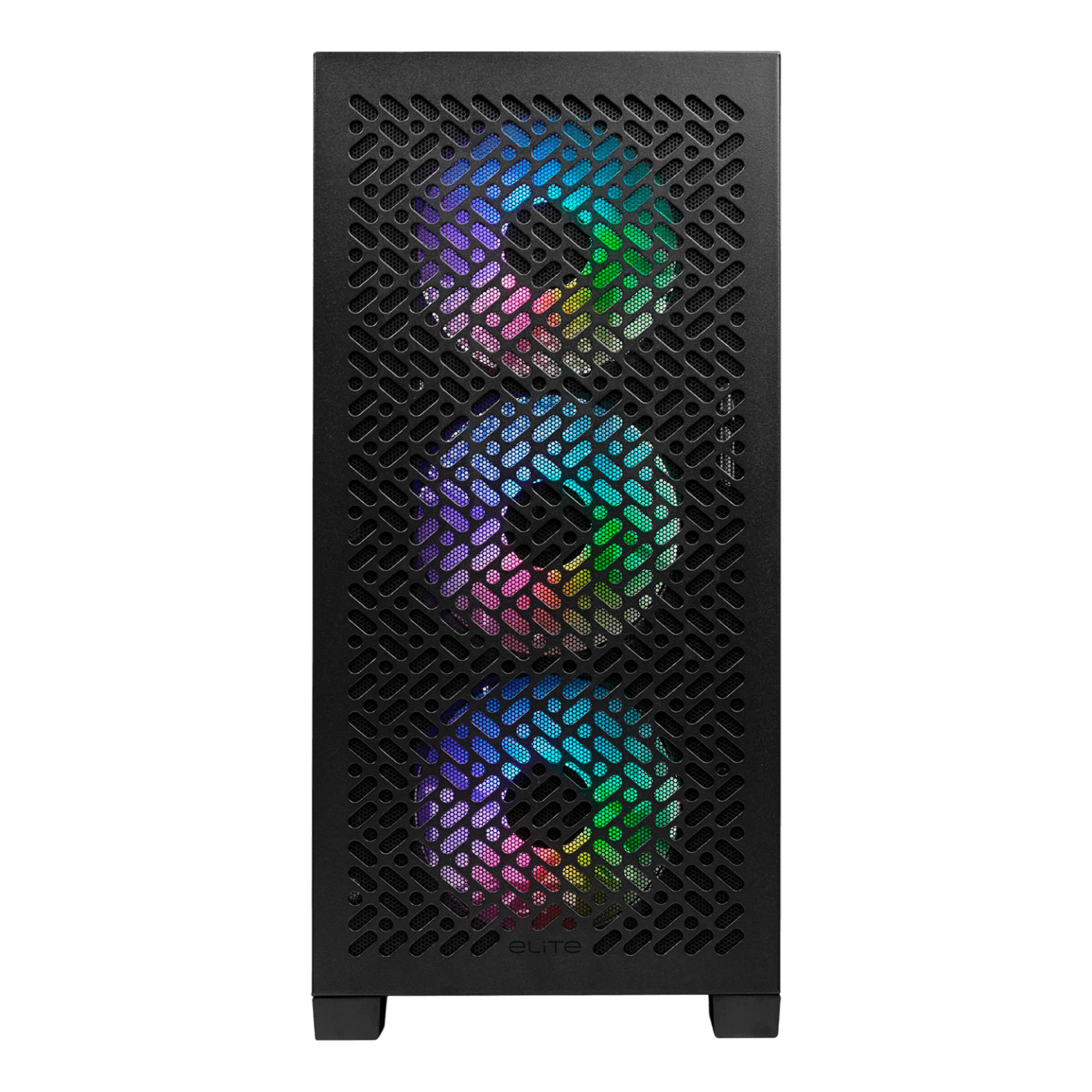

Fan Support - Front | 3x 120mm |
Fan Support - Top | 2x 120mm / 2x 140mm |
Fan Support - Rear | 1x 120mm |
Pre-installed Fans - Front |
Black: 3x 120mm ARGB Black, White: 3x 120mm ARGB White |
Pre-installed Fans - Top | N/A |
Pre-installed Fans - Rear | N/A |
Radiator Support - Front |
120 / 240 / *360 mm (*Supported within 60mm thickness) |
Radiator Support - Top | 120 / 140 / 240 / 280mm |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 163.5mm |
Clearance - PSU | 160mm |
Clearance - GFX | 365mm (without front fans & radiator) |

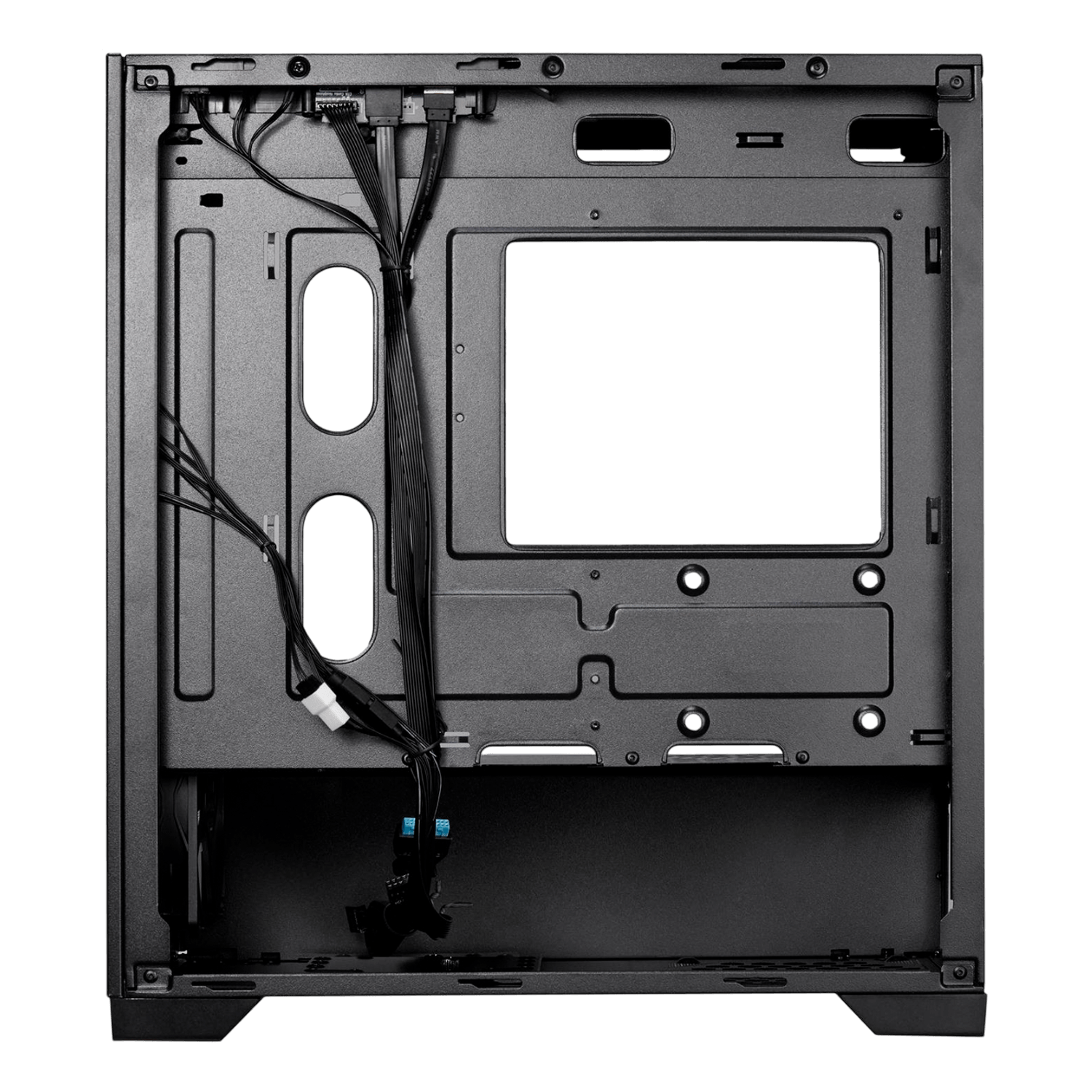

Cable Routing | 18.5mm |
Dust Filters | Top / Bottom / Front |
Power Supply Support | ATX |
Warranty | 2 years |
Size | Mini Tower |
Series | Elite Series |
