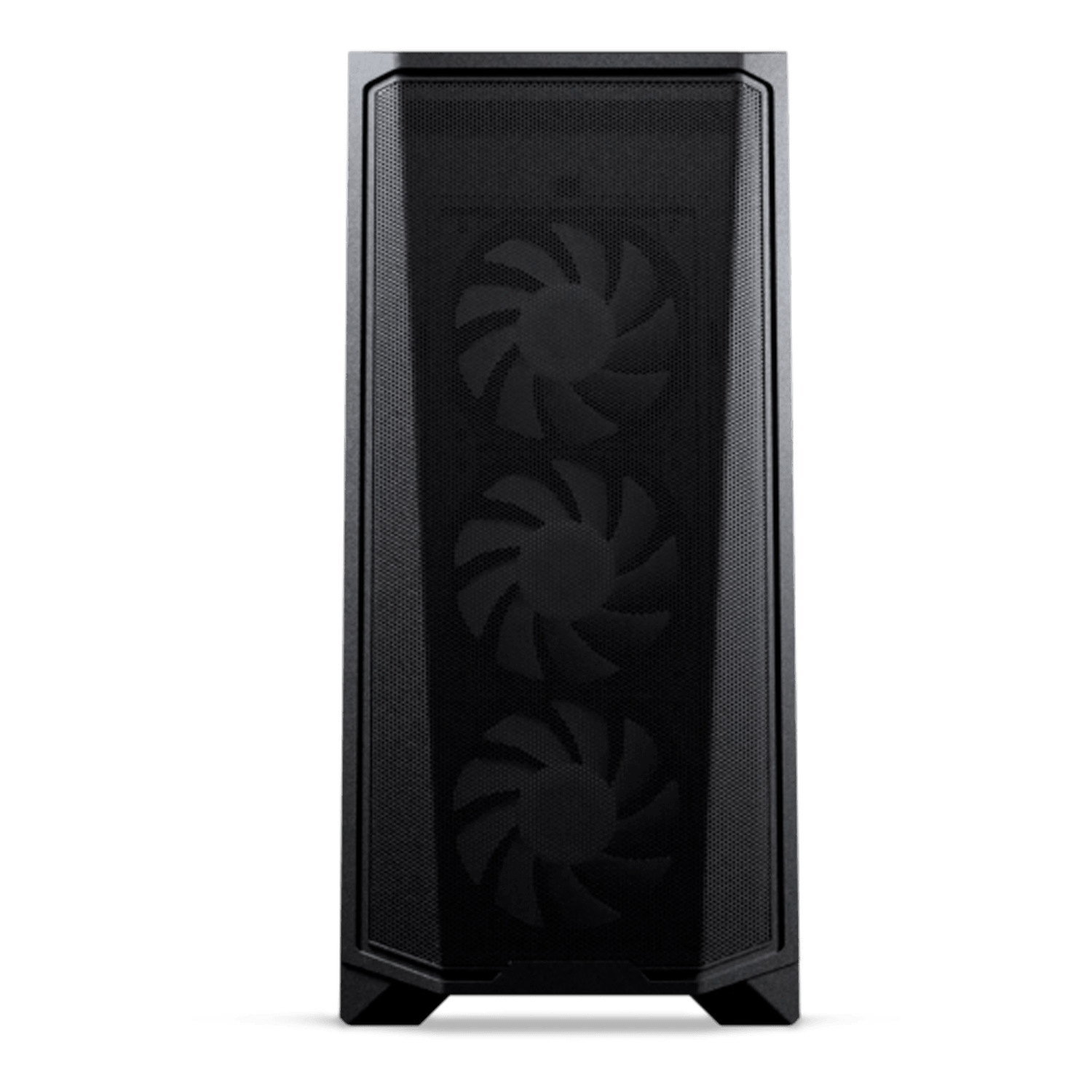

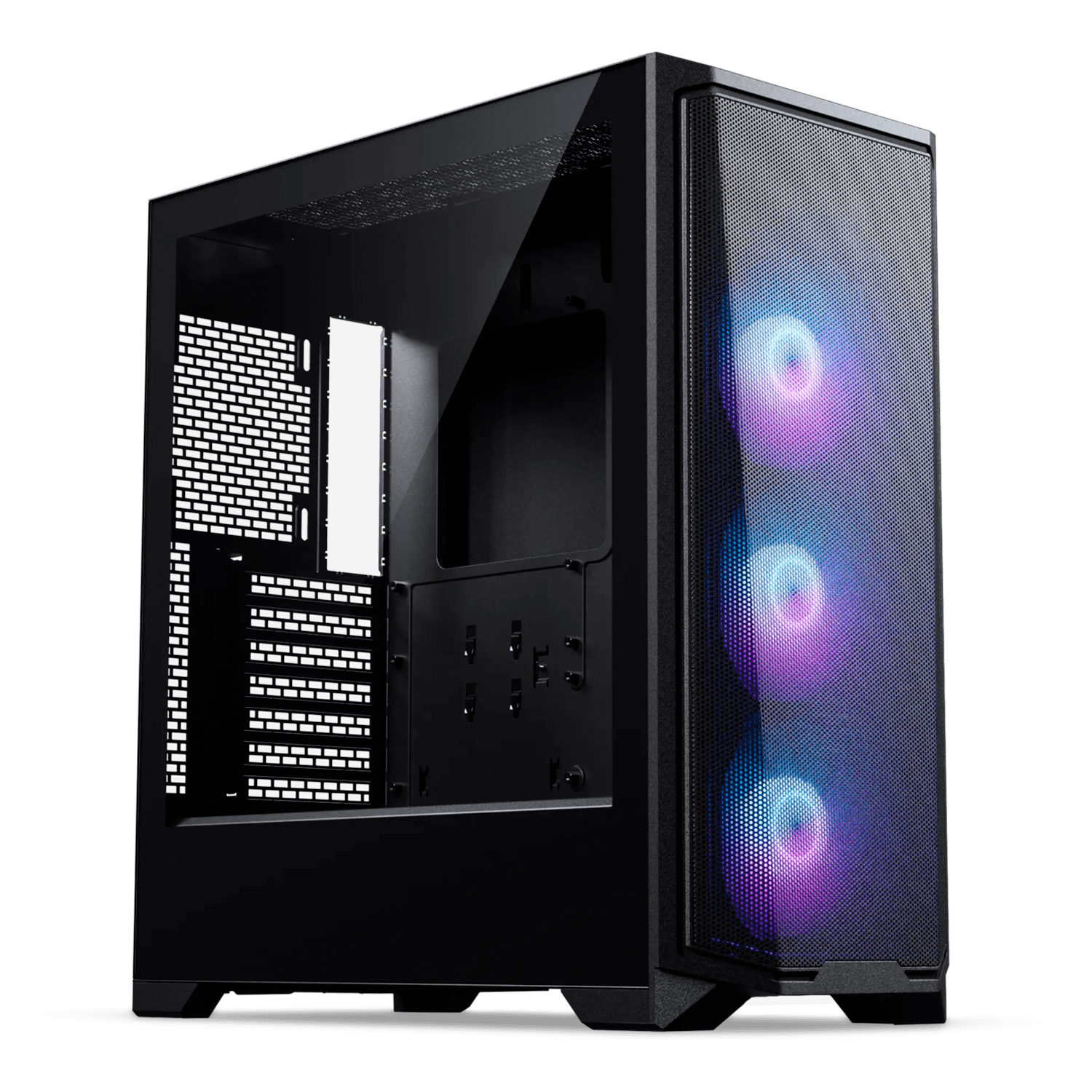

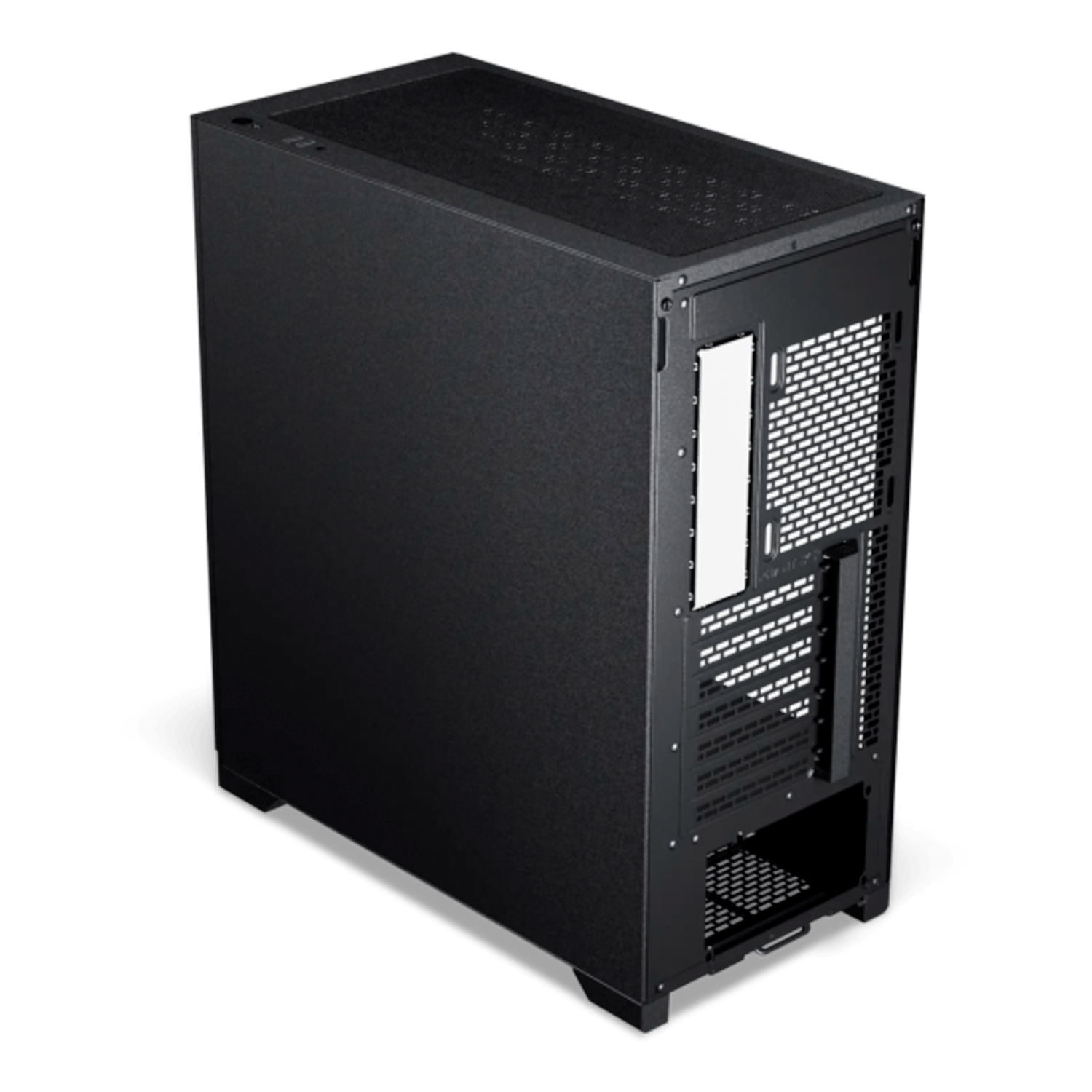

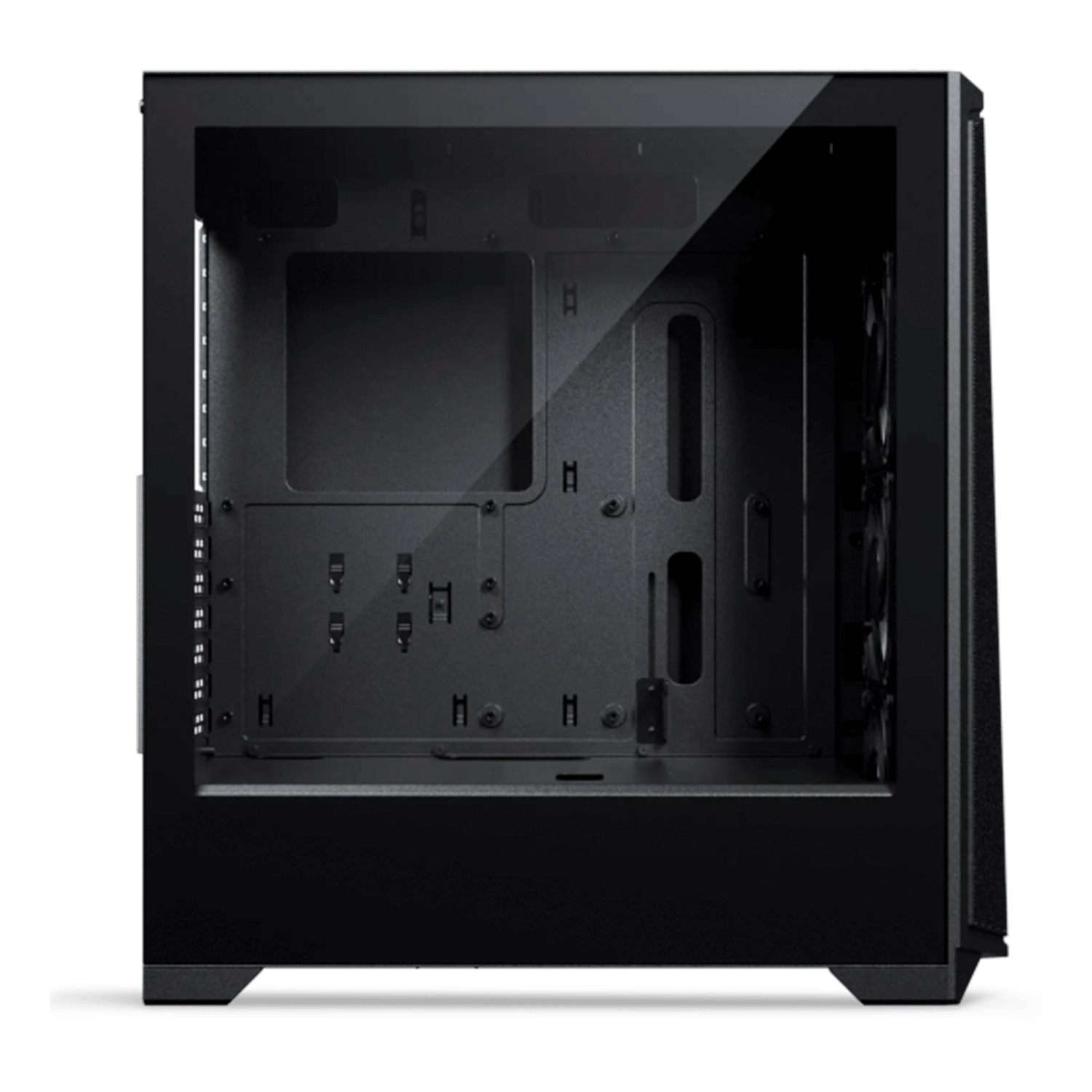

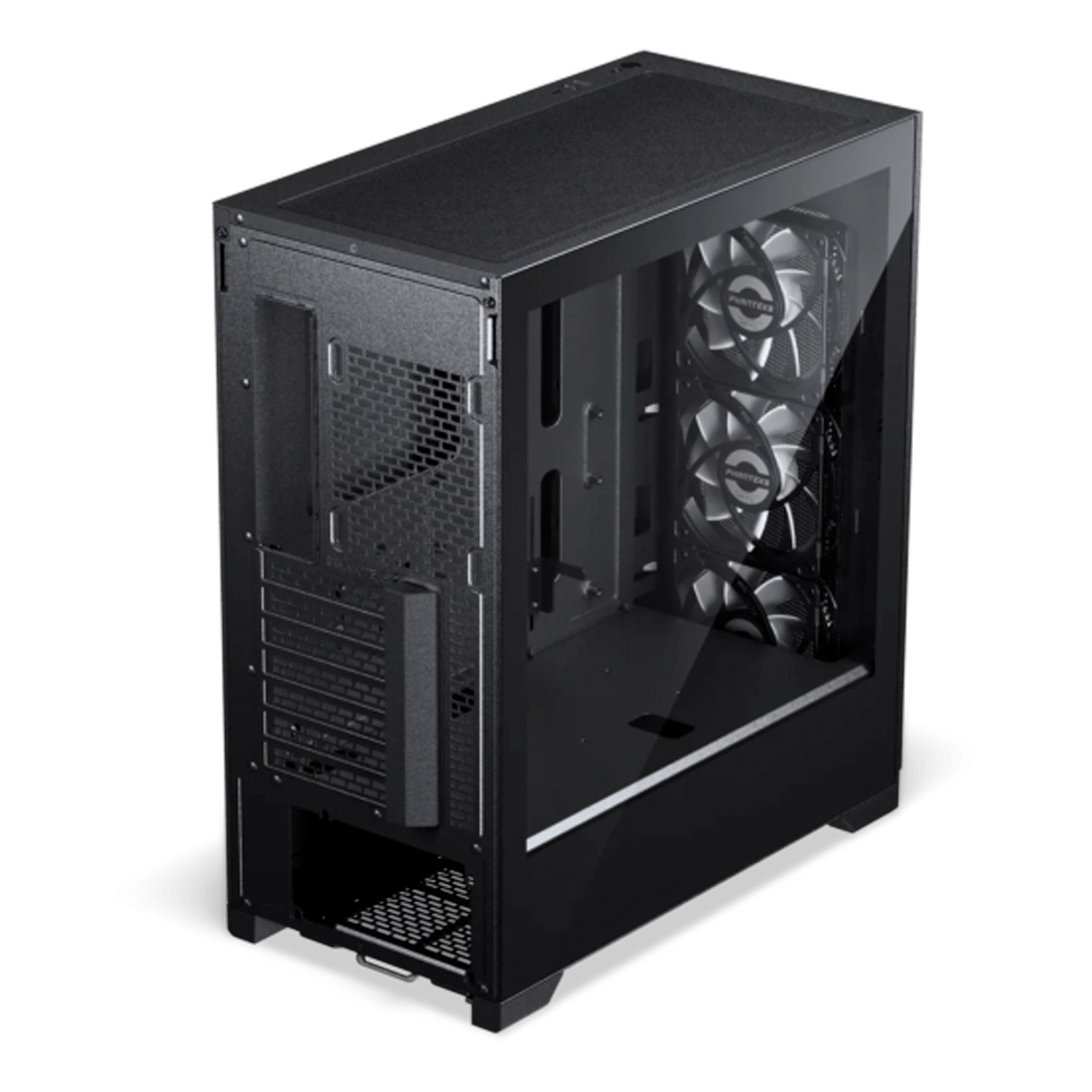

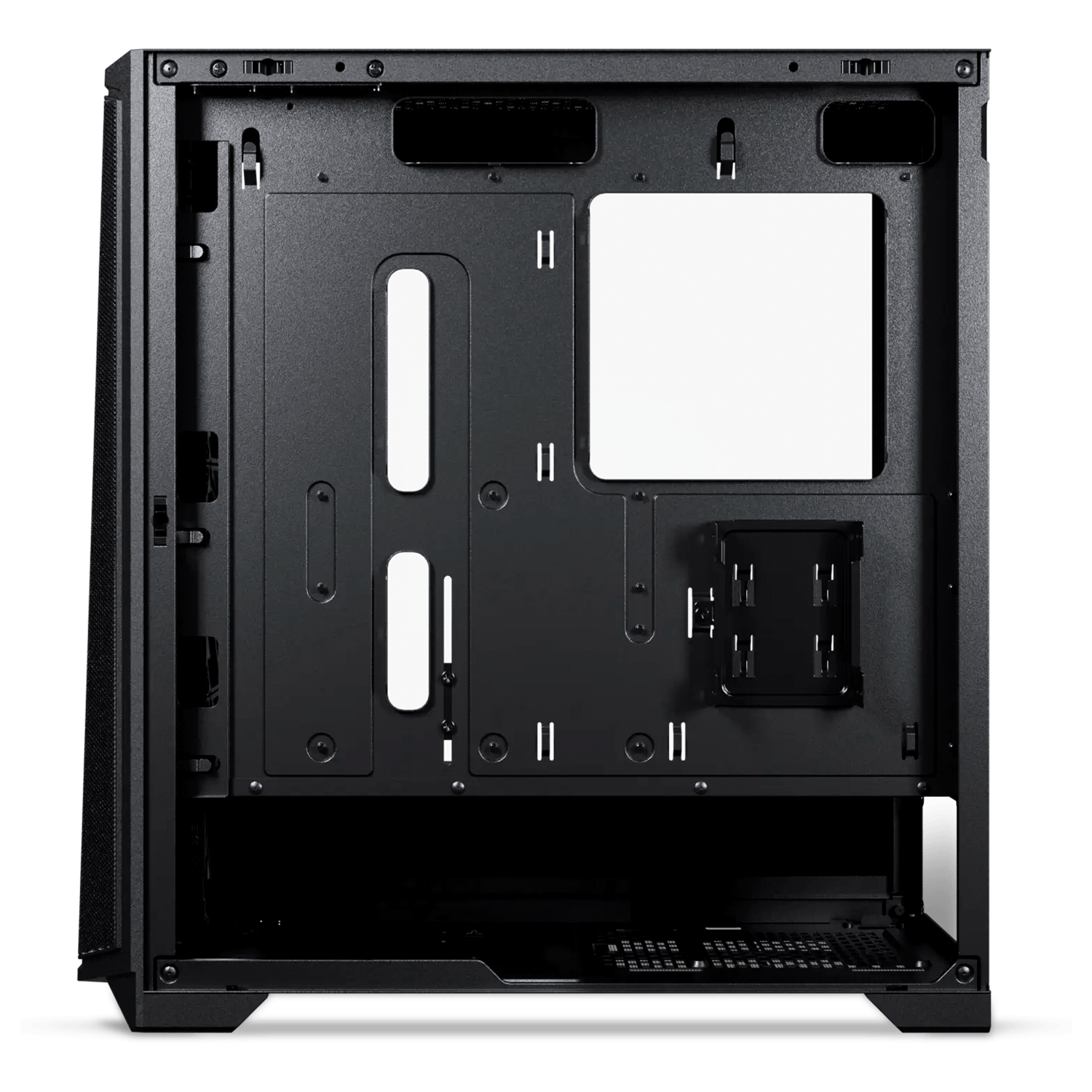

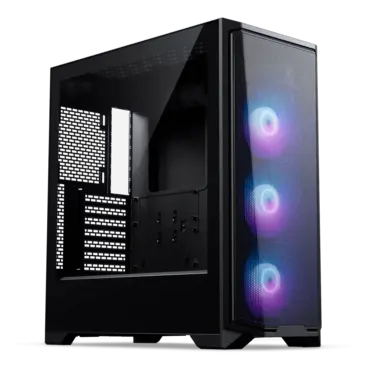

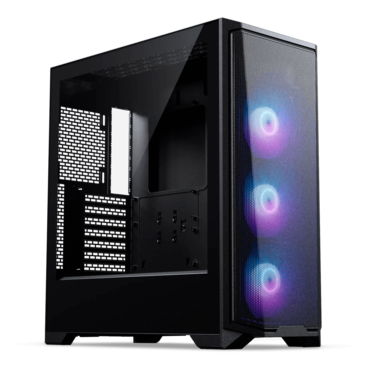

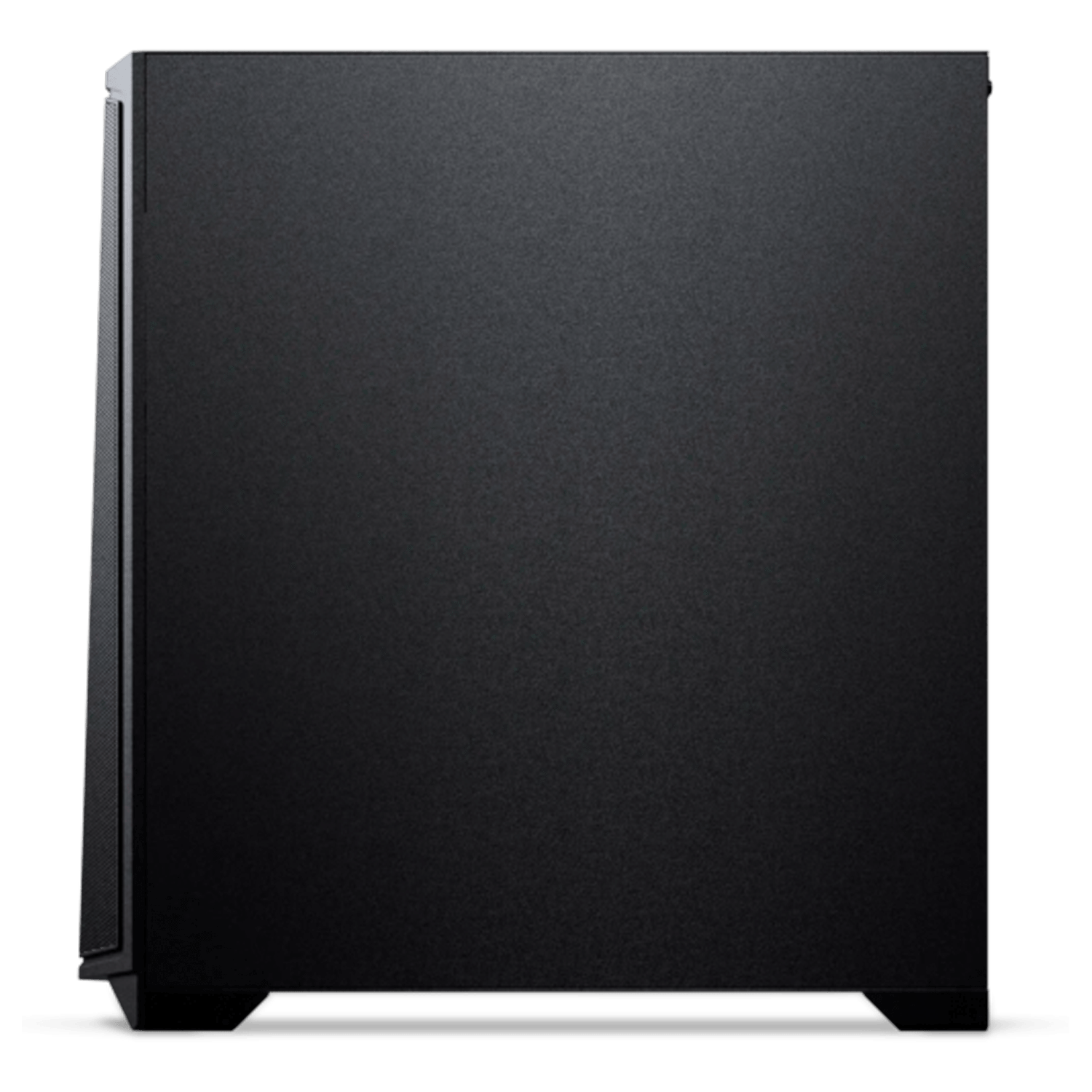

Eclipse G370A, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
- SKU: 19262950
- Manufacturer: PHANTEKS
- MPN: PH-EC370A_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$94.90
| General | |
| Model No. | PH-EC370A_DBK01 |
| UPC Code | 886523303930 |
| Case Dimensions | 465 x 476 x 220 mm | 18.30 x 18.74 x 8.66 in |
| From Factor | Mid-Tower |
| Mainboard Support | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 7 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions |
2 + 1x 3.5″ HDD |
| Internal 3.5″ Positions |
1 + 2x 2.5″ SSD |
| Front I/O |
1x USB 3.0 1x USB-C 3.0 1x Microphone | Headphone combo Power button Reset button |
| Fans 120 | 140 | |
| Total Fans | 7 | – |
| Top | 3 | – |
| Front | 3 | – |
| Rear | 1 | – |
| Bottom | – | – |
| Radiator 120 | 140 | |
| Top | Max. 360 | – |
| Front | Max. 240 | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler |
Height 170 mm | 6.69 in |
| GPU |
Length 375 mm | 14.76 in With front fans installed |
| GPU |
Width 170 mm | 6.69 in |
| Power Supply | 200 mm | 7.87 in |
| Top 360 Radiator |
Length x Width x Height 400 x 120 x 60 mm | 15.74 x 4.72 x 2.36 in |
| Extra | |
| Net Weight | 6.43 kg | 14.17 lbs |
| Gross Weight | 7.72 kg | 17.02 lbs |
| Warranty | 2 Years Limited |
| Scope of Delivery |
1x Eclipse G370A chassis 1x SSD bracket Pre-installed |
| Accessory Box |
6x Zip ties 1x Stand-off removal tool |
| Screws |
18x Mainboard | SSD screws 13x PSU | Chassis screws 4x HDD screws 4x HDD standoff 4x HDD rubber dampener 1x Mainboard stand-off |
