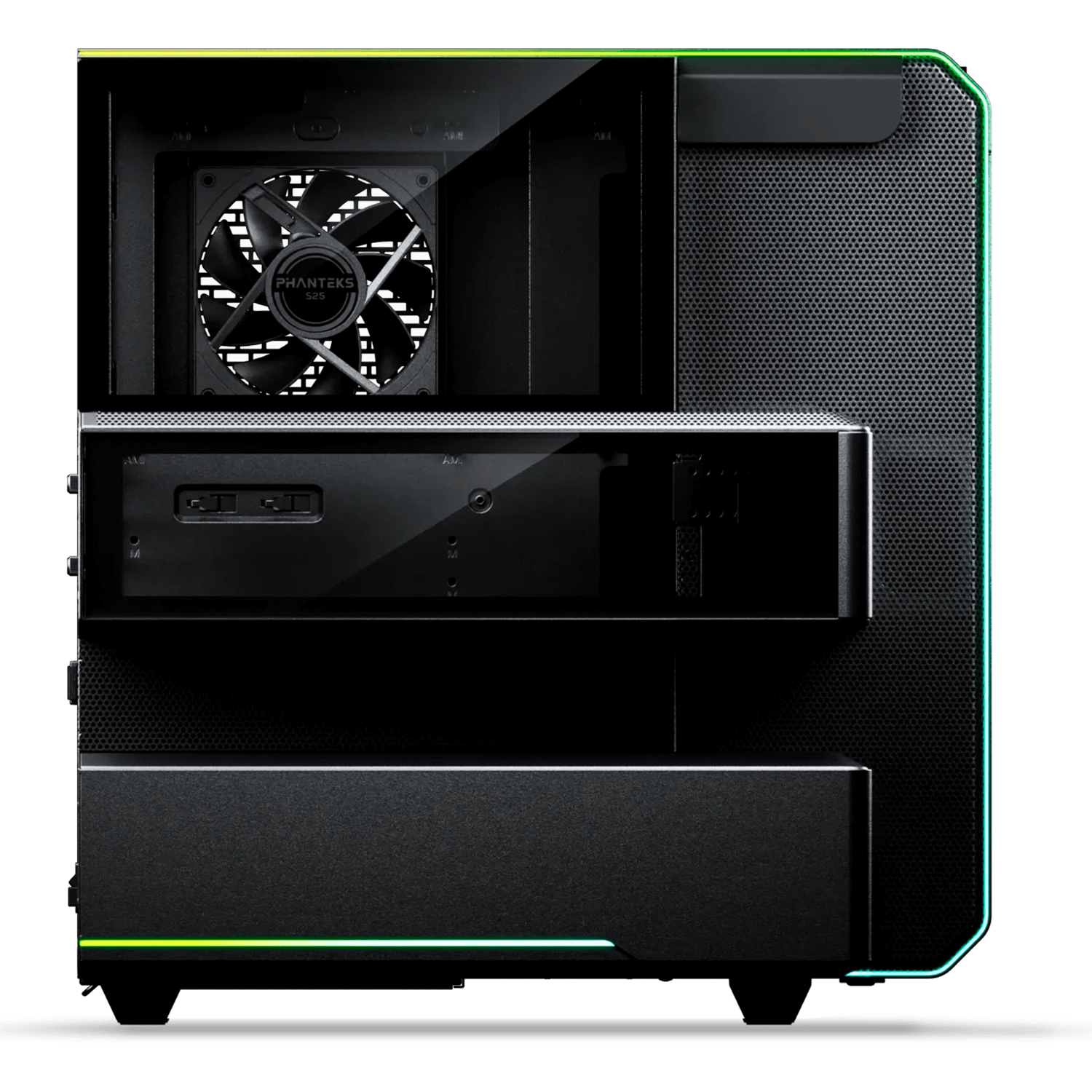

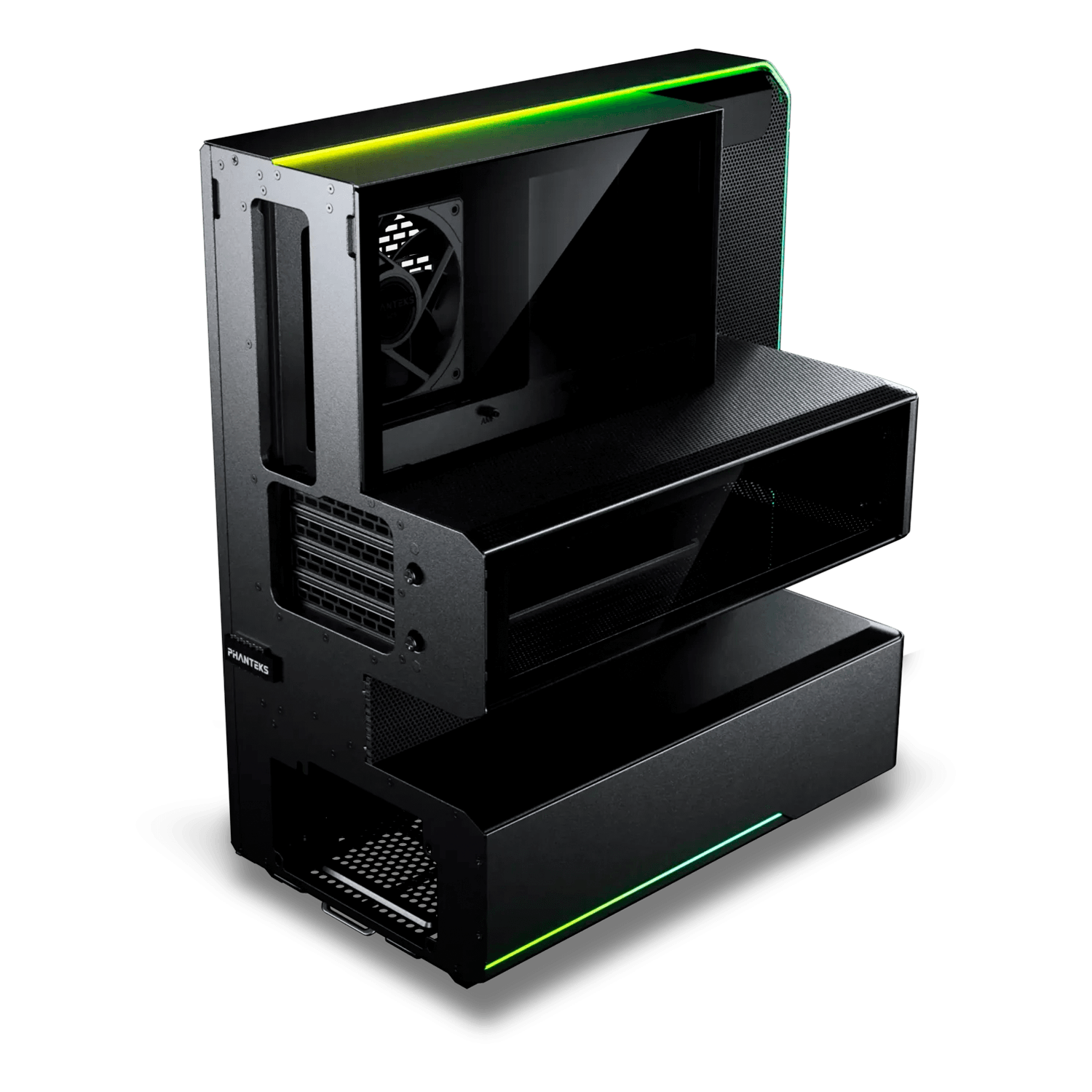

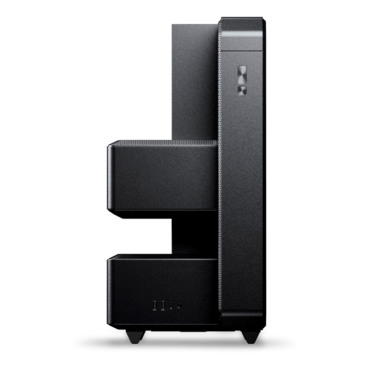

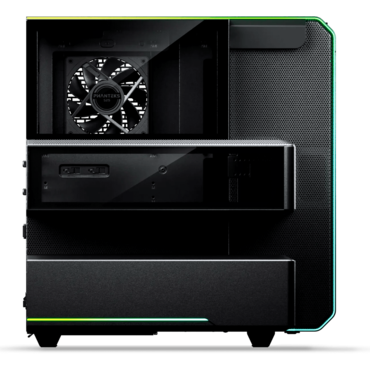

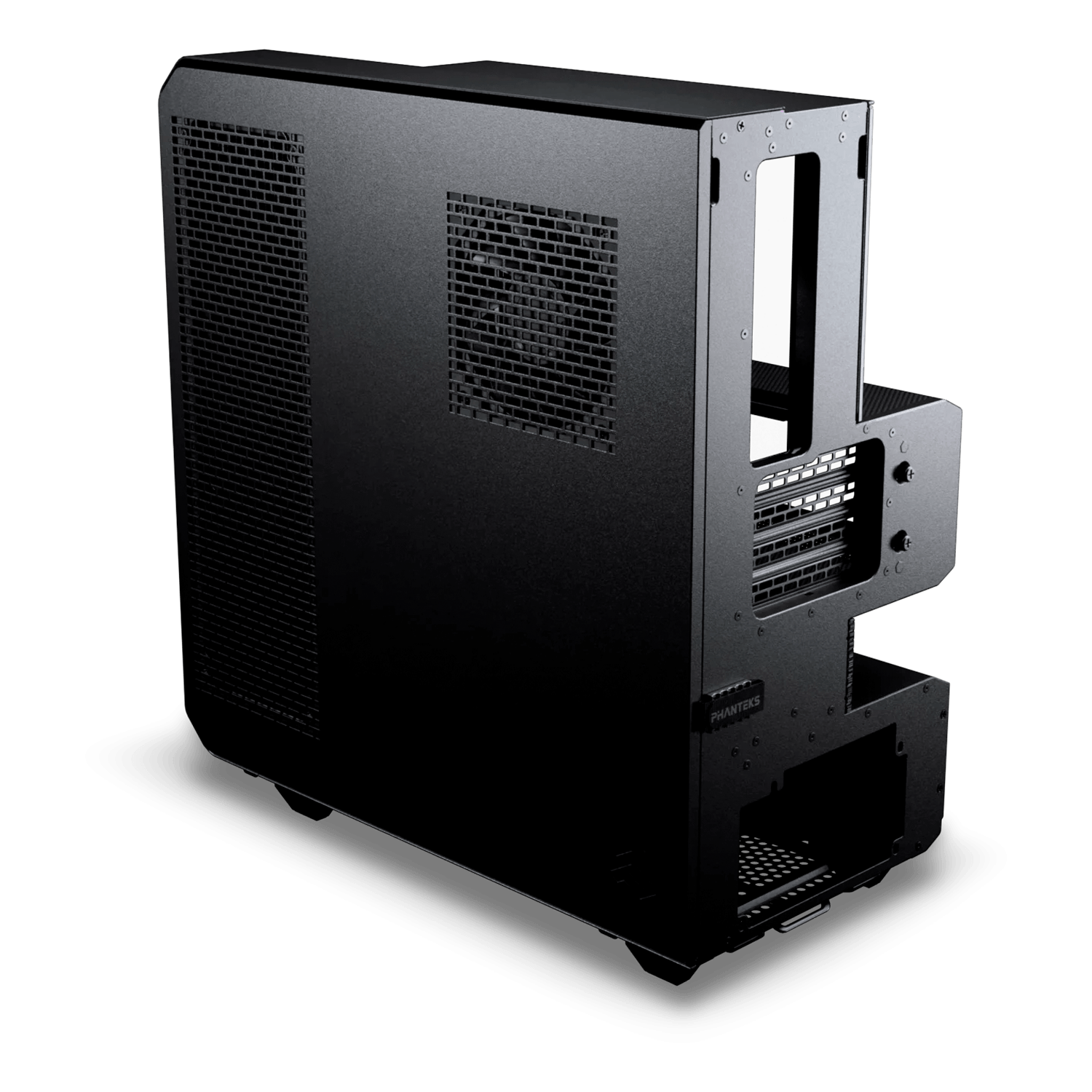

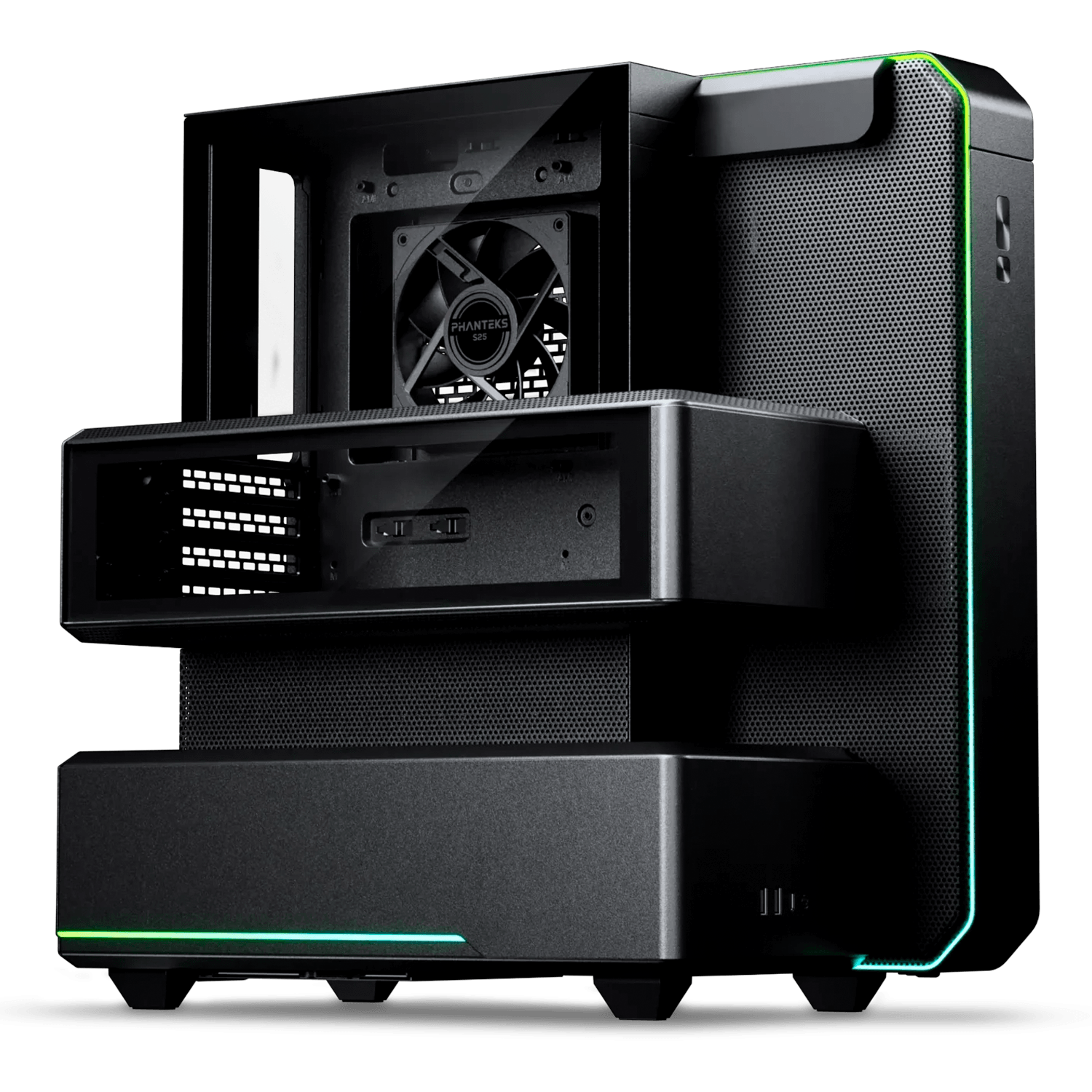

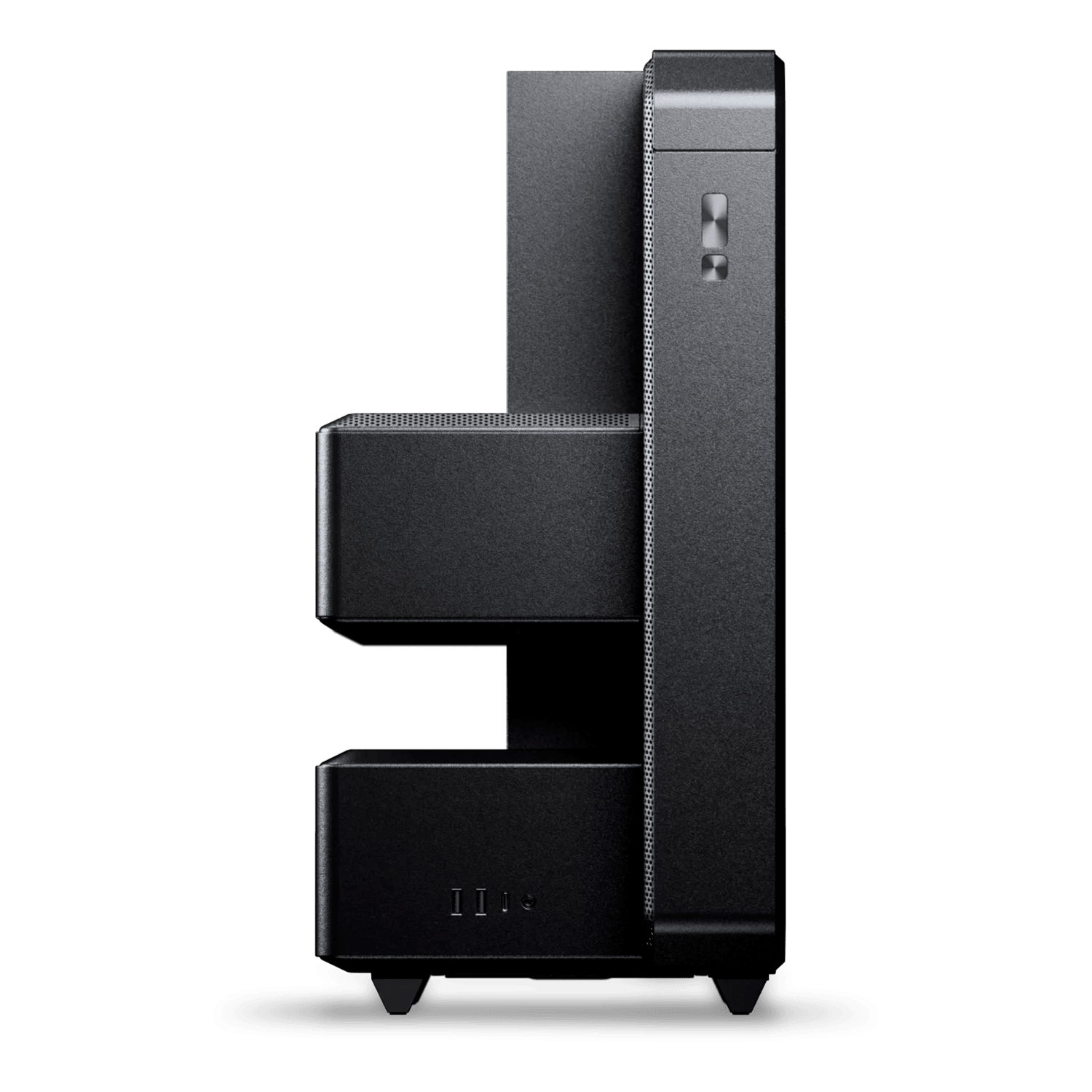

EX5-Plus, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 20455284
- Manufacturer: PHANTEKS
- MPN: PH-EX526P_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| General | |
| Model No. | PH-EX526P_DBK01 |
| UPC Code | 886523304739 |
| Case Dimensions | 449 x 234 x 474 mm | 17.67 x 9.21 x 18.66 in |
| From Factor | Mid-Tower |
| Mainboard Support | ATX | Micro-ATX | Mini-ITX |
| Materials | Steel panels | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 4 Starting from first slot position |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 1 + 1x 3.5″ HDD |
| Internal 3.5″ Positions | 1 + 1x 2.5″ SSD |
| Front I/O |
2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button |
| Fans 120 | 140 | |
| Total Fans | 4 | – |
| Top | – | – |
| Front | – | – |
| Side | 3+1 | – |
| Rear | – | – |
| Bottom | – | – |
| Radiator 120 | 140 | |
| Top | – | – |
| Front | – | – |
| Side | Max. 360 | – |
| Rear | – | – |
| Bottom | – | – |
| Clearance | |
| CPU Cooler | Height 72 mm | 2.83 in |
| GPU | Length 358 mm | 14.09 in |
| GPU | Width 175 mm | 6.88 in |
| Power Supply | Length 210 mm | 8.26 in |
| GPU PCI-slot 1 | Thickness 4.6 Slots 93 mm | 3.66 in |
| GPU PCI-slot 2 | Thickness 3.6 Slots 73 mm | 2.87 in |
| GPU PCI-slot 3 | Thickness 2.6 Slots 53 mm | 2.08 in |
| Side 360 Radiator |
Length x Width x Height 413 x 134 x 60 mm | 16.25 x 5.27 x 2.36 in |
| Extra | |
| Net Weight | 9.35 kg | 20.61 lbs |
| Gross Weight | 11.06 kg | 24.38 lbs |
| Warranty | 5 Years Limited Learn more |
| Scope of Delivery |
1x EX5-Plus chassis 1x HDD bracket Pre-installed 1x SSD bracket Pre-installed |
| Accessory Box |
6x Zip ties 1x Stand-off removal tool 1x ARGB mainboard adapter 80 mm |
| Screws |
14x Mainboard | SSD screws 4x Power supply | GPU bracket screws 8x HDD screws 1x Mainboard stand-off 1x GPU bracket 241-308 mm 1x GPU bracket 275-358 mm |
