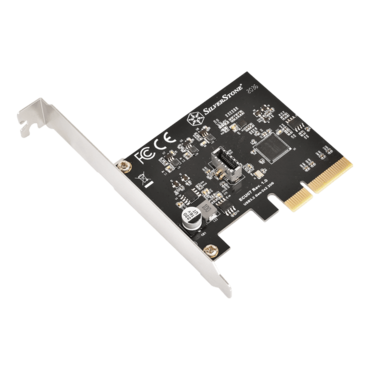

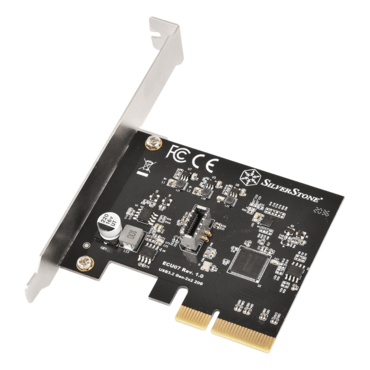

ECU07, 1 x USB-C Type-E Connector to PCI Express 3.0 x4 Add-On Card
Quantity:
- SKU: 14607892
- Manufacturer: SILVERSTONE
- MPN: SST-ECU07
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$71.29
ECU07, 1 x USB-C Type-E Connector to PCI Express 3.0 x4 Add-On Card
SilverStone ECU07 (SST-ECU07). SuperSpeed USB 20Gbps / internal USB-C Key-A 3.2 Gen 2x2 PCIe expansion card.
- SuperSpeed USB 20Gbps
- Internal USB Type-C Key-A connector
- PCI Express Gen3 x4 lanes, transfer rate up to 32GT/s
- Compliant with PCI Express Base 3.1a specification.
- Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

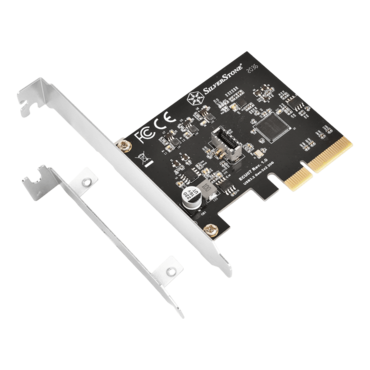

- Includes optional low profile slot cover for supporting low profile cases
| Model No. | SST-ECU07 |
| Power requirement | PCI Express bus power |
| Form factor | Low profile – PCI Express Gen 3 x4 (32GT/s) |
| USB Ports | Internal USB 3.2 Gen 2x2 Type-C Key-A connector |
| USB 3.2 controller | ASMedia ASM3242 |
| Transmitting Speed | USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2x1 (10Gbps), USB 3.2 Gen 1 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps) |
| Operating system support | Windows 8-10, Windows Server 2016-2019, Mac10.X, Linux OS* in-box xHCI driver natively support UASP, no additional driver required |
| Power Management | Support USB 3.2 and USB 2.0 link power management |
| Extra | UASP and Multiple INs function |
| Current protection | Support over current detection |
| Operation Temperature |
Operating temperature range: 0 ~ 85 ºC Storage temperature range: -20 ~ +70 ºC Humidity range: 5 ~ 95% RH |
| Net weight | 47g |
| Dimension |
123mm(W) x 21mm(H) x 105mm(D) 4.84" (W) x 0.83" (H) x 4.13" (D) |
