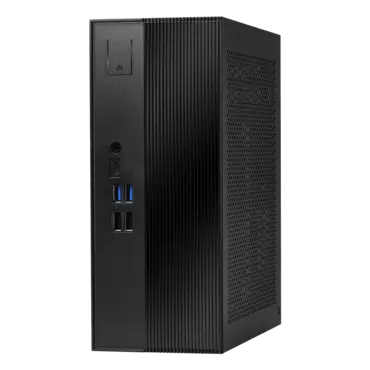

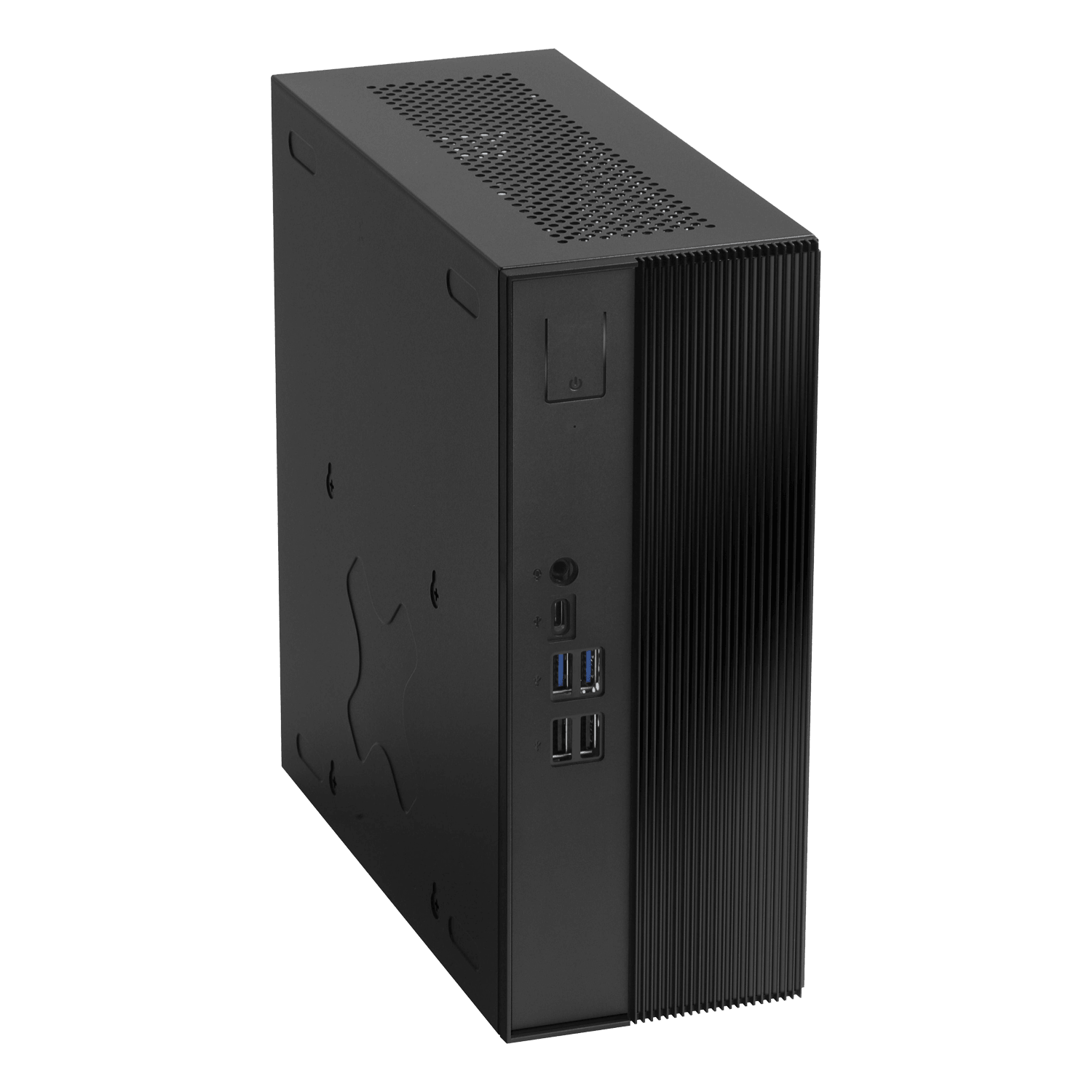

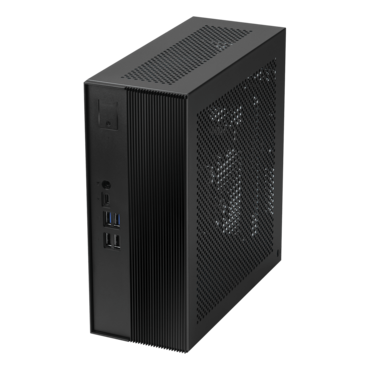

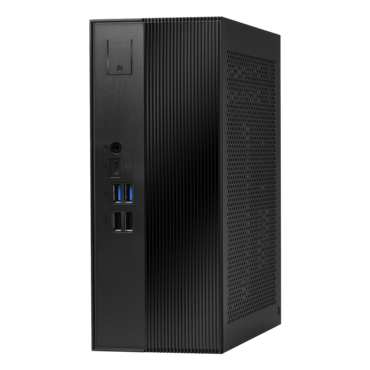

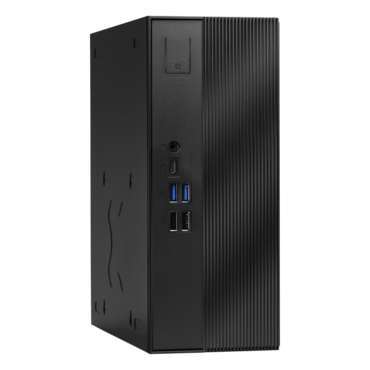

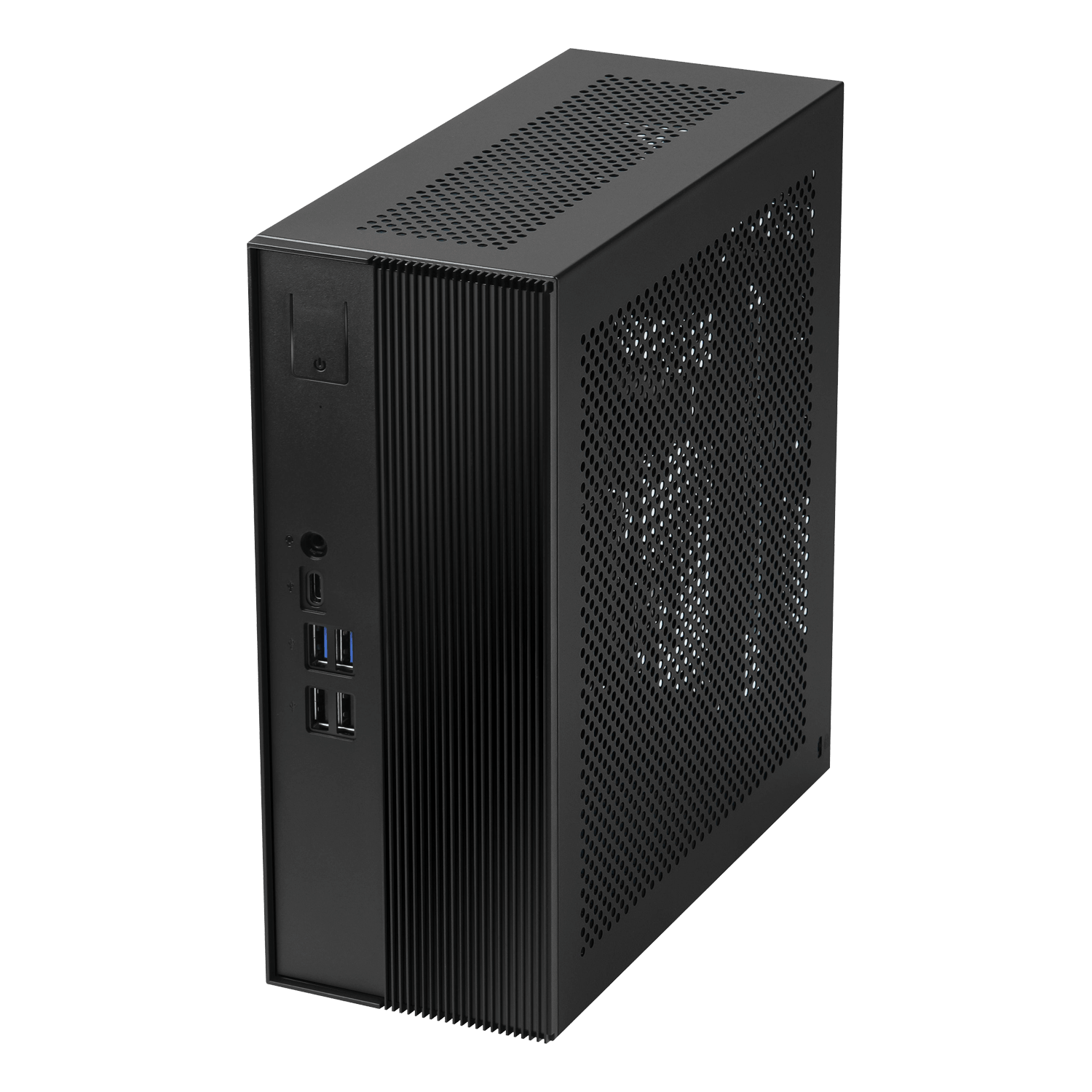

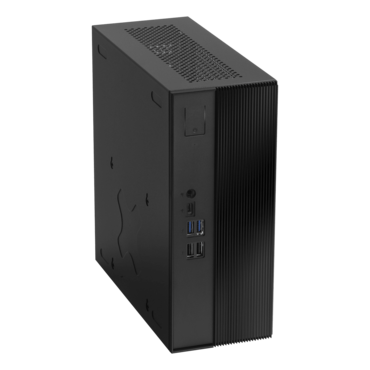

DeskSlim B760W, Intel® B760 Chipset, 4x DDR5 DIMM Memory, 2x M.2 SSD, 2x 2.5" HDD/SSD, 240W/19V Power Adapter & Power Cord, 5L Slim PC Barebone
- SKU: 20356768
- Manufacturer: ASROCK
- MPN: DESKSLIM B760W
- Availability: TEMPORARILY OUT OF STOCK
- 5L Mini PC
- CPU: Supports Intel® Core™ 14th / 13th / 12th Gen processors (LGA1700), up to 125W
- Memory: 4 x DDR5 DIMMs, up to 7200+ MHz (OC), 256GB
- Graphics: 1 x PCIe 5.0 x16 slot for low-profile dual-slot discrete GPU support
- Triple Display Output:
2 x DisplayPort (8K@60Hz)
1 x HDMI (4K@60Hz) - Quad Storage Devices:
2 x SATA 6Gb/s Ports
2 x M.2 2280 Slot for PCIe Gen4x4 SSD -
Abundant USB Ports:

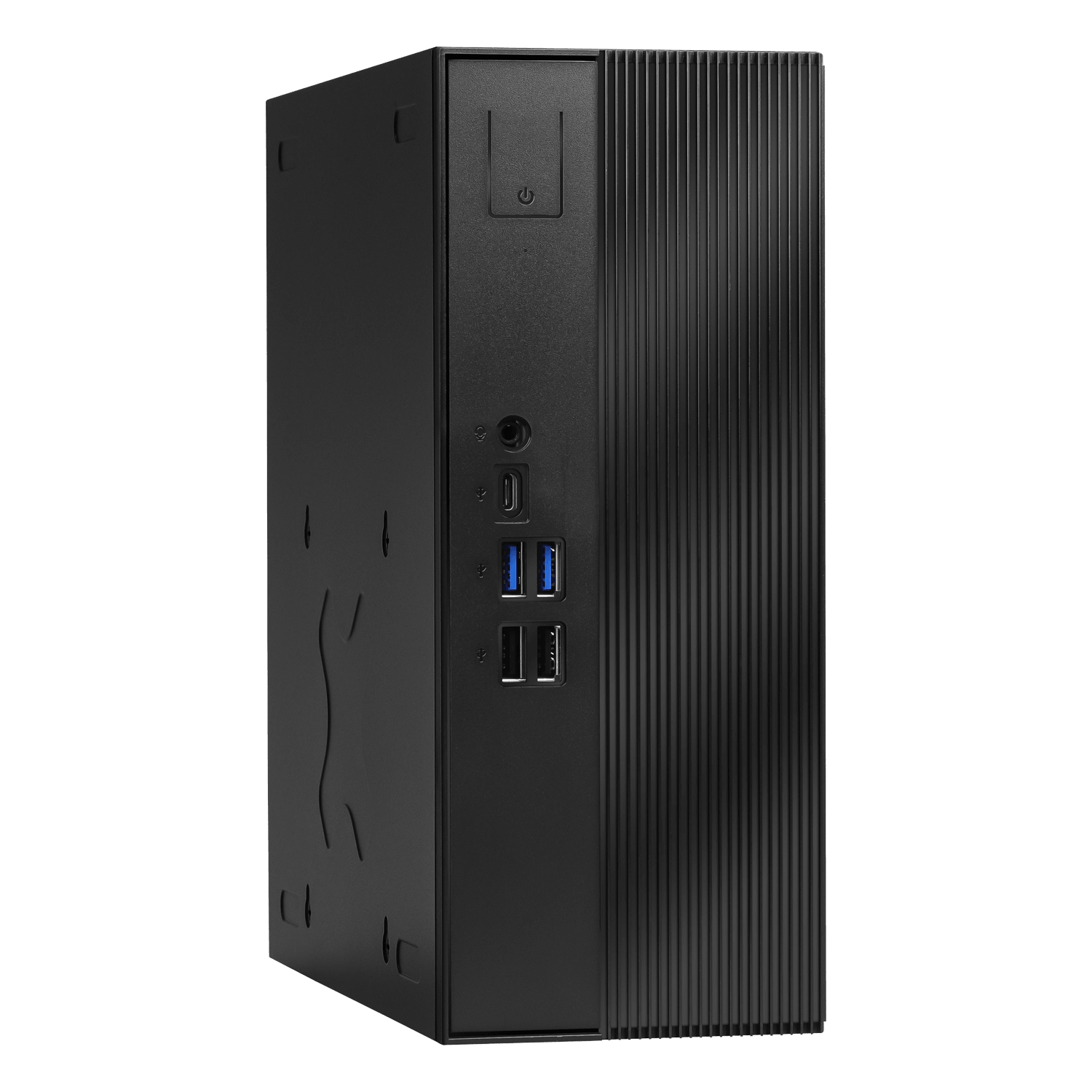

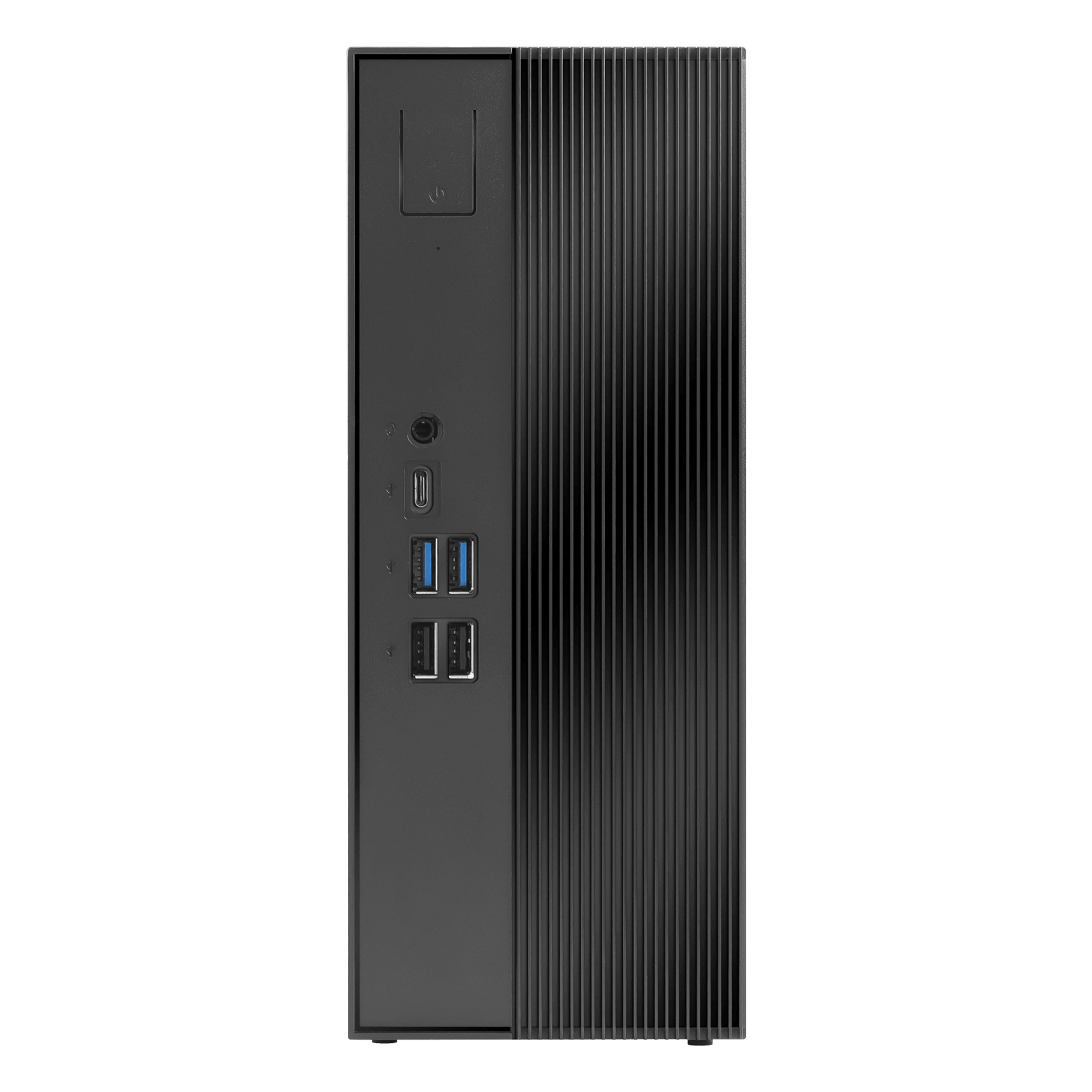

Front I/O:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

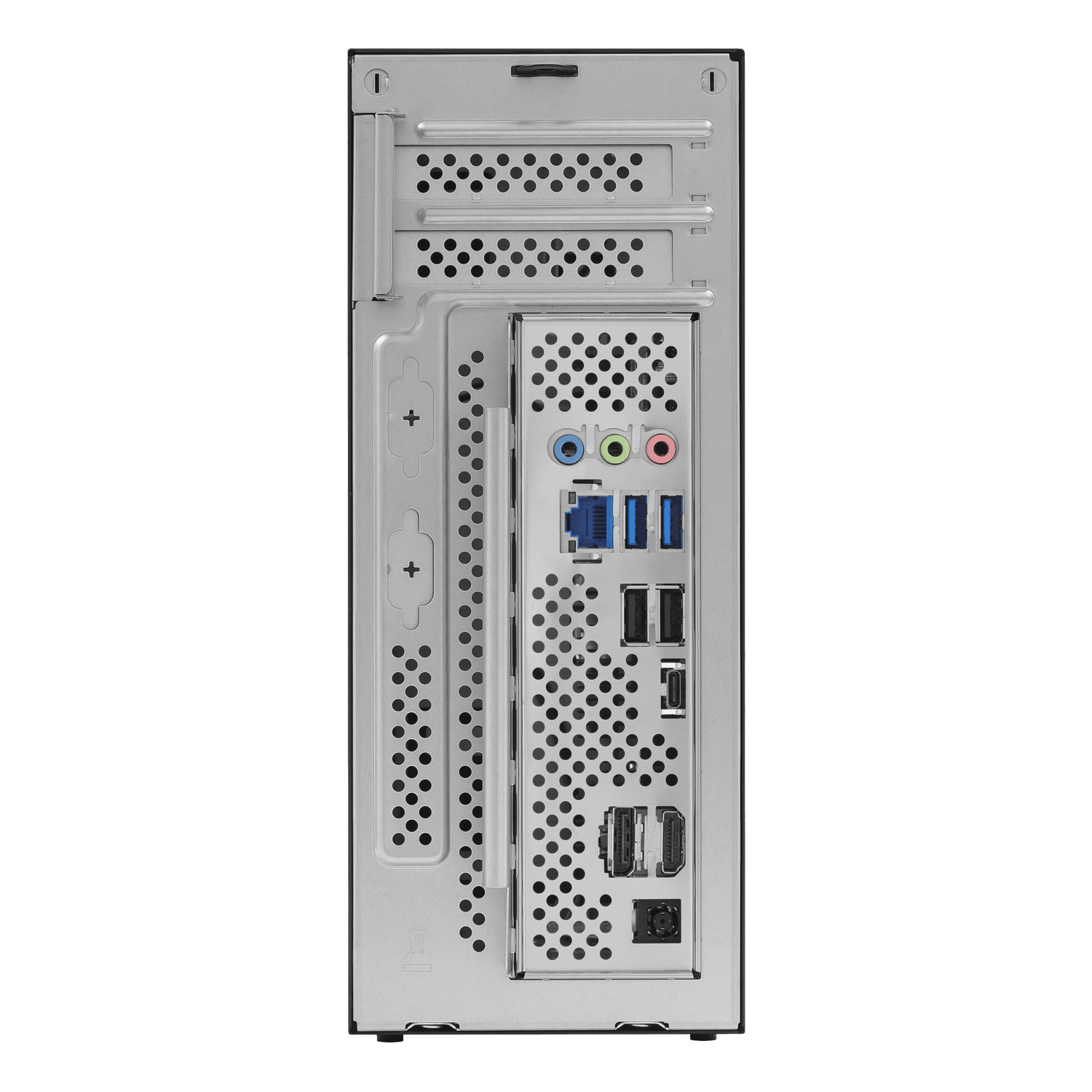

Rear I/O:
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A - Networking: 1 x 2.5G LAN
- Wireless Expansion: 1 x M.2 Slot for Wi-Fi Module
| CPU | - Supports 14th/13th/12th Gen Intel® Core™ Processors, up to 125W |
| Chipset | - Intel® B760 |
| Cooler | - Supports Intel® CPU Cooler (Max. Height ≦ 71mm) |
| Memory |
- Supports Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM slots (Max. 256GB) -14th and 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 7200+(OC) -12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800 *Please refer to Memory Support List on ASRock's website for more information.
|
| Graphics |
- Up to 200 mm (L) × 70 mm (H) × 38 mm (T); 6 mm backplate
*Height is measured from the PCIe gold fingers; thickness is measured from the rear of the graphics
card PCB.
|
| Graphics Output | - 2 x DisplayPort 1.4 - 1 x HDMI |
| Audio | - Realtek ALC897 Audio Codec |
| Front USB | - 1 x USB 3.2 Gen1 Type-C - 2 x USB 3.2 Gen1 Type-A - 2 x USB 2.0 |
| Rear USB | - 2 x USB 2.0 - 2 x USB 3.2 Gen1 Type-A |
| Storage | - 2 x SATA 6Gb/s Ports - 2 x M.2 2280 Slot for PCIe Gen4x4 SSD |
| LAN | - 1 x 2.5G LAN Port |
| Expansion Slots | - 1 x PCIe Gen5x16 Slot - 1 x M.2 2230 slot for Wi-Fi/BT module and Intel® CNVi |
| Connectors |
- 1 x Chassis Intrusion Header - 1 x Addressable LED Header* - 1 x CPU Fan Connector** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 8 pin 12V Power Connector - 1 x Front Panel Header - 2 x SATA Power Connectors - 1 x USB 2.0 Header (Supports 1 USB 2.0 port) (Supports ESD Protection)
*Supports in total up to 5V/3A, 15W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| Accessory |
- 2 x SATA Cables - 2 x SATA Data with Power Cables - 2 x Screws for M.2 Sockets - 1 x Screw for WiFi Module - 4 x VESA Screws - 1 x 240W/19V power adapter |
| Dimension | - 95 x 235 x 220 mm |
| OS | - Microsoft® Windows® 11 64-bit |
