D1500(D1500GB2N-1G), Intel® C262, LGA 1700, DDR5-4800 128GB ECC/non-ECC UDIMM / 4, VGA, M.2, USB 3.2 Gen1 / 4, 1GbLAN / 2, microATX Retail
Quantity:
- SKU: 18392252
- Manufacturer: MSI
- MPN: D1500GB2N-1G
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$439.00
| Form Factor | Micro-ATX |
| Dimensions | 243.84mm(9.6") x 243.84mm(9.6") |
| Processor |
Single Intel®Xeon®E-2400 processor, up to TDP 95W Intel Pentium®G7400/G7400T, TDP up to 46W |
| Socket | (1) Intel®Socket LGA1700 |
| Chipset | Intel®C262 |
| Memory |
(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM - Max. Frequency 4800MT/s (1DPC) and 3600MT/s (2DPC) - Max. Capacity per DIMM: 32GB |
| Storage |
(1) SlimSAS 4i for (1) PCIe4.0 x4 NVMe or (4) SATA3.0 (1) SlimSAS 4i for (4) SATA3.0 (1) M.2 2280/22110 PCIe4.0 x4 |
| Expansion Slot |
(1) PCIe 5.0 x16 slot from CPU (1) PCIe 4.0 x8 slot (x4 signal) from CPU |
| Networking |
(2) 1000Base-T Ethernet Ports (Intel® I210AT) *JLANCONN1 (L) supports NCSI |
| RAID | Intel®SATA RAID 0/1/10/5 |
| Graphics | (1) D-Sub 15-pin port from the integrated AST2600 BMC |
| USB |
(6) USB3.2 Gen1 Ports (1) USB2.0 Port |

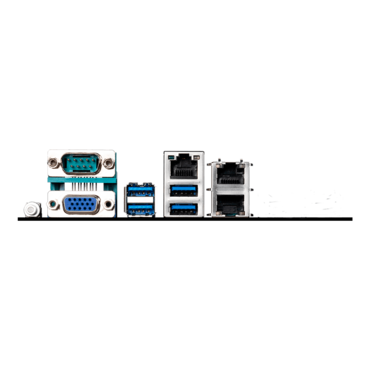

| Rear I/O |
(2) 1000Base-T Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button |
| Internal I/O |
(1) USB3.2 Gen1 x2 header (1) USB2.0 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB headers (1) GPIO header (1) PMBus header (7) 4-pin PWM FAN header |
| Power Connector |
(1) 24-pin ATX power connector (1) 8-pin 12V power connector (1) 4-pin power connector for HDD BP |
| TPM | (1) TPM header with SPI interface |
| Server Management |
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API |
| Environment |
Operating Temperature: 0°C ~ 40°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification | CE, FCC (Class A) |
| Package Contents |
(1) Quick guide (1) D1500 motherboard (1) I/O shield (1) Slimline-4i to (4) 7-pin SATA fanout cable |
| Optional parts | TPM2.0 module: TPM20-IR |
