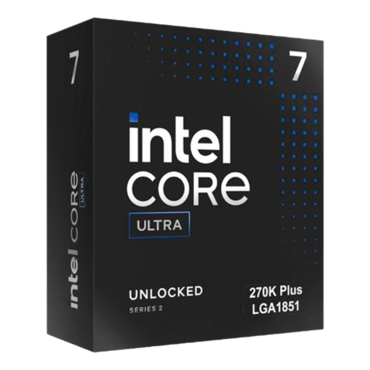

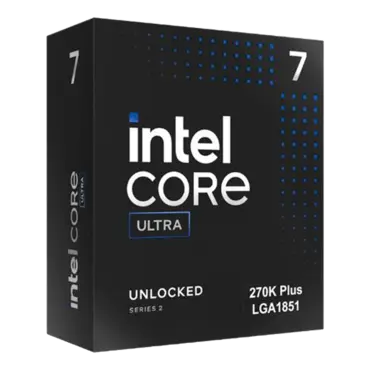

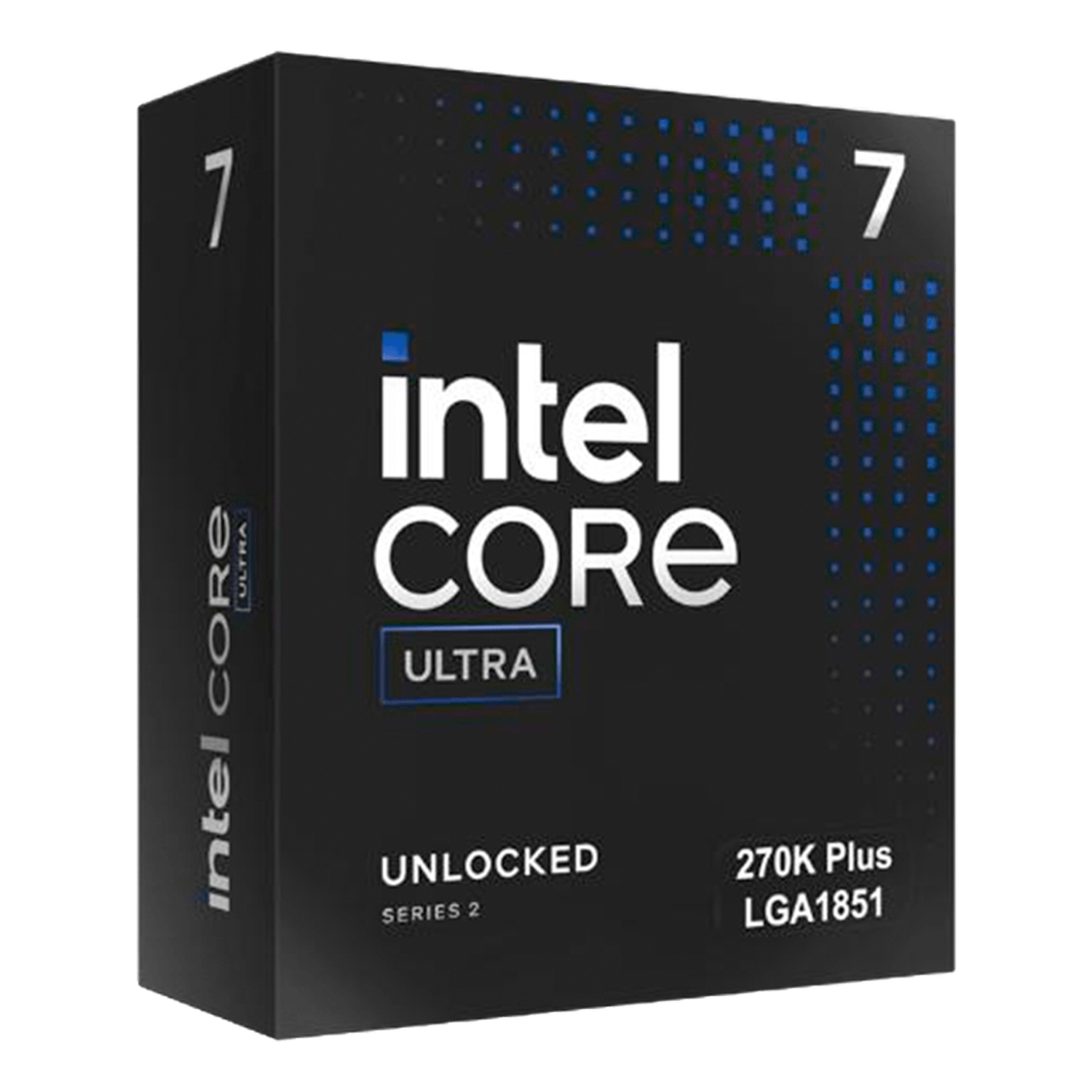

Core™ Ultra 7 270K Plus 24 (8P+16E) Cores 3.2 - 5.5GHz Turbo, LGA 1851, 250W MTP, Retail Processor
- SKU: 19948890
- Manufacturer: INTEL
- MPN: BX80768270K
- Availability: LOW STOCK
| Essentials | |
| Product Collection | Intel® Core™ Ultra Processors (Series 2) |
| Code Name | Products formerly Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 270K Plus |
| Overall Peak TOPS (Int8) | 36 |
| CPU Specifications | |
| Total Cores | 24 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 16 |
| # of Low Power Efficient-cores | 0 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.5 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.5 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.7 GHz |
| Performance-core Base Frequency | 3.7 GHz |
| Efficient-core Base Frequency | 3.2 GHz |
| Cache | 36 MB Intel® Smart Cache |
| Total L2 Cache | 40 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 250 W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q1'26 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet, Workstation |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256 GB |
| Memory Types | Up To DDR5 7200 MT/s |
| Max # of Memory Channels | 2 |
| ECC Memory Supported ‡ | Yes |
| GPU Specifications | |
| GPU Name‡ | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 2 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
| Xe-cores | 4 |
| Max Resolution (HDMI)‡ | 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) 7680 x 4320 @ 60Hz (HDMI 2.1 FRL) |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 3840 x 2400 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| H.264 Hardware Encode/Decode | Yes |
| H.265 (HEVC) Hardware Encode/Decode | Yes |
| AV1 Encode/Decode | Yes |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x7D67 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
| AI Software Frameworks Supported by GPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU |
| NPU Specifications | |
| NPU Name‡ | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | 1x16+2x4, 2x8+2x4, 1x8+4x4 |
| Max # of PCI Express Lanes | 24 |
| Package Specifications | |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2020A |
| Max Operating Temperature | 105 °C |
| Package Size | 45 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel vPro® Eligibility ‡ | Intel vPro® Enterprise |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Remote Platform Erase (RPE) ‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
