| Technical Specifications |
| Motherboard |
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers |
- Up to 153mm tall
- RECOMMENDED CPU COOLERS: Noctua D9L, Thermalright SI-100, Thermalright Silver Soul 110, or ID-COOLING IS-67-XT
|
| CPU Liquid Coolers |
- Supports one(1) 360mm liquid cooler, one(1) 240mm liquid cooler, or two(2) 120mm liquid coolers
- Maximum radiator length of 395mm supported
- Case is designed around Asetek OEM AIO coolers
-
Third party AIO cooler compatibility can be checked against
this dimensioned drawing.
- Compatibility with AIO liquid coolers on GPUs is limited by case height.
|
| Fan Mounting |
- Mid Chassis
- Three(3) 120mm fan mounting spots, up to 38mm thick
- Up to five(5) 120mm x 25mm fans when using 240mm radiator with push/pull fan configuration
- Up to six(6) 120mm x 25mm fans when using 360mm radiator with push/pull fan configuration
-
RECOMMENDED 120mm FANS: Noctua A12x25 PWM or Noctua A12x25 Chromax Black, Arctic P12 MAX, Phanteks T30,Corsair RS120 MAX, Lian Li UNI Fan P28, Lian Li UNI Fan SL-Infinity, or any
fan from Dynatron.
- Rear
- Optional bracket for one(1) 120mm fan over motherboard IO shield
- Optional bracket for one(1) 120mm fan blowing down onto PCIe cards
- Adapters for connecting fans to the PCIe slot can be purchased separately.
|
| GPU / PCIe Cards |
- Eight(8) full height PCIe card slot cutouts
- Maximum card height: 158mm - including power connectors
- Maximum card length with three(3) Noctua A12x25 fans: 337mm
- Maximum card length with Asetek 360mm AIO and three(3) Noctua A12x25 fans: 309mm
- Maximum card length with Asetek 360mm AIO and six(6) Noctua A12x25 fans: 285mm
- Maximum card length with no fans / no AIO cooler: 362mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
| 5.25" Bays |
- Two(2) 5.25" bays with removable filler blank
- 5.25" to 3.5" adapter available for purchase on the parts tab
|
| Storage |

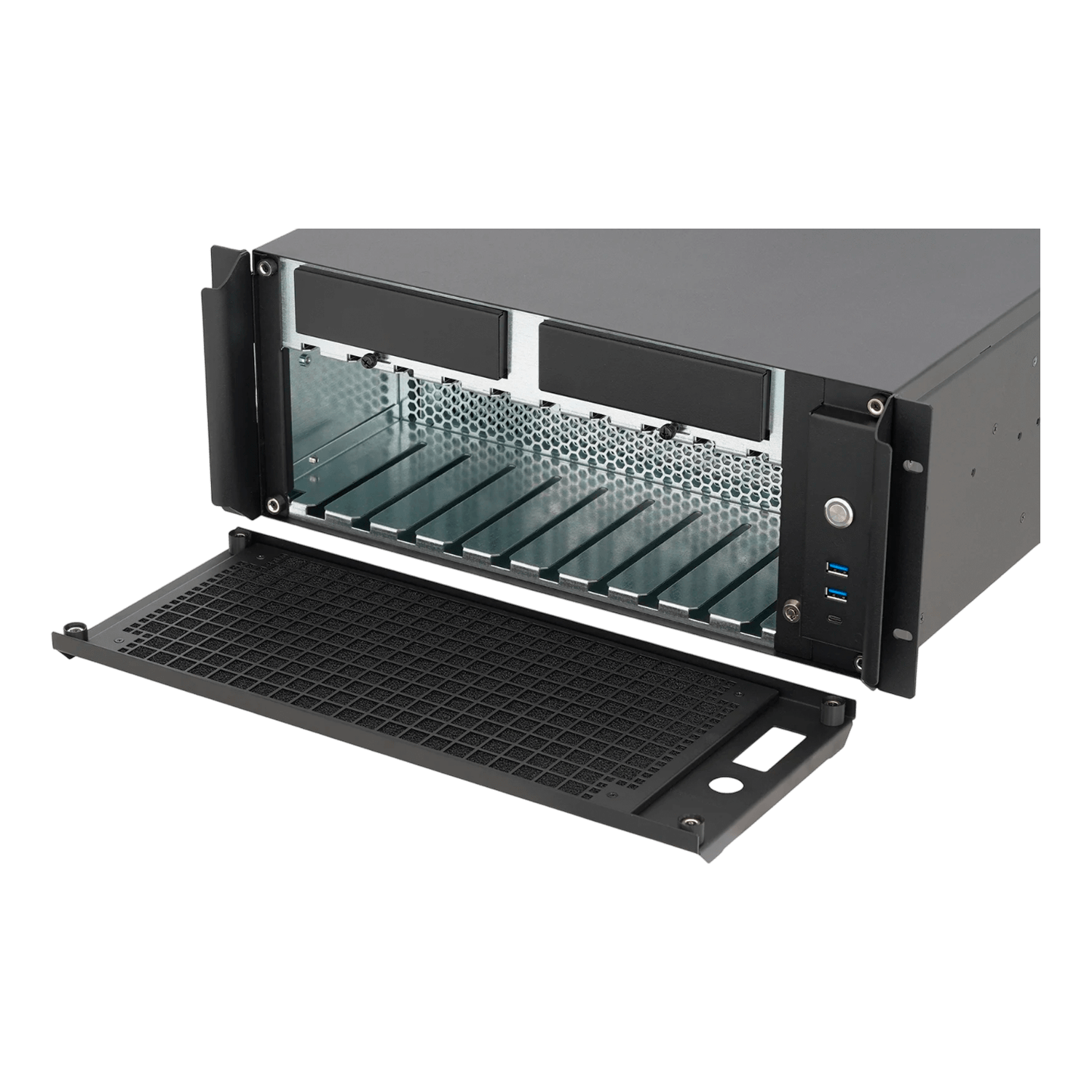

- Ten(10) 3.5" SAS or SATA Hard Drive Disks
- Case includes ten(10) SATA/SAS SFF-8482 male to SATA female adapters (preinstalled in case)
- Four(4) shoulder screws attached to 3.5" HDDs
- These shoulder screws guide HDDs through slots and align the drive to a backplane mounted SATA to SATA adapter
- User must connect SATA data and power cables on inside of case to these SATA to SATA adapters
- Case has a locking mechanism and key, as well as thumb screws, to secure drives
- Case also includes two(2) SATA power distribution cables (1x SATA power male to 5x SATA power female)
- Case does NOT include any data cables
- Hot-swap support can depends on your HBA / RAID card, motherboard, and OS.
- Please note that connecting a SAS drive to a SATA port will operate as SATA.
- A SAS controller can control SATA drives, but a SATA controller cannot control SAS drives.
- Four(4) 2.5" SSD/HDD mounting points (behind power button and USB front panel area)
- Two(2) 2.5" SSD up to 7mm thick, or one(1) 2.5" SSD up to 15mm thick
- Two(2) 2.5" SSD mounting points are located on rear of case above ATX PSU cutout
- NOTE: use of the rear 120mm exhaust fan bracket blocks these 2.5" SSD mounting spots
- Each 5.25" bay filler blank provides mounting for two(2) 2.5" SSD and one(1) 3.5" HDD
- Without third party devices the default case has a maximum storage of twelve(12) 3.5" HDD and ten(10) 2.5" SSD
- Internal Drive Bay Converter Mounting Bracket
- ORICO Converter Mounting Bracket
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
|
| Front Panel I/O |
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
| Power Supply |
- ATX
- Maximum length 268mm - including connectors
- Redundant Power
- ATX form factor FSP Twins Pro 900W or the identical / rebadged Silverstone Gemini 900W
- Optional adapter bracket kit for installing 2U CRPS power supplies is available on request.
- Retail CRPS PSUs: SilverStone Gemini 800W 2U CRPS or Athena Power 1200W
- Built-To-Order 2U CRPS PSUs are available up to 2400W from FSP Group or Zippy Power
|
| Rack Rails |
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
| Warranty |
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Rev Control |
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
| Case Mechanicals |
| Material |
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish |
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding |
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
| Outside Dimensions |
- 25.04" x 17.00" x 4U (6.96") [DxWxH]
- 636mm x 432mm x 176.75mm [DxWxH]
- Depth from front rack post is 24.89" [632mm]
|
| Weights |
- Chassis
- 31.5lbs [14.29kg]
- Rack Slide Kits
- GDRAIL-14XX - 5.3lbs [2.4kg]
- GDRAIL-20XX - 6.65lbs [3.02kg]
- GDRAIL-26XX - 8.75lbs [3.97kg] - Will Ship In Separate Box
- Fans
- Three(3) fans - 2.1lbs [.95kg] total - .7lbs per fan
- Five(5) fans - 3.5lbs [1.59kg] total
- Six(6) fans - 4.2lbs [1.95kg] total
- Coolers
- Asetek 612X-M2 120mm AIO - 1.7lbs [.77kg]
- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Asetek 636S-M2 360mm AIO - 1.9lbs [.86kg]
- Asetek 836SA 360mm Threadripper AIO - 2.35lbs [1.07kg]
- Retention kits - .25lbs [.11kg]
- Brackets
- Rear Fan - .25lbs [.11kg]
- Rear Fan w/ A12x25 - .95lbs [.43kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 4.75lbs [2.15kg]
|
| Shipping |
- 20.5" x 31.5" x 11.5" (Shipping Box Outside Dimensions)
- 20" x 31" x 11" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
