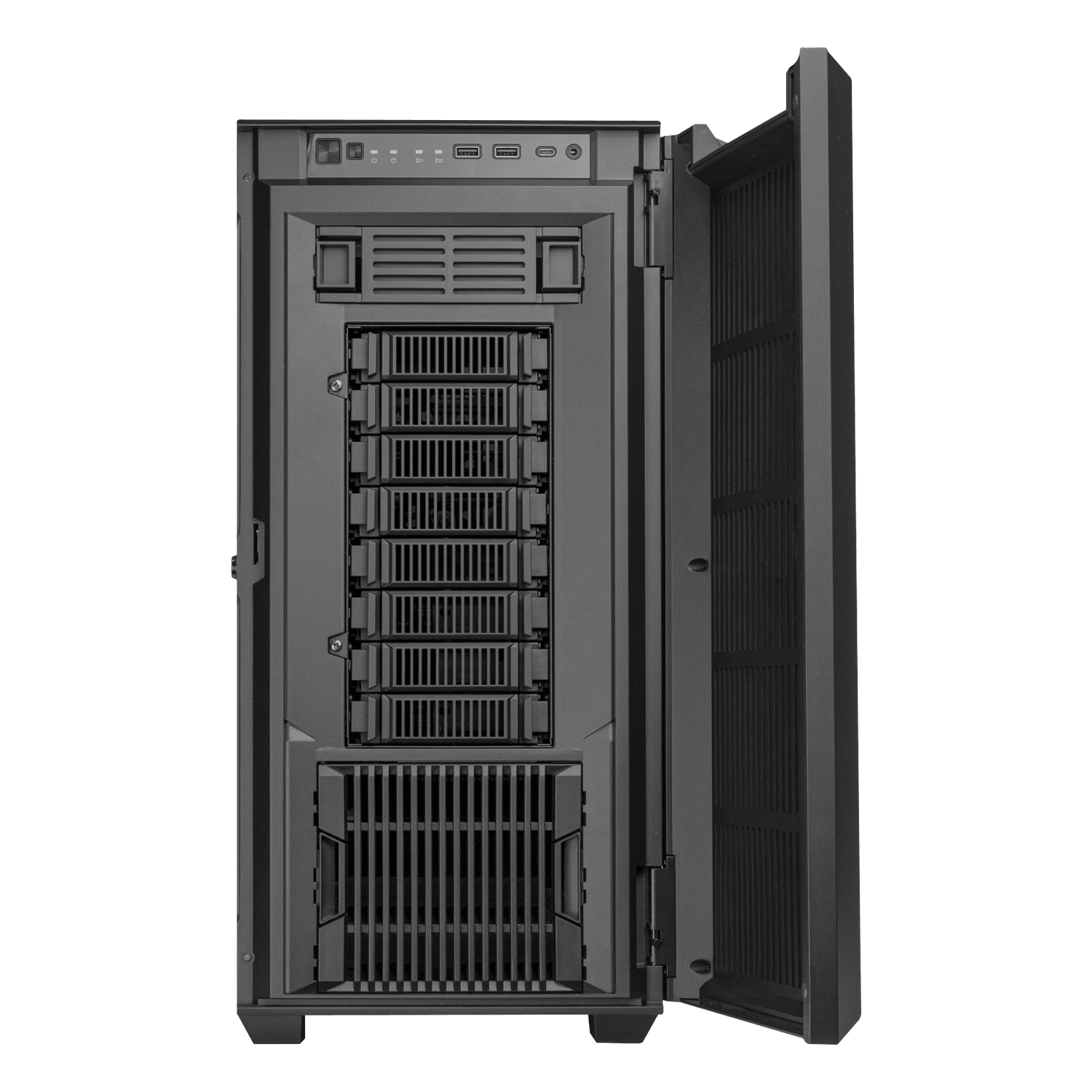

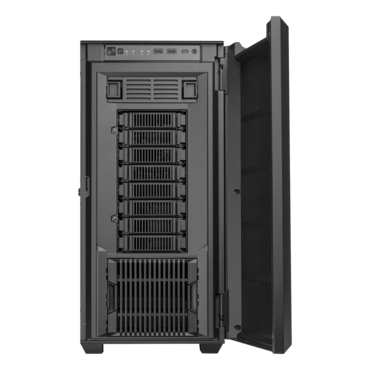

- 8 hot-swappable drive trays to accommodate up to 8 x 3.5” or 2.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status

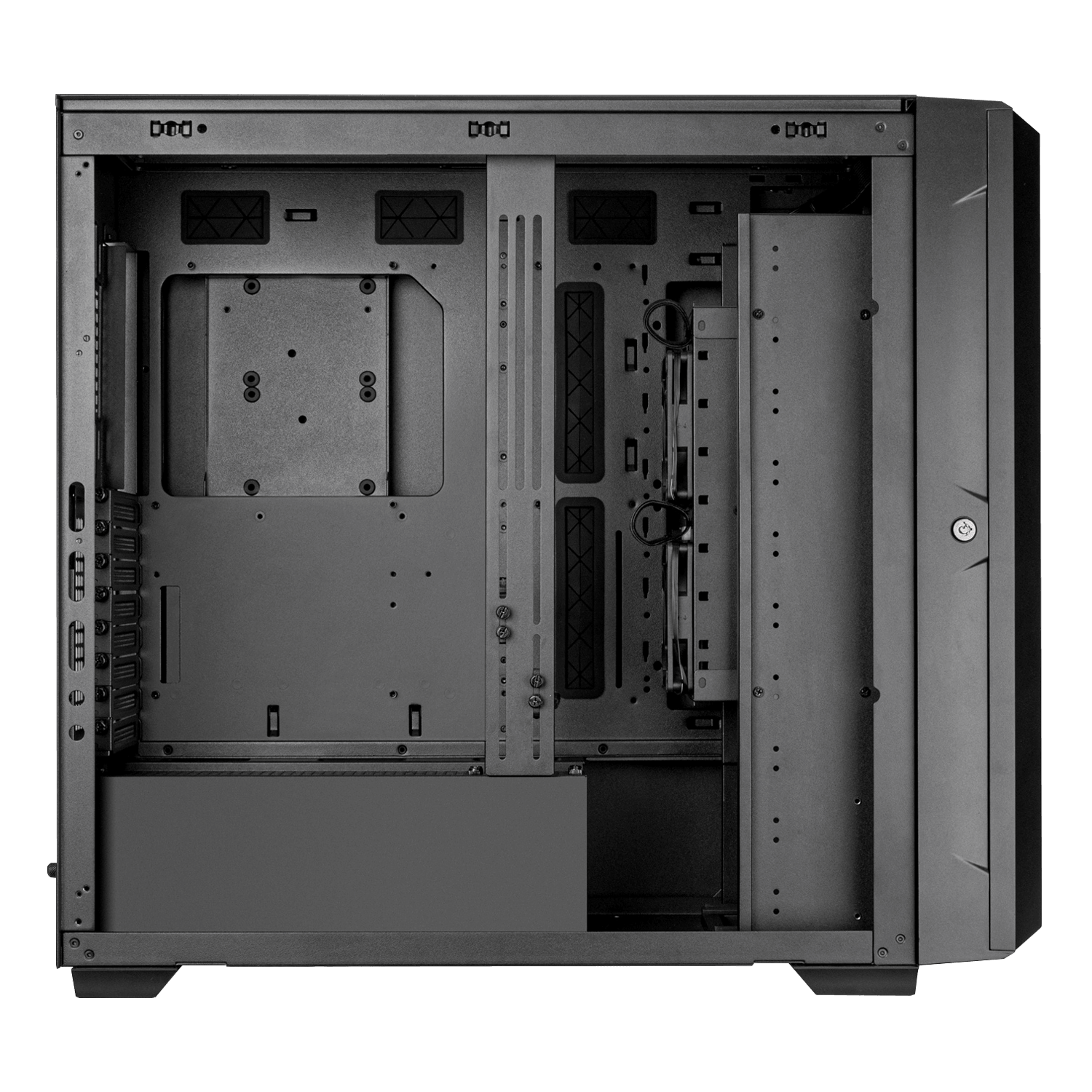

- Supports E-ATX / SSI-EEB motherboards
- Compatible with 420mm liquid cooling radiator
- Flexible front expansion slot for 3 x 5.25” devices or secondary PSU slot [3]
- Support a maximum length of 340mm expansion/interface cards
- Support multiple graphics cards configuration with 8 PCI expansion slots
- Additional 3.5” x 1 + 2.5” x 2 or 2.5” x 4 device compatibility internally.
- Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio

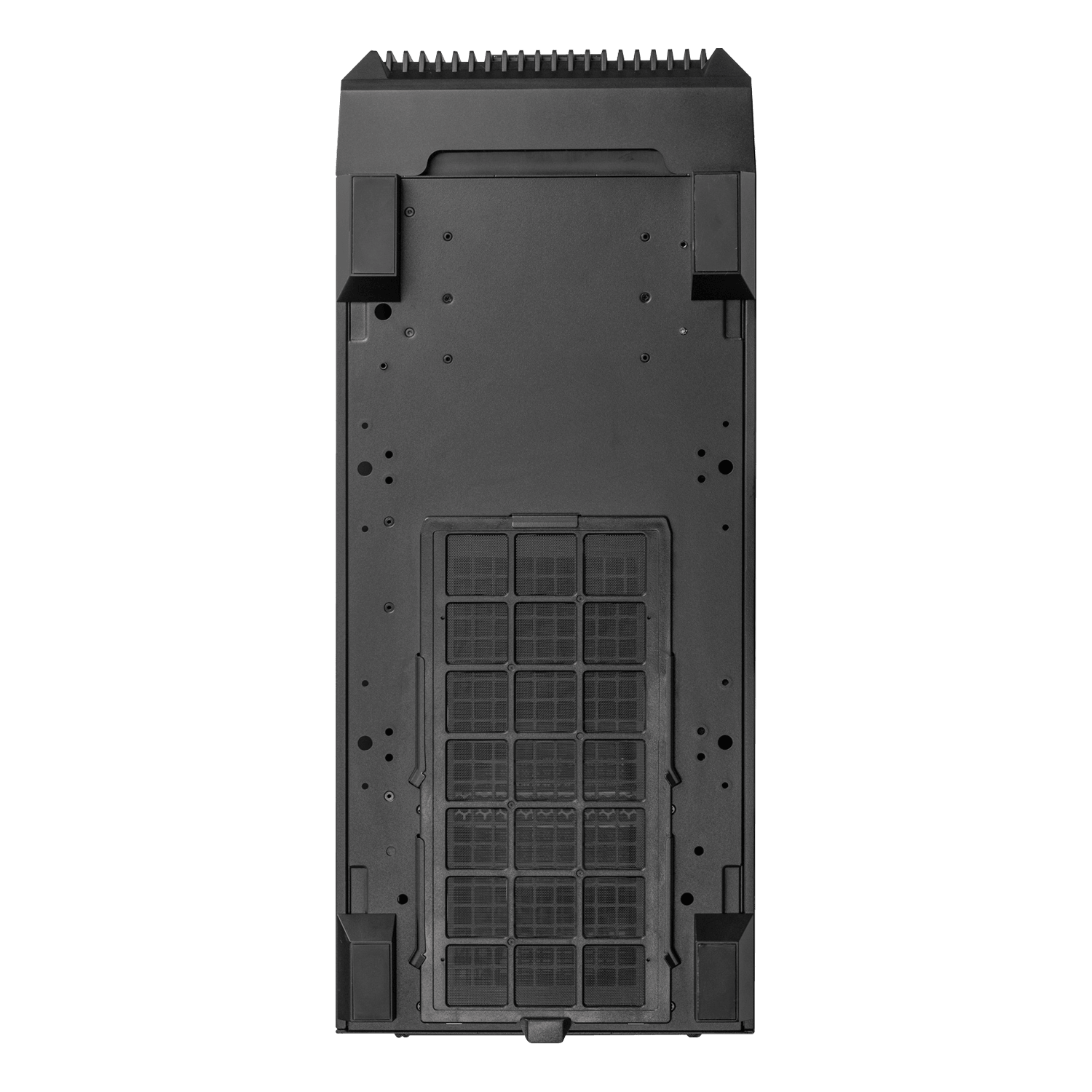

- Dust filters included in key areas
Model No. | SST-CS383 |
Material | Aluminum Parts Steel Plate |
Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
HDD backplane |
backplane
power connector
interface
|
Drive bay |
External
Internal
|
Cooling system |
Rear

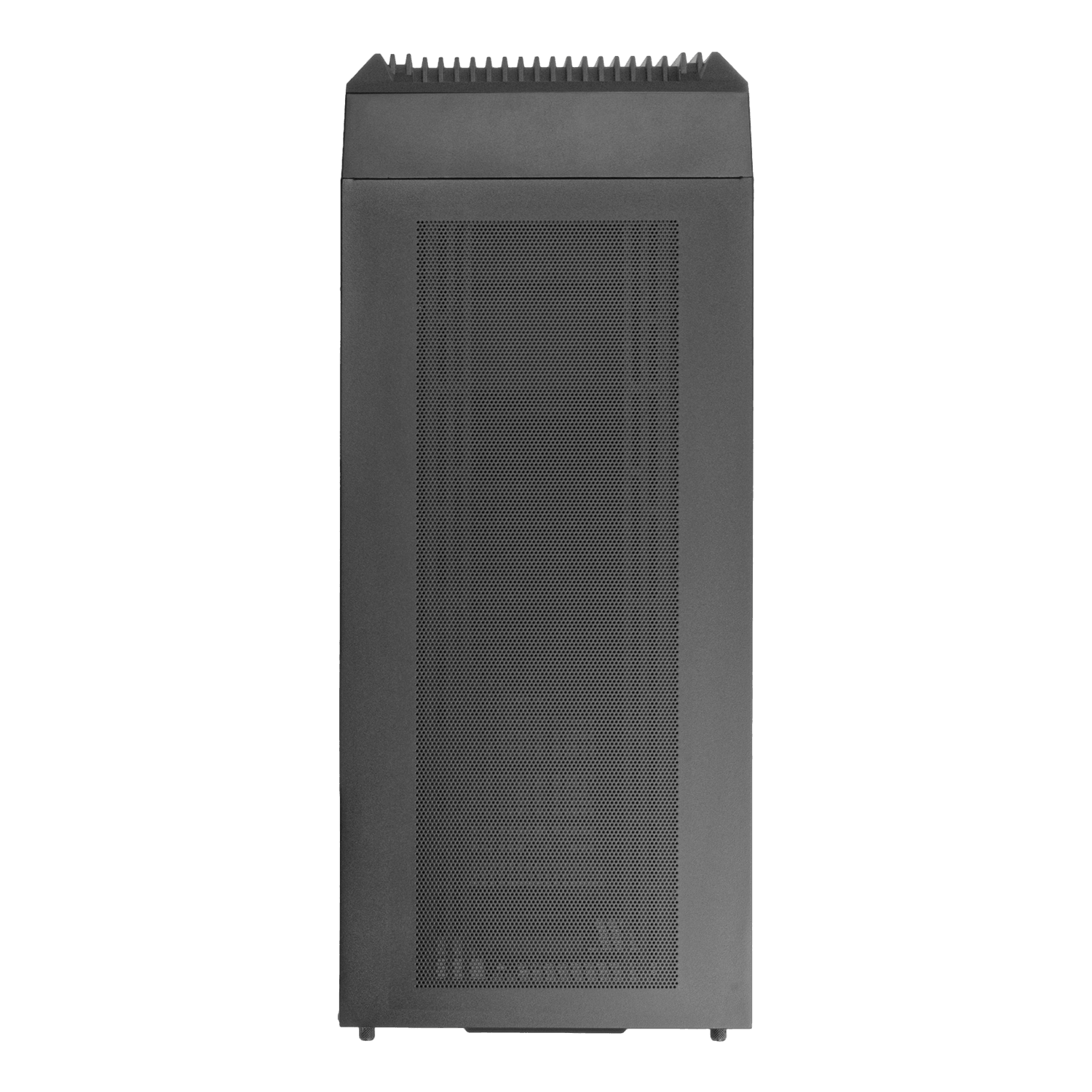

Top
Internal
|
Radiator support |
Rear
Top
|
Limitation of CPU cooler |
w/ GPU support bracket installed: 158mm w/o GPU support bracket installed: 186mm |

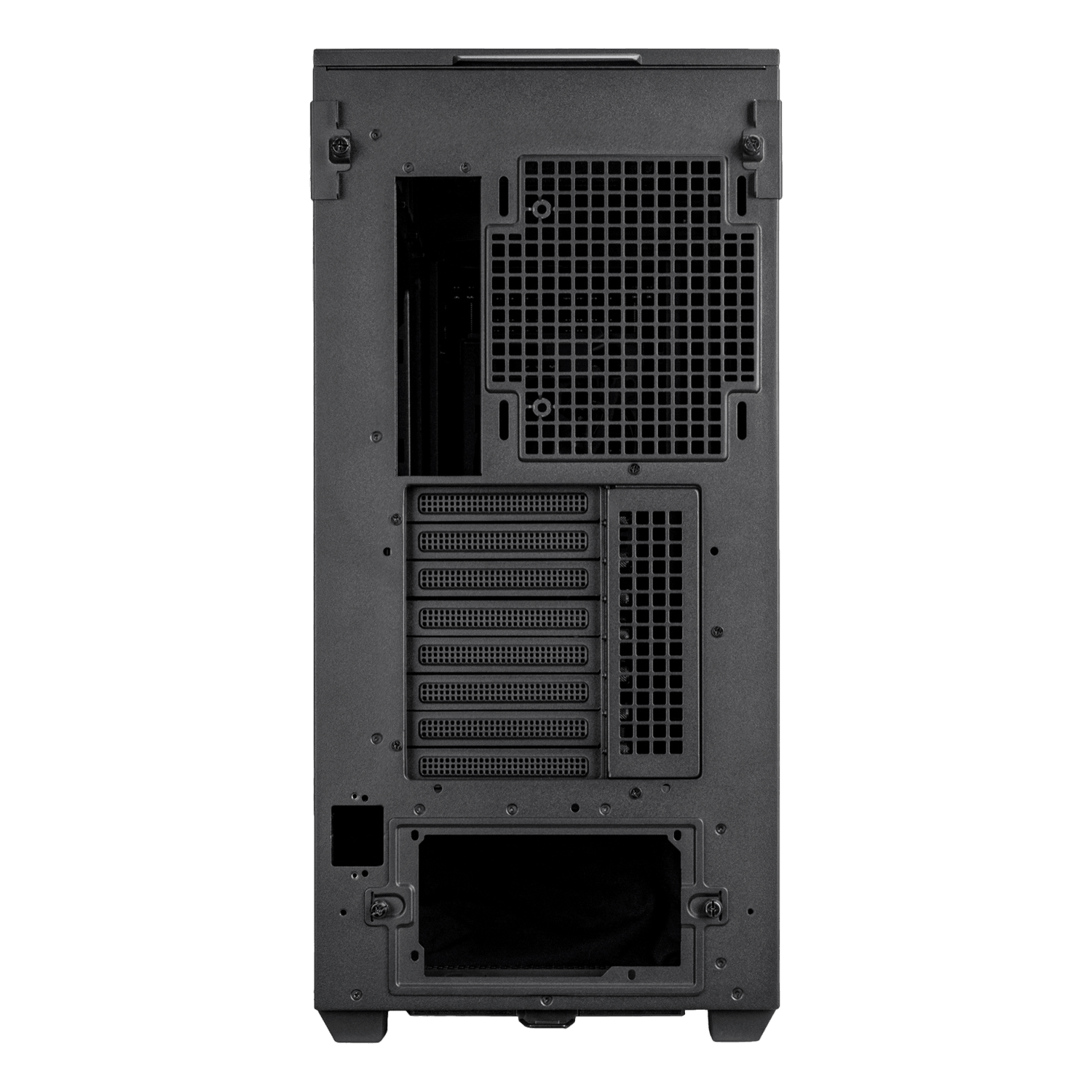

Expansion slot | 8 |
Limitation of expansion card |
Length:340mm Width:164mm |
Power supply | Standard ATX (PS2) |
Limitation of PSU |
Primary PSU slot:240mm Secondary PSU slot:200mm (Occupies front 5.25” x 3 drive bays) [3] |
Front I/O port |
USB Type-C x 1 USB 3.0 x 2 Combo audio x 1 |
LED Indicators |
Chassis
HDD Tray
|
Net weight | 16.6 kg |
Remark |
[1] Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05) [2] For compatibility with the 5.25” x1 device and the supported thickness of various liquid cooling radiator sizes, please refer to the user manual. [3] Requires the separate purchase of a power extension cord. |
