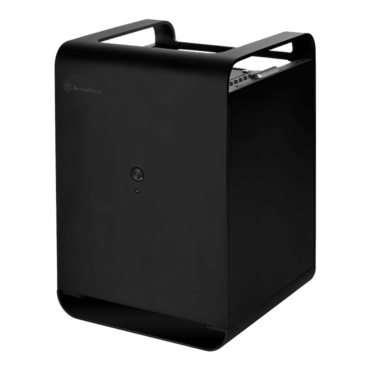

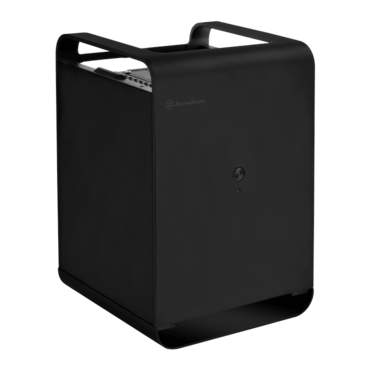

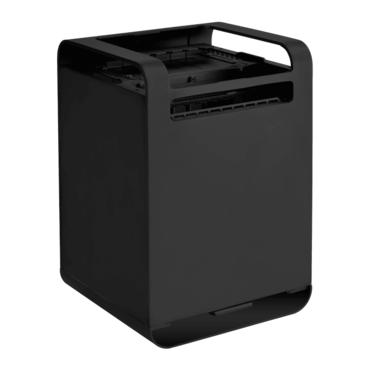

CS01B-HS, 2 x 2.5" Internal, 6 x 2.5" Hotswap Bay, No PSU, Mini-ITX, Black, Desktop Chassis
Quantity:
- SKU: 10874269
- Manufacturer: SILVERSTONE
- MPN: CS01B-HS
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$244.02
- Modern design with premium aluminum exterior
- Built-in six hot-swappable 2.5” drive bays with 6Gbps SAS/SATA HDD Backplane
- Vertical layout for stack effect cooling with built-in Air Penetrator fan
- Accommodates two more 2.5” drives internally for total eight drive capacity
- Supports 7.5” low profile expansion cards
| Model No. | SST-CS01S-HS (Silver) | |
| SST-CS01B-HS (Black) | ||
| -- | ||
| -- | ||
| Material | Aluminum outer shell, steel body | |
| Motherboard | Mini-ITX | |
| Drive bay | External | 2.5” SAS/ SATA hot-swap x 6 |
| (With 6Gbps SAS/SATA HDD Backplane)* | ||
| Internal | 2.5” x 2 | |
| Cooling system | Front | -- |
| Rear | -- | |
| Side | -- | |
| Top | -- | |
| Bottom | 120mm AP fan x 1 , 1200rpm, 19.7dBA | |
| Internal | -- | |
| Expansion slot | 1x low profile | |
| Front I/O port | USB 3.0 x 2 | |
| Power supply | SFX / SFX-L | |
| Expansion card | 1 x low profile up to 7.5”, width restriction – 2.95” | |
| Limitation of CPU cooler | 68mm | |
| Limitation of PSU | 130mm (Up to SFX-L) | |
| Net weight | 4.289kg | |
| Dimension | 210.5mm (W) x 322 mm (H) x 210 mm (D), 14.2 liters | |
