CL3800NW, 1U Ultra Short Depth Dual Rail WideScreen LCD Console (USB / HDMI / DVI / VGA)
- SKU: 12092587
- Manufacturer: ATEN
- MPN: CL3800NW
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$1,862.47
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

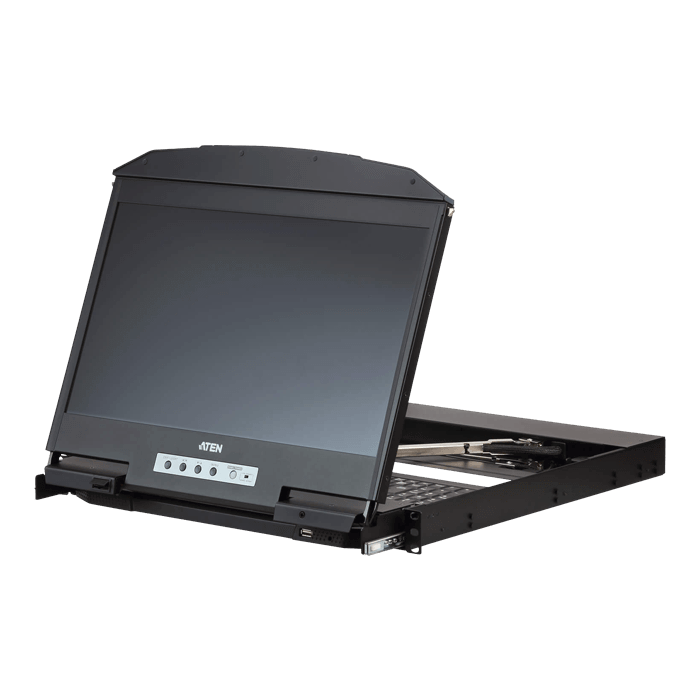

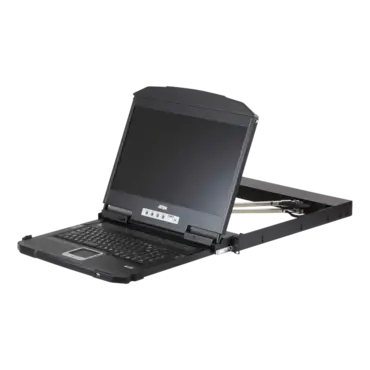

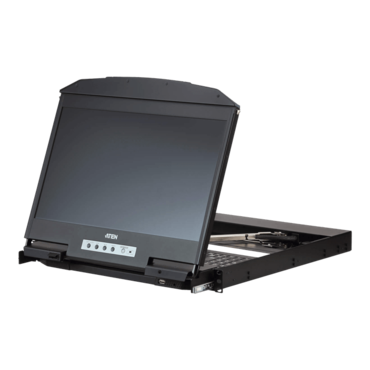

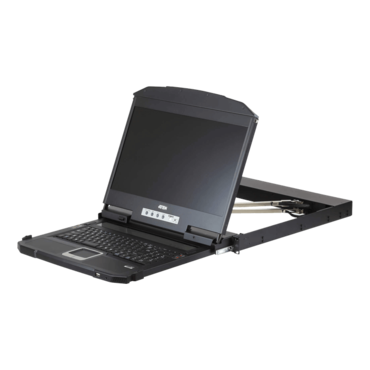

- Integrated KVM Console with short depth dual rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
| Function | CL3800NW |
| Computer Connections | |
|---|---|
| Direct | 1 |
| Console Selection | Hotkey |
| Connectors | |

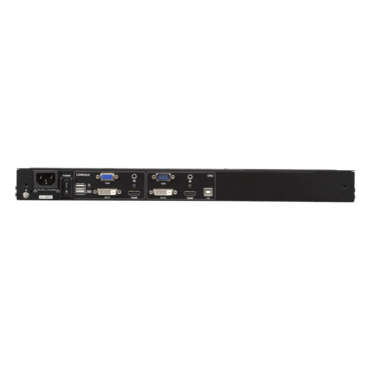

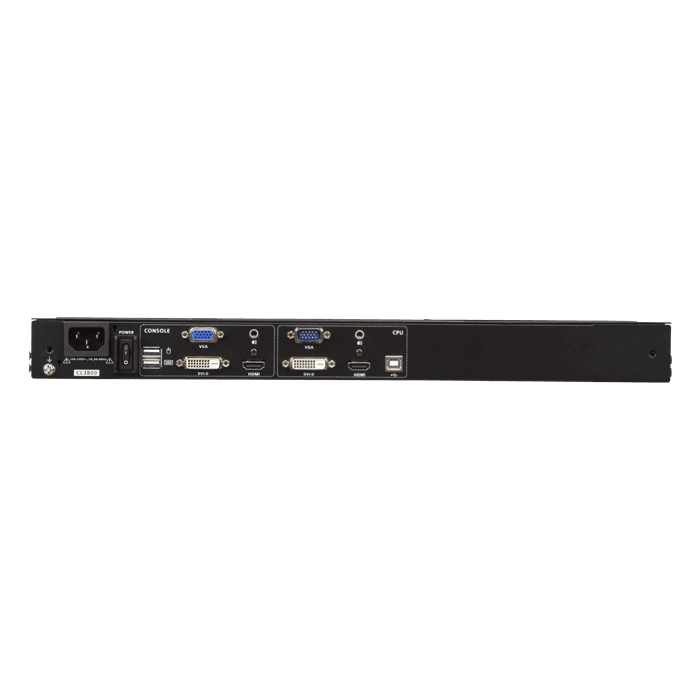

| External Console Ports | 1 x HDMI Female
1 x DVI-D Female (White) 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| KVM Ports | 1 x HDMI Female
1 x DVI-D Female (White) 1 x HDB-15 Male (Blue) 1 x USB Type B Female 1 x 3.5mm Audio Jack Female (Green) |
| USB Port | 1 x USB Type A Female |
| Firmware Upgrade | 1 x 3.5mm Audio Jack Female (Black) |
| Power | 1 x 3-prong AC Socket |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide |
| Power | 1 x Rocker |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbutton |
| LEDs | |
| Power | 1 x KVM Console (Dark Green)
1 x LCD (Orange) |
| Lock | 1 x Num Lock (Green)
1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Video | |
| Input Video Resolution | 1920 x 1200 @ 60 Hz, DDC2B |
| Panel Spec | |
| LCD Module | 18.5" TFT-LCD |
| Resolution | 1920 x 1080 @ 60 Hz |
| Pixel Pitch | 0.213 mm x 0.213 mm |
| Response time | 20 ms |
| Viewing Angle | 178° (H), 178° (V) |
| Contrast Ratio | 1000 : 1 |
| Support Color | 16.77M colors |
| Luminance | 350 cd/m² |
| Emulation | |
| Keyboard / Mouse | USB |
| Maximum Input Power Rating | 100–240V AC; 50–60Hz; 1A |
| Power Consumption | AC110V:26.6W:140BTU
AC220V:26.8W:141BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 9.61 kg ( 21.17 lb ) |
| Dimensions (L x W x H) | 48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.) |
| Body Dimensions(L x W x H) | 44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.) |
| Note | Body Dimensions exclude I/O ports, handles, and mounting brackets. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
