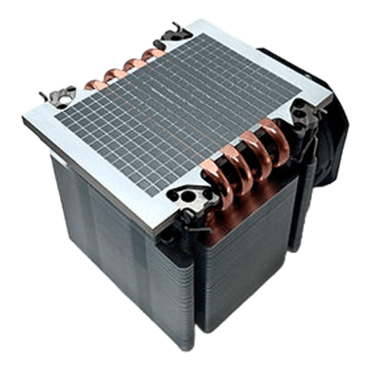

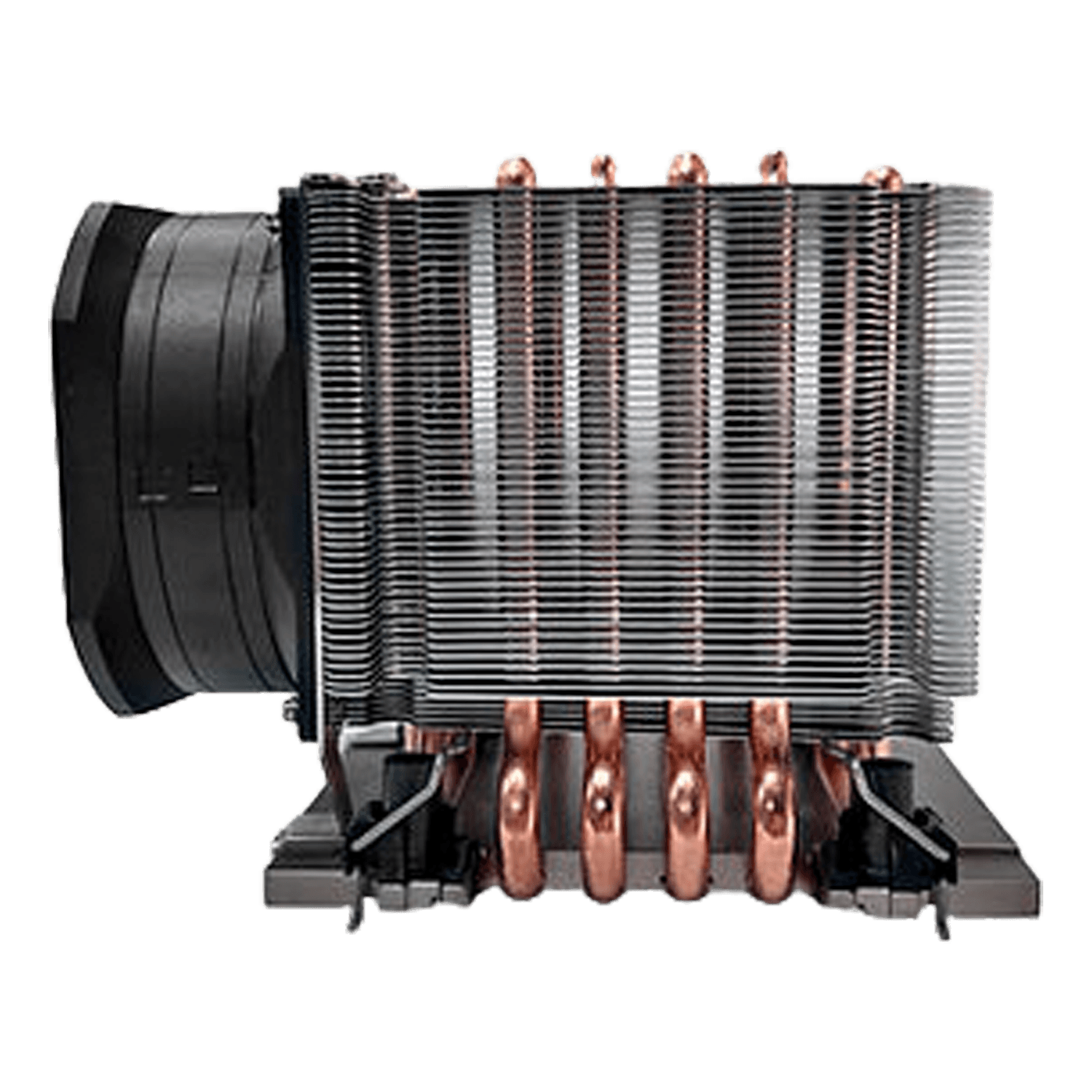

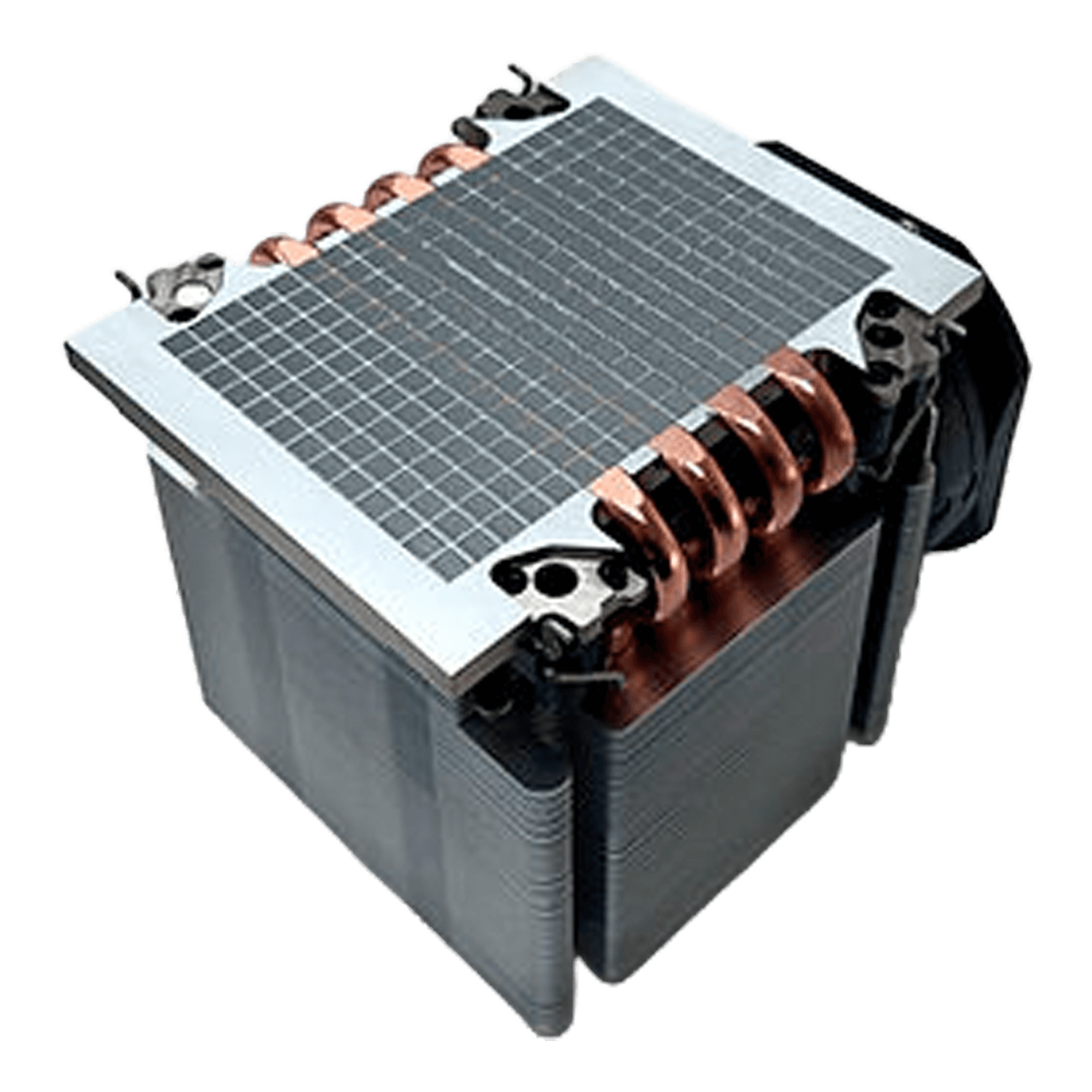

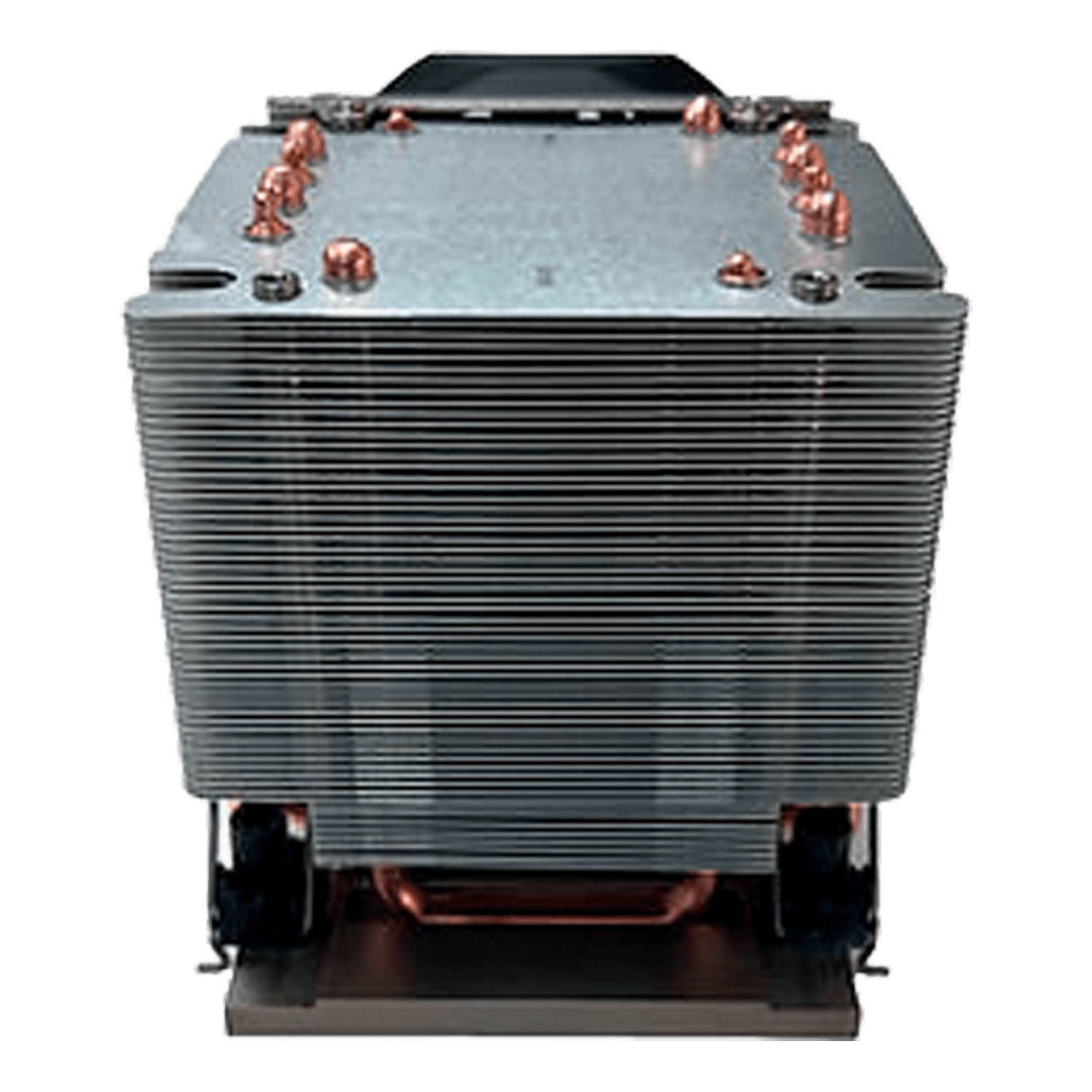

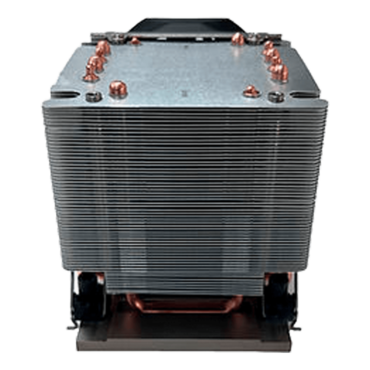

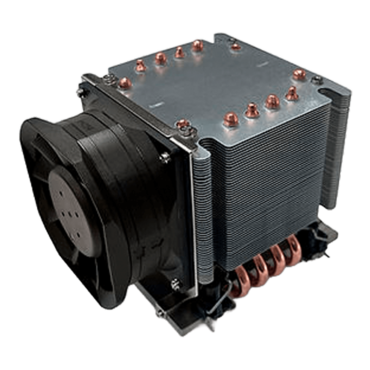

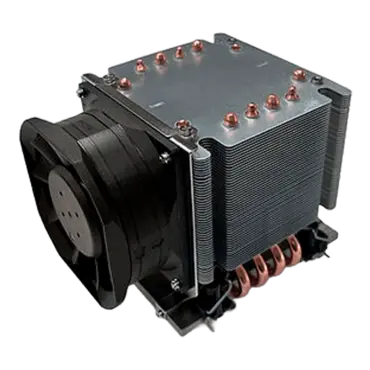

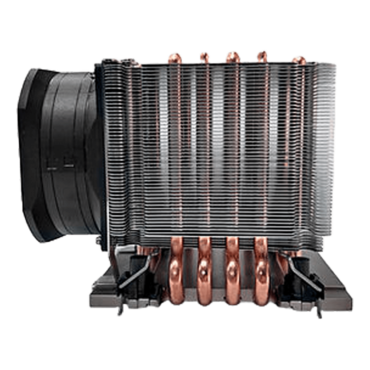

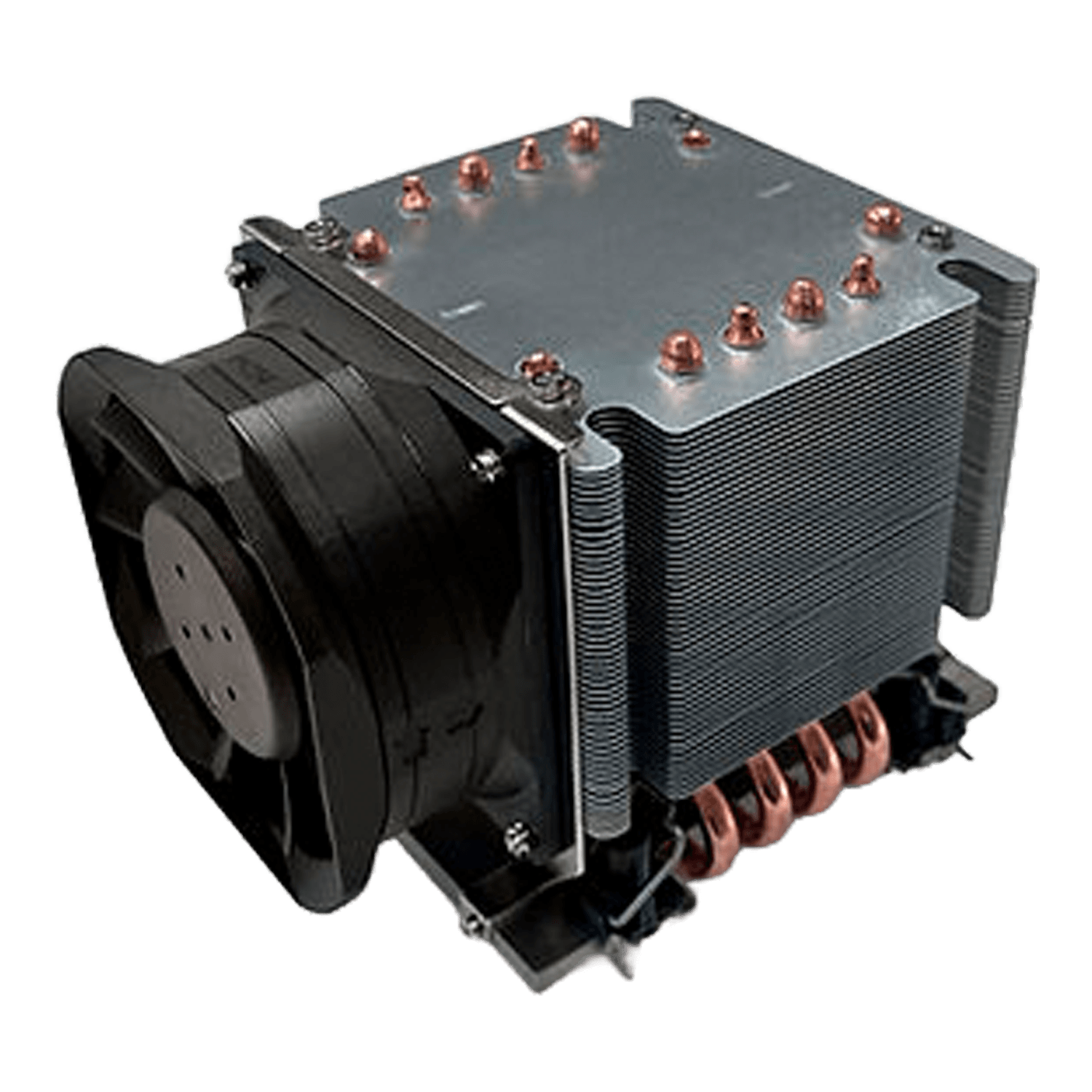

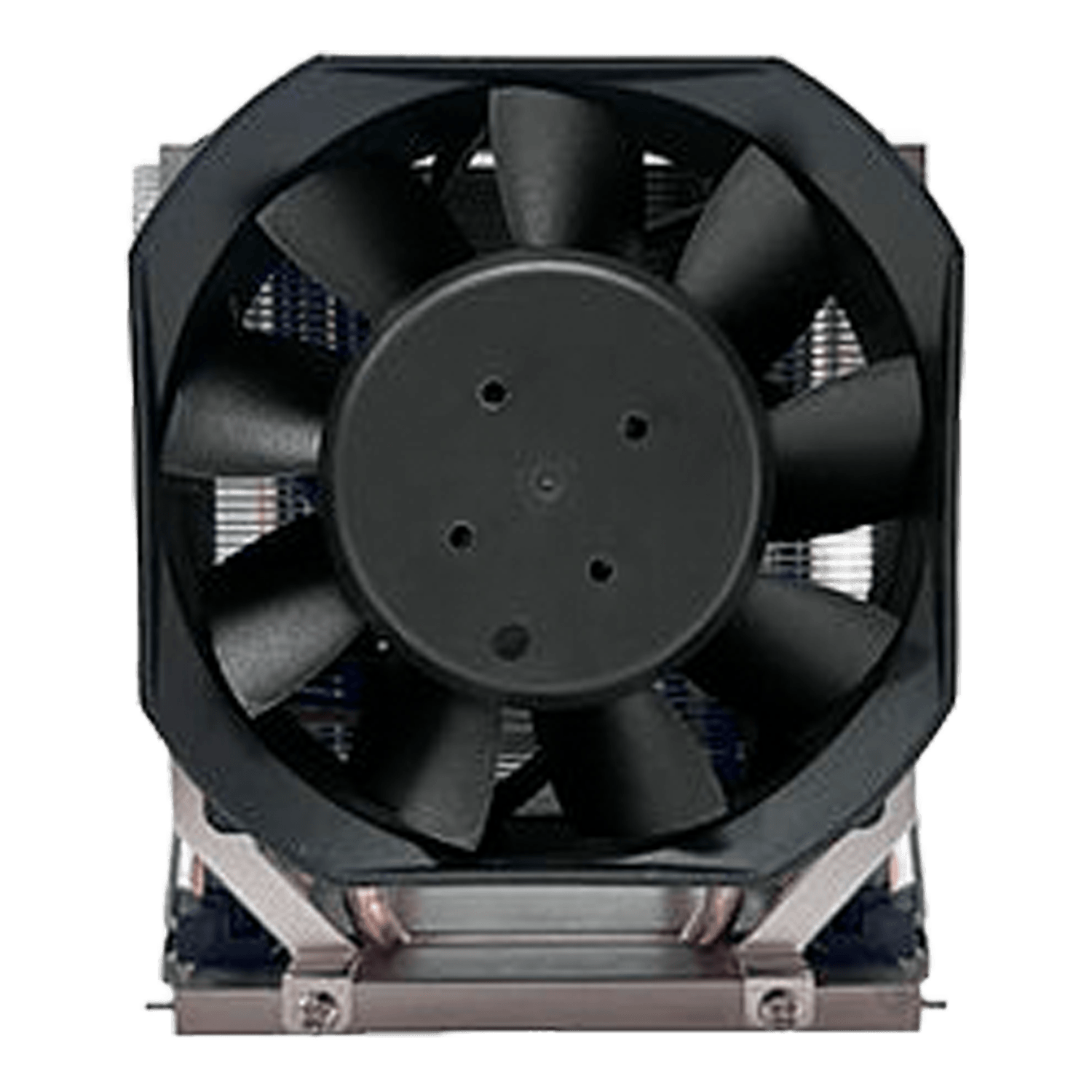

C3, 107mm Height, 570W TDP, Copper/Aluminum CPU Cooler
- SKU: 20409860
- Manufacturer: DYNATRON
- MPN: C3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
C3, 107mm Height, 570W TDP, Copper/Aluminum CPU Cooler
The Dynatron C3 CPU cooler is designed for 3U
The Dynatron C3 CPU cooler is designed for 3U
| CPU Support | Intel® Granite Rapid AP |
| CPU Socket | LGA 7529 |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 3U and Up |
| Dimensions | 140 x 97.8 x 107mm |
| Weight | 630 g |
| Material | Aluminum Stacked-fin with Heat Pipes directly contact CPU |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed |
At Duty Cycle 0~20%: 2400± 200 RPM At Duty Cycle 50%: 4800±10% RPM At Duty Cycle 100%: 8000 ±10% RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power |
At Duty Cycle 0~20%:1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Air Flow |
At Duty Cycle 0~20%: 32.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Noise Level |
At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.4 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 3.45 mm-H2O At Duty Cycle 50%: 13.6 mm-H2O At Duty Cycle 100%: 38.3 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
| *All product specifications and product images are subject to change without notice. | |
