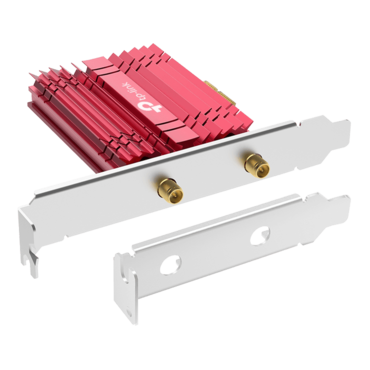

Archer TX3000E, AX3000, Dual-Band, Wi-Fi 6, Bluetooth 5.0, PCIe Wireless Adapter
Quantity:
- SKU: 13195236
- Manufacturer: TP-LINK
- MPN: ARCHER TX3000E
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$61.84
- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router^
- Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed for optimum signal reception
- Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2***
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety**
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
| HARDWARE FEATURES | |
| Dimensions |
3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
| Antenna Type |
Two High-Gain Dual Band Antennas Magnetized Antenna Base |
| Chipset | Intel Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.0/4.2/4.0 |
| WLAN Signal Rate |
5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity |
5 GHz : 11ax HT160:-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160:-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm |
| WLAN Transmit Power |
5 GHz : 27dBm(FCC) 2.4 GHz : 26dBm(FCC) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Bluetooth Profiles | Archer TX3000E support the native BT profiles implemented in Windows 10. |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents |
Archer TX3000E Magnetized Antenna Base with 1m RF Cable Two 5 dBi High Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Windows 10(64-bit) only |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
