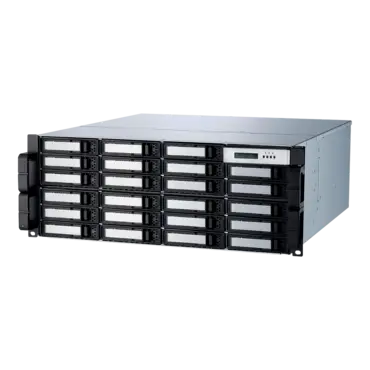

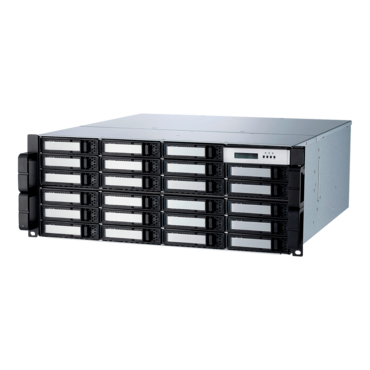

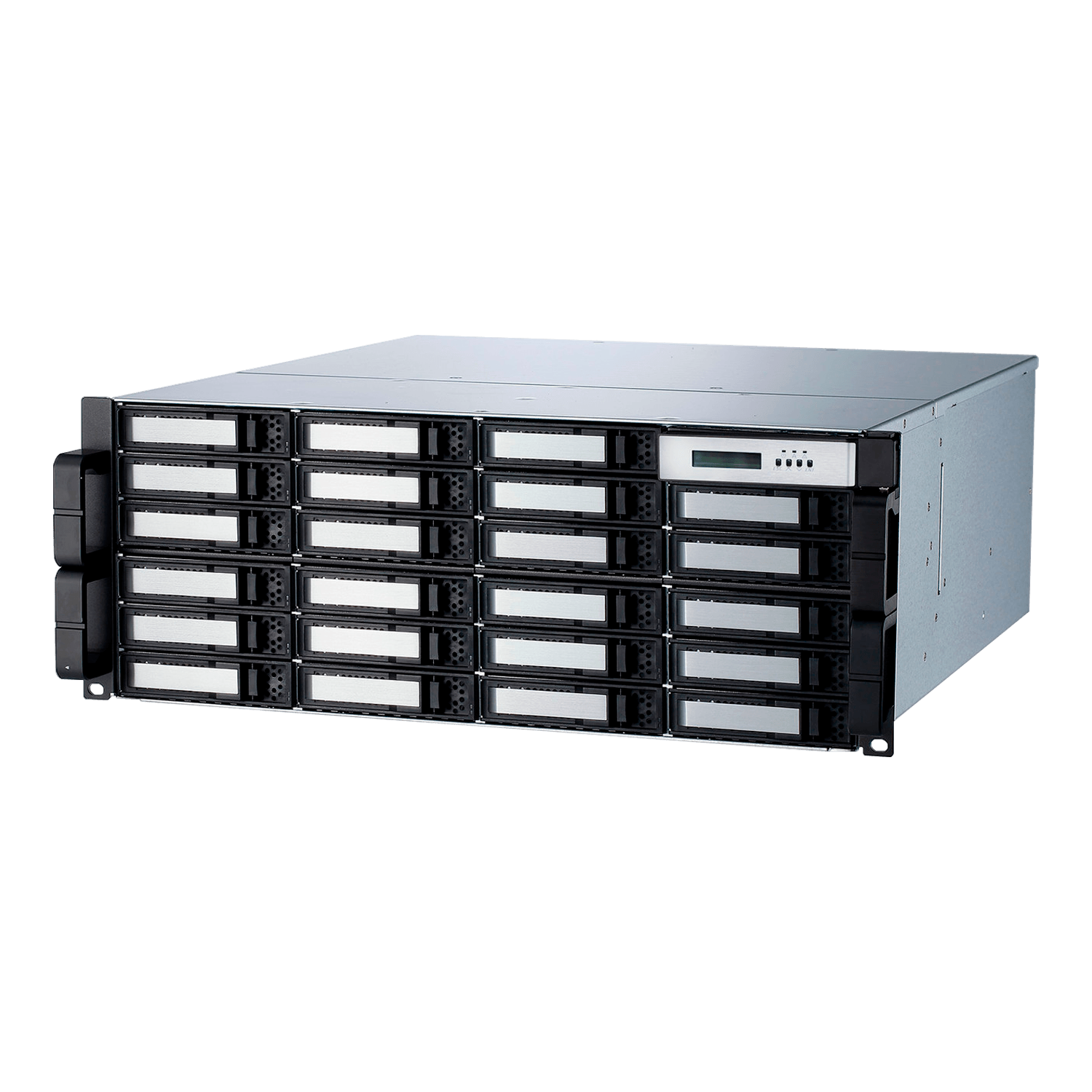

ARC-7324JS-TR4, 24-Bay 4U Rackmount 12Gb SAS JBOD w/ Expansion Port
- SKU: 18830576
- Manufacturer: ARECA
- MPN: ARC-7324JS-TR4
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$3,699.00
| ARC-73xx Series 12Gb/s SAS JBOD Enclosure | ||
| ARC-7324JS-TR4 | ||
| Form Factor | 4U-24 bays 19-inch rackmount chassis | |
| Module Support | Single | |
| External I/O Ports |
• Host Interface per Expander Module :Two 12Gb/s Min SAS HD 4x wide ports via two SFF-8644 connections • Expansion Interface per Expander Module : One 12Gb/s Min SAS HD 4x wide port via one SFF-8644 connection |
|
| Drive Channel per Enclosure |
Up to 24 x 3.5”/2.5” HDDs or SSDs |
|
| Data Transfer Rate | Up to 12Gb/s per port | |
| Expander Controller | ARM Cortex-R4 processor | |
| Operating Systems | OS Independent | |
| Cooling Fan | Four Cooling fans | |
| Power Supply |
• Redundant and hot-swappable 550W x2 with PFC and energy-efficient 80Plus Platinum Compliant. • Supports 100–240VAC input at 47 and 63Hz frequency |
|
| Operating Temperature | 0 °C to 40 °C operating / -40 to 60°C non-operation | |
| Operating Humidity | 10% to 85%, non-condensing | |
| Regulatory Certification | CE, FCC | |
|
Physical Dimensions (H x W x D) |
• Without handles 176.4 x 445 x 506 mm (6.4 x 17.5 x 19.9 in) • With handles 176.4 x 482 x 542 mm (6.4 x 22.9 x 21.3 in) |
|
| Weight |
• Single: 34 kg (74 lb) • Dual: 35 kg (77 lb) |
|
| Warranty | 3 years | |
