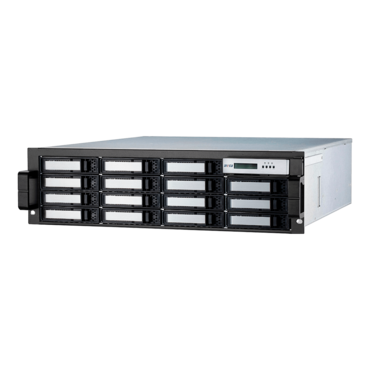

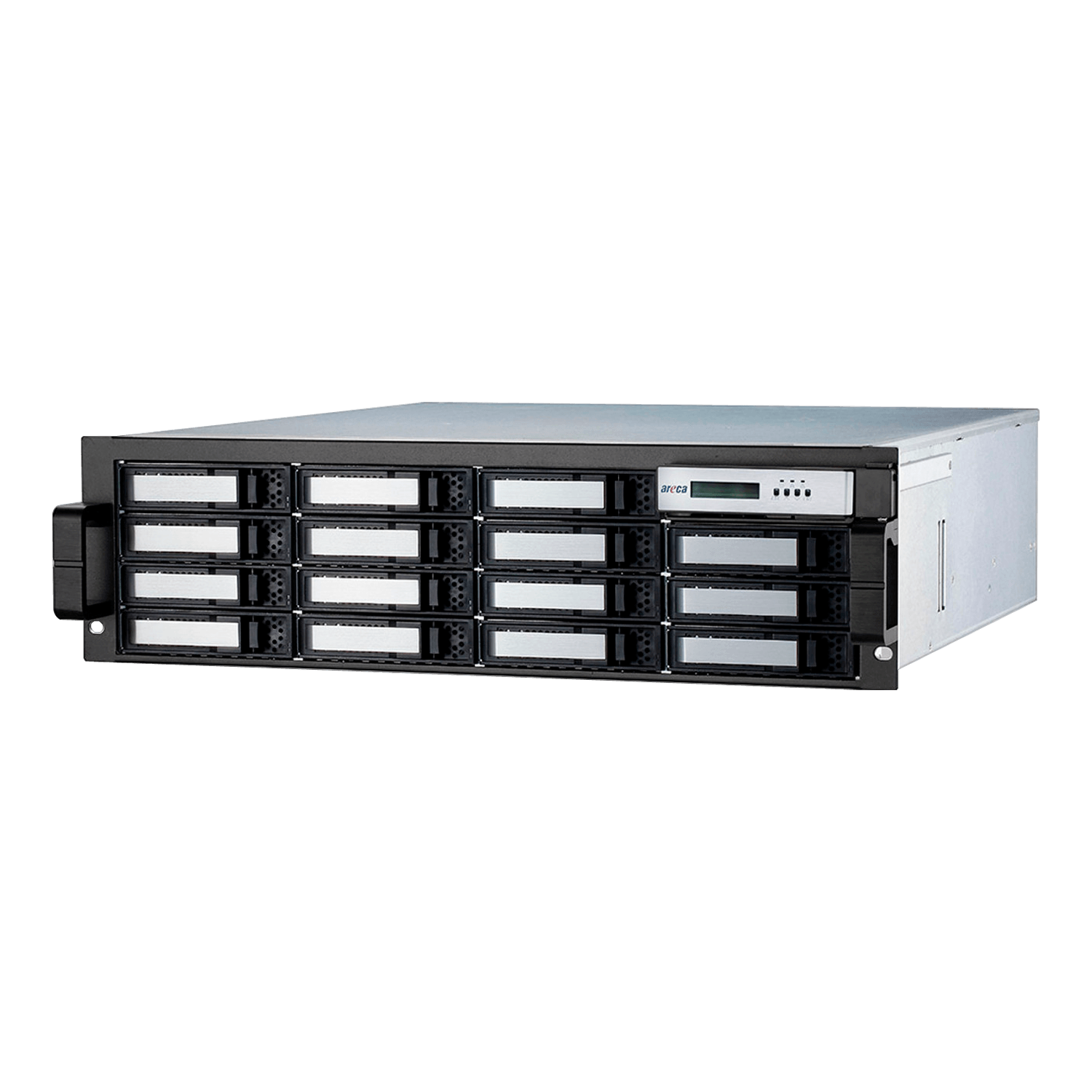

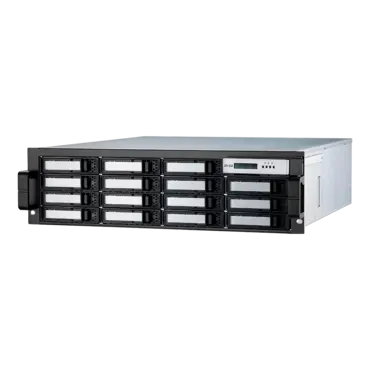

ARC-7316JS-TR3, 16-Bay 3U Rackmount 12Gb SAS JBOD w/ Expansion Port
- SKU: 18829036
- Manufacturer: ARECA
- MPN: ARC-7316JS-TR3
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$3,399.00
| ARC-73xx Series 12Gb/s SAS JBOD Enclosure | ||||
| ARC-7316JS-TR3 | ||||
| Form Factor | 3U-16 bays 19-inch rackmount chassis | |||
| Module Support | Single | |||
| External I/O Ports |
• Host Interface per Expander Module :Two 12Gb/s Min SAS HD 4x wide ports via two SFF-8644 connections • Expansion Interface per Expander Module : One 12Gb/s Min SAS HD 4x wide port via one SFF-8644 connection |
|||
| Drive Channel per Enclosure |
Up to 16 x 3.5”/2.5” HDDs or SSDs |
|||
| Data Transfer Rate | Up to 12Gb/s per port | |||
| Expander Controller | ARM Cortex-R4 processor | |||
| Operating Systems | OS Independent | |||
| Cooling Fan | Two Cooling fans | |||
| Power Supply |
• Redundant and hot-swappable 550W x2 with PFC and energy-efficient 80Plus Platinum Compliant. • Supports 100–240VAC input at 47 and 63Hz frequency |
|||
| Operating Temperature | 0 °C to 40 °C operating / -40 to 60°C non-operation | |||
| Operating Humidity | 10% to 85%, non-condensing | |||
| Regulatory Certification | CE, FCC | |||
|
Physical Dimensions (H x W x D) |
• Without handles 132.6 x 445 x 506 mm (5.2 x 17.5 x 19.9 in) • With handles 132.6 x 482 x 542 mm (5.2 x 22.9 x 21.3 in) |
|||
| Weight |
• Single: 31 kg (68.3 lb) • Dual: 32 kg (70.5 lb) |
|||
| Warranty | 3 years | |||
