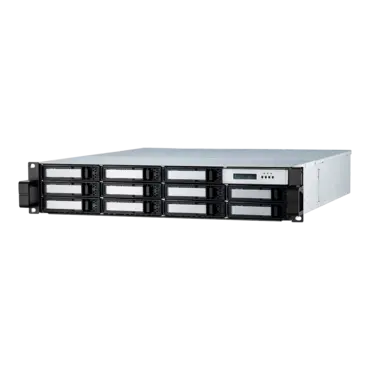

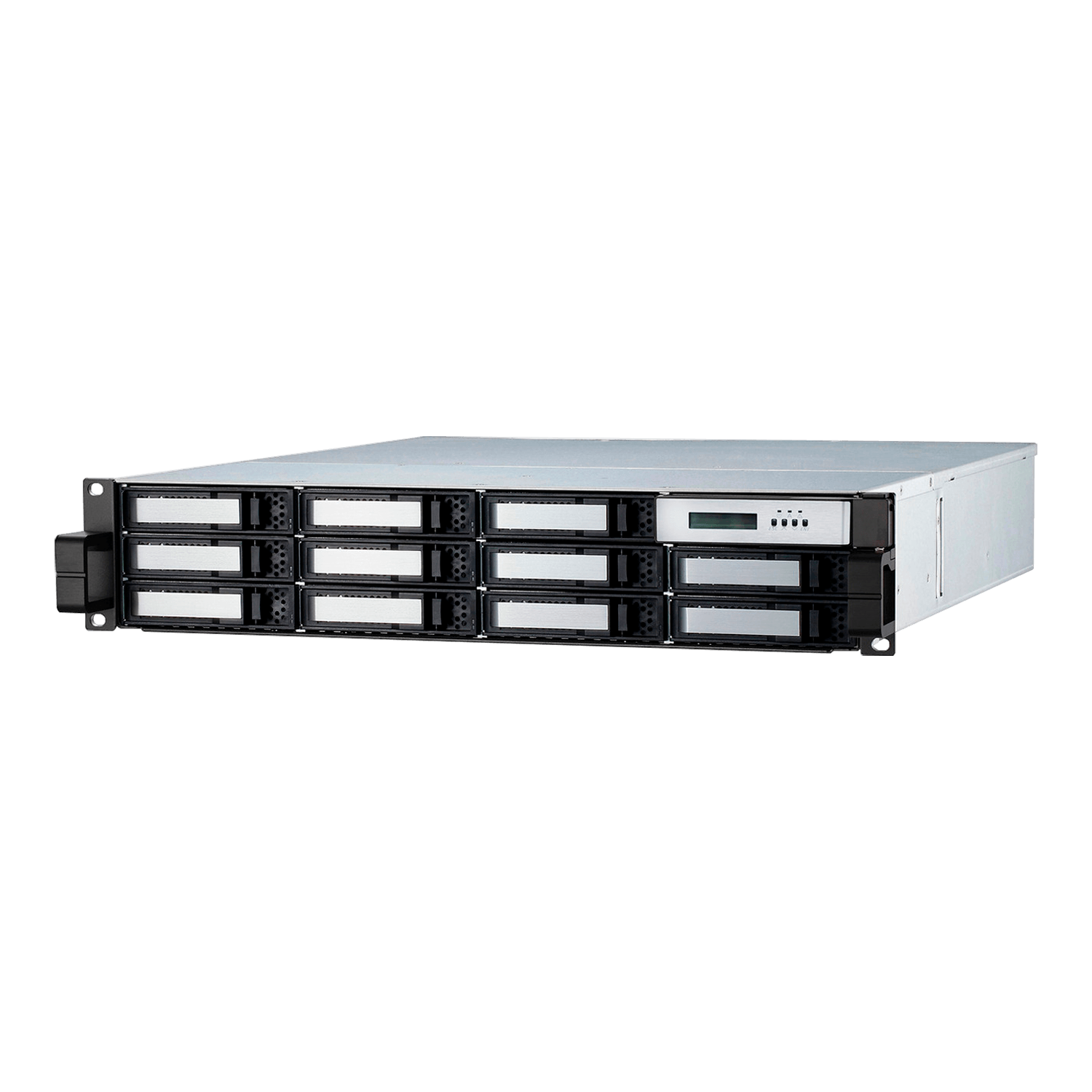

ARC-7212JS-TR2, 12-Bay 2U Rackmount 12Gb SAS JBOD w/ Expansion Port
- SKU: 18828969
- Manufacturer: ARECA
- MPN: ARC-7212JS-TR2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$2,699.00
| ARC-72xx Series 12Gb/s SAS JBOD Enclosure | ||
| ARC-7212JS-TR2 | ||
| Form Factor | 2U-12 bays 19-inch rackmount chassis | |
| Module Support | Single | |

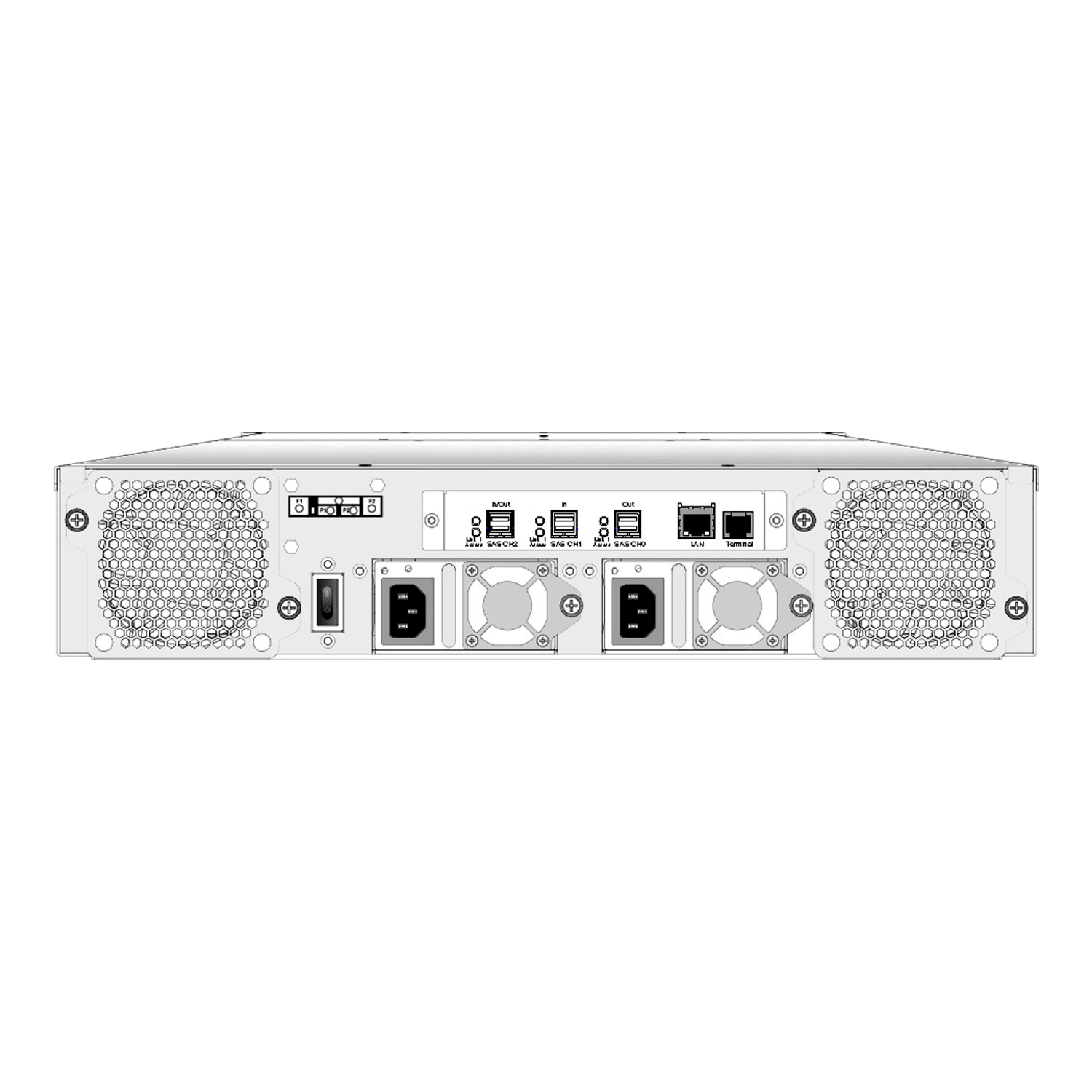

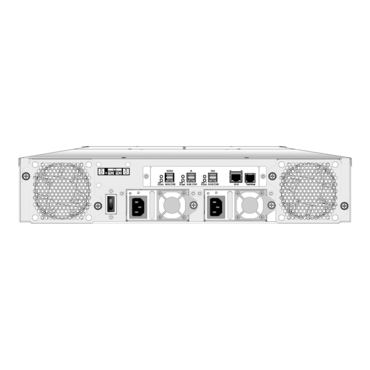

| External I/O Ports |
• Host Interface per Expander Module :Two 12Gb/s Min SAS HD 4x wide ports via two SFF-8644 connections • Expansion Interface per Expander Module : One 12Gb/s Min SAS HD 4x wide port via one SFF-8644 connection |
|
| Drive Channel per Enclosure |
Up to 12 x 3.5”/2.5” HDDs or SSDs |
|
| Data Transfer Rate | Up to 12Gb/s per port | |
| Expander Controller | ARM Cortex-R4 processor | |
| Operating Systems | OS Independent | |
| Cooling Fan | Two Cooling fans | |
| Power Supply/In/out | Dual 400W hot swap, N+1 redundant with PFC | |
| Operating Temperature | 0 °C to 40 °C operating / -40 to 60°C non-operation | |
| Operating Humidity | 10% to 85%, non-condensing | |
| Regulatory Certification | CE, FCC | |
|
Physical Dimensions (H x W x D) |
• Without handles 88.2 x 445 x 506 mm (3.2 x 17.5 x 19.9 in) • With handles 88.2 x 482 x 542 mm (3.2 x 22.9 x 21.3 in) |
|
| Weight |
• Single: 27 kg (59.5 lb) • Dual: 28 kg (61.7 lb) |
|
| Warranty | 3 years | |
