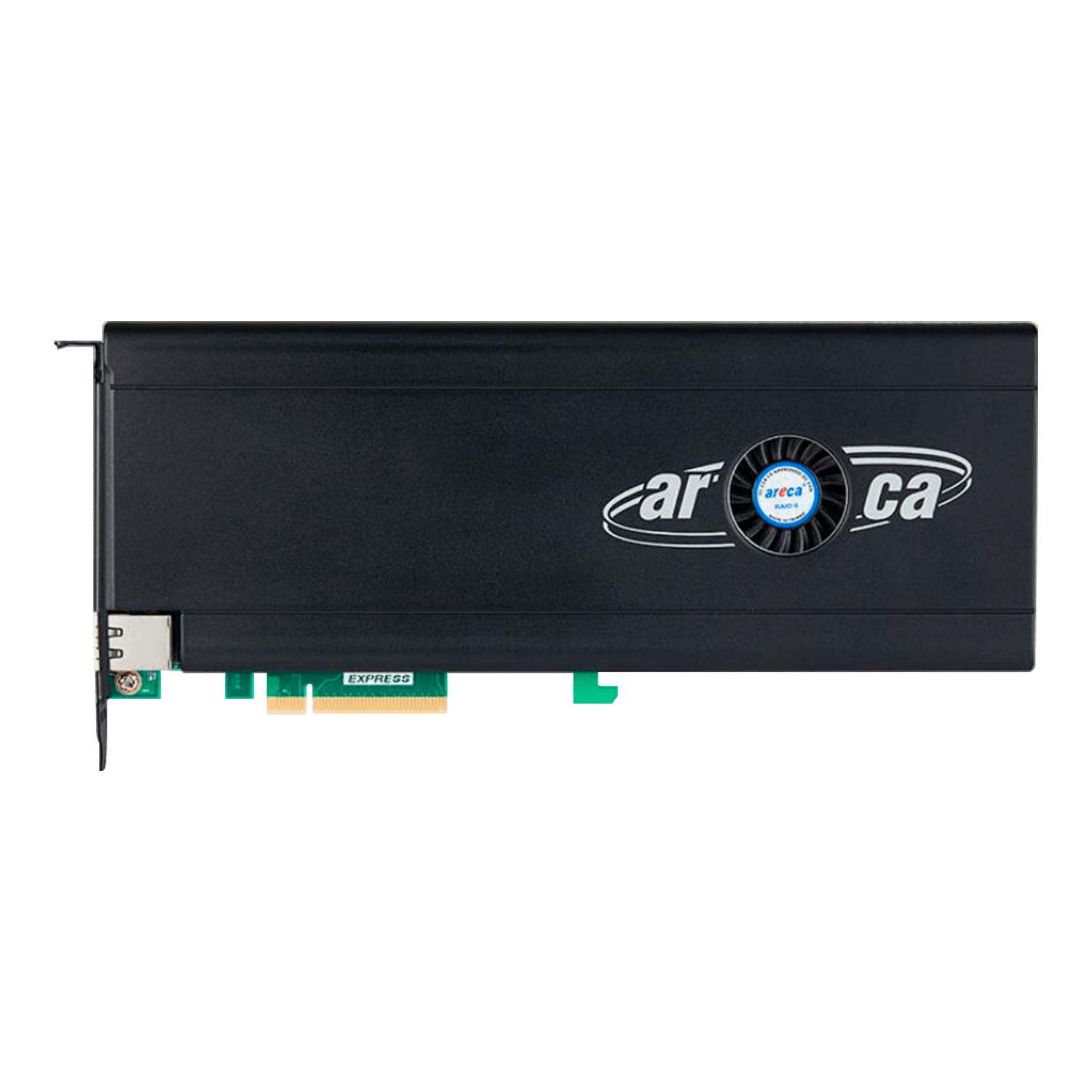

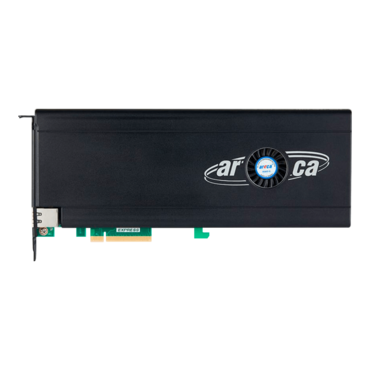

ARC-1886-6N2I, Tri-mode SATA/SAS/PCIe (NVMe) 12Gb/s, 6-Port Internal (6x M.2), 2-Port Internal (2x SATA), PCIe 4.0 x8, Controller with 8GB Cache
- SKU: 15820145
- Manufacturer: ARECA
- MPN: ARC-1886-6N2I
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- SupportsRAID 0,RAID 1,RAID 5,RAID 6,RAID 10, andJBODconfigurations for flexible and scalable storage management
- 6 SATA/SAS portsfor connecting multiple drives, offering up to12Gb/s per portwithPCIe 3.0 x8interface
- Dedicated RAID processorfor offloading RAID tasks from the CPU, enhancing overall system performance
- Battery-backed cacheensures data integrity during power loss and provides consistent performance
- SSD caching supportto accelerate read and write speeds for high-demand applications
- Hot-swappingfunctionality allows for replacing drives without system downtime
- Real-time management softwarefor easy monitoring, diagnostics, and RAID configuration
- Ideal forlarge-scale storage arrays,virtualization, andenterprise-level data protection
- Backward compatibilitywith SATA III and SAS II drives for versatile storage options.
| PCIe Gen 4.0 M.2 NVMe Hardware RAID controller | |
| ARC-1886-6N2I | |
| Form Factor | 107.2(H) x 262(L) mm |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| On-Board Cache | 8GB on-board DDR4-2666 SDRAM |
| Drive Connector |
2 x SATA & 6 x M.2 Connector |
| Drive Support | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Management Port | In-Band: PCIe / Out-of-Band: LAN Port |
| Enclosure Ready | SGPIO, SMP, SES2 and UBM |
| Operating Voltage | 12V |
| Power Consumption | Approximately 14 Watts (without M.2 drive) |
| Cache Protection | ARC-1886-CBM |
