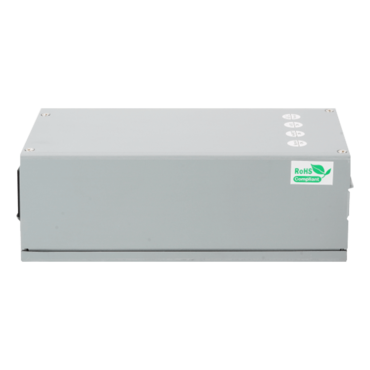

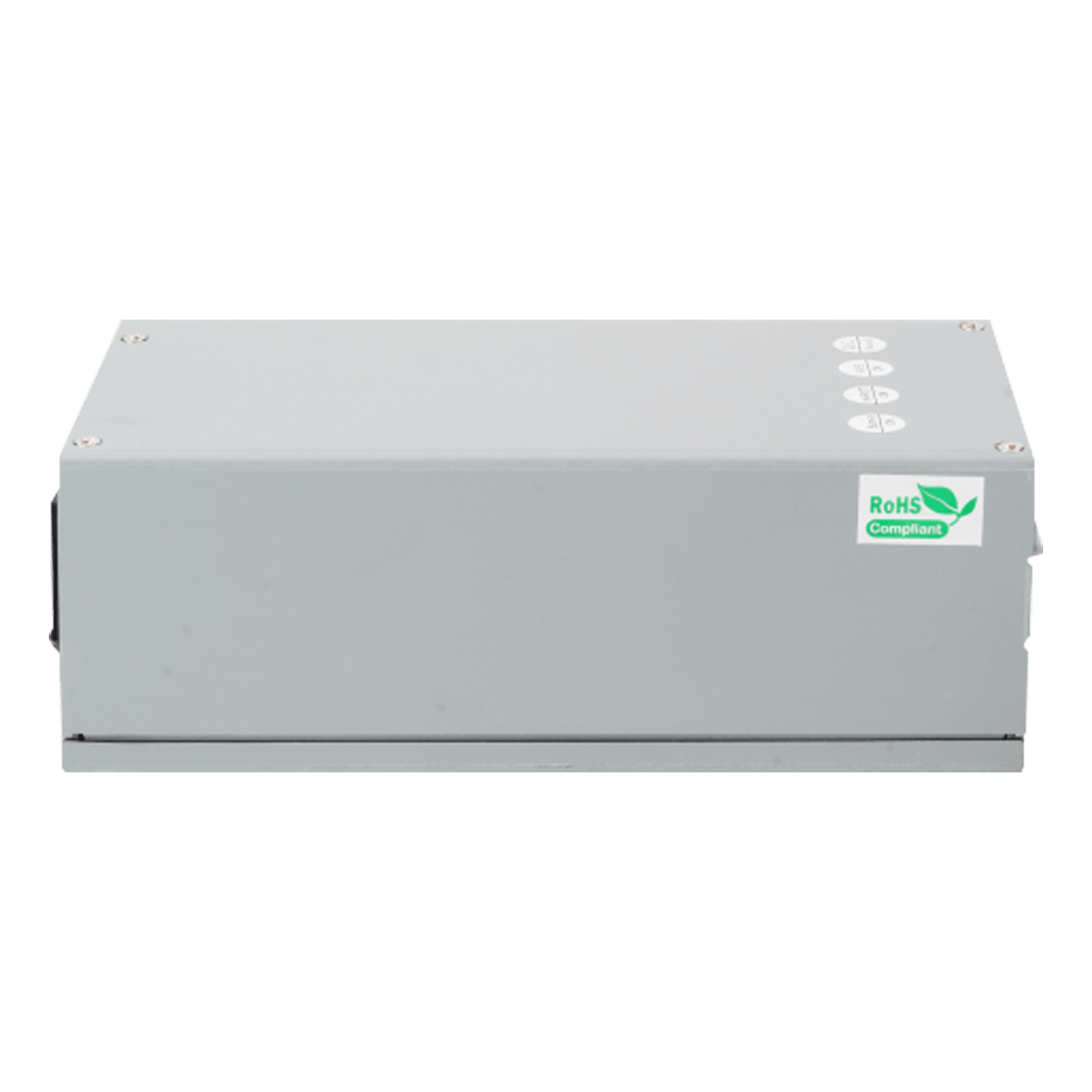

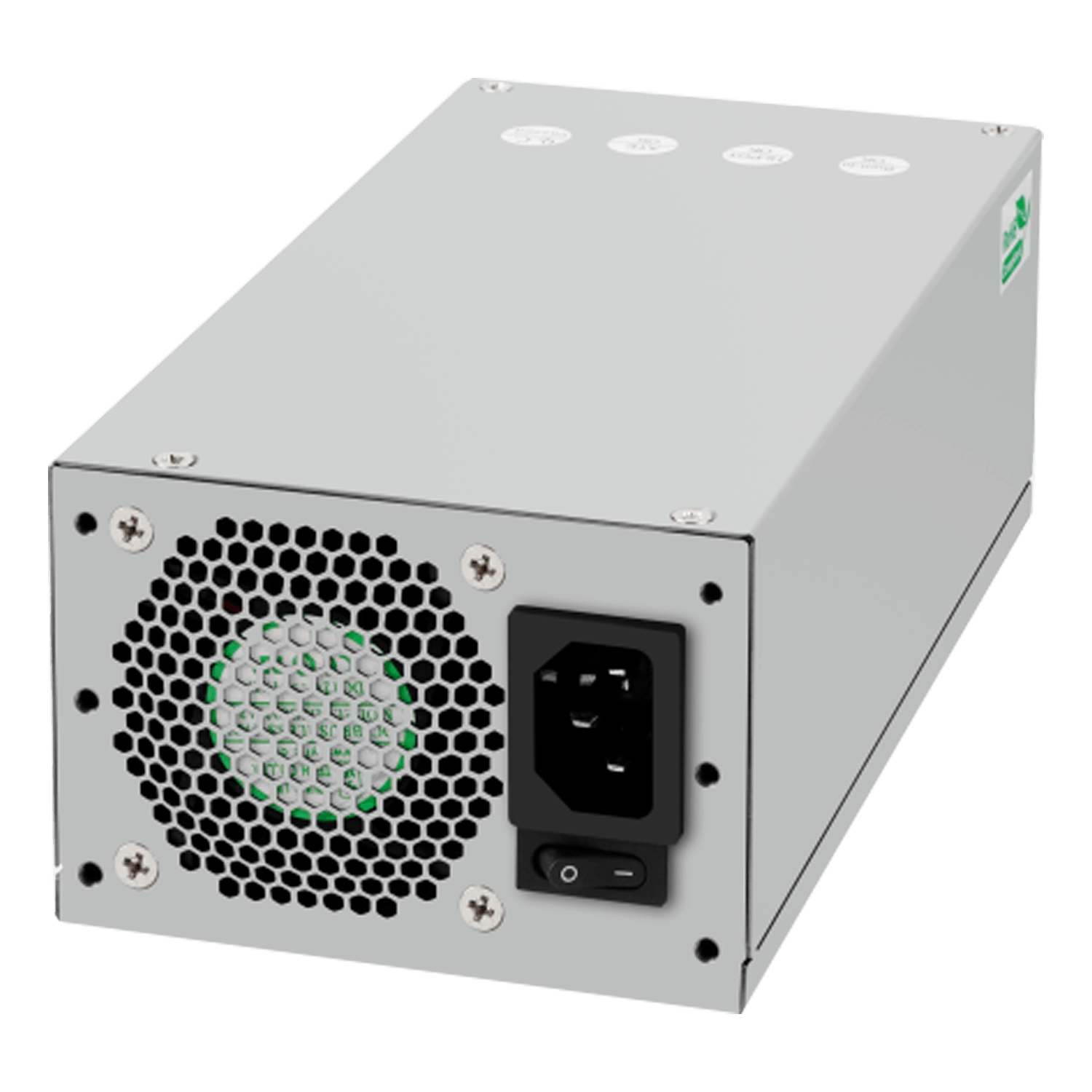

AP-2UMK12P868, 80 PLUS Platinum, 1200W, Single, 2U Power Supply
- SKU: 19505492
- Manufacturer: ATHENA POWER
- MPN: AP-2UMK12P868
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$405.95
- 1200W continuous output, 80 PLUS Platinum certified
- ATX 3.1 and PCIe 5.0 ready for modern platforms
- 12V-2x6 (H++) connector for next-gen GPUs
- Dual smart cooling fans with thermal control
- Universal AC input (100–240V) with active PFC
- Low ripple and noise for professional systems
- IEC/UL 62368-1 international safety certified
- Supports ATX 20/24-pin, EPS-12V, PCIe, SATA, and Molex connectors
- Compact 2U form factor for servers, workstations, OEM builds
| Model | AP-2UMK12P868 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | 1U / 2U | ||||||||||||||
| Product Sub Category | 2U EPS Power Supplies 62368 | ||||||||||||||
| Output Power | 1200 Watts | ||||||||||||||
| Input Votage | 100 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin x 1
12V-2x6(H++) 600W Connector x 1
EPS-12V 8 Pin x 1 + 8 Pin (4+4) x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 8
Molex 4 Pin x 2
|
||||||||||||||
| Dimension | (D x W x H) 200 x 100 x 70 mm / 7.87 x 3.94 x 2.76 in | ||||||||||||||
| Weight | 5.00lb | ||||||||||||||
| Warranty | 5 Year Manufacture Limited Warranty |
