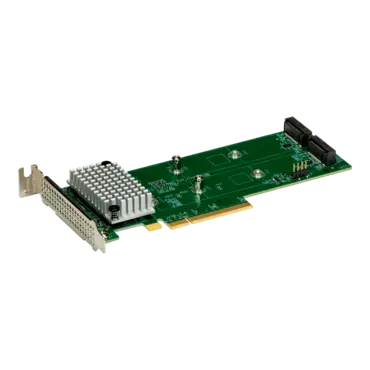

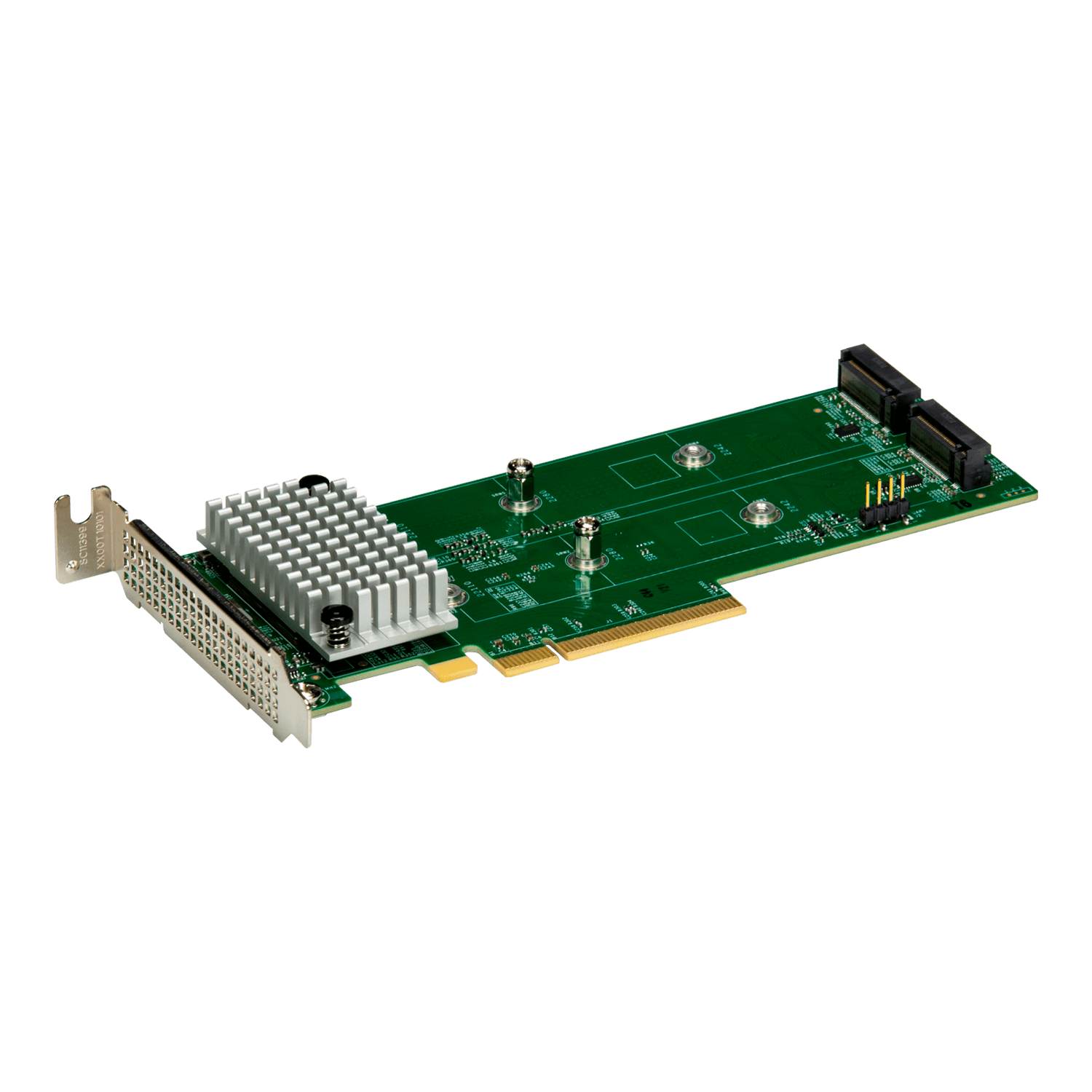

AOC-SLG4-2H8M2-O, 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID Boot Storage Adapter
- SKU: 18440114
- Manufacturer: SUPERMICRO
- MPN: AOC-SLG4-2H8M2-O
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$256.67
- Broadcom 3808 SAS Hardware RAID controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
- Broadcom SAS3808 I/O RAID Controller
- x8 PCIe Gen4 Host interface
- Dual M-Key sockets (for 2x M.2 SSD)
- Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
- Supports NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
- Supports RAID 0 and RAID 1
- Supports MCTP over PCIe/ I2C
- Supports BMC-enabled management
- Supports SAA (SuperServer Automation Assistant) management
- Supports secure erase
- Supports hardware secure boot
- Supports on-board LEDs for SSD Activity and Status
- UEFI Configuration utility
- OS Support: Windows, Linux, and VMWare
- Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
- Thermal operating range: System dependent (55°C or higher w/ enough airflow)
