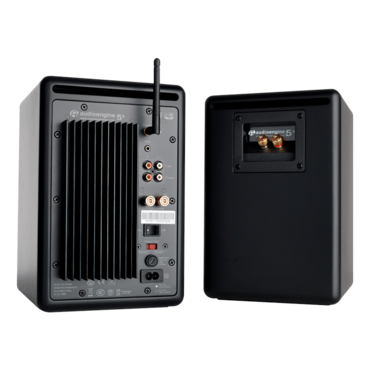

A5+BT-BLK, Wired/Bluetooth, Matte Black, 2.0 Channel Bookshelf Speakers
- SKU: 14465094
- Manufacturer: AUDIOENGINE
- MPN: A5+BT-BLK
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
A5+ HOME MUSIC SYSTEM W/ BLUETOOTH APTX-HD (A5+BT-BLK)
The A5+ premium powered speakers are a complete home music system with bold stereo sound that fills any room. Wired or wireless connections including aptX-HD Bluetooth from your phone, tablet or computer, or good old analog from that vintage turntable or 80’s Sony tape deck.
- Class AB
- 50 Hz-22 kHz ±1.5 dB
- 2-Speaker Stereo
- Extended-Range Wireless aptX-HD Bluetooth
- Remote Control
- Silk Tweeters & Aramid Fiber Woofers
- Subwoofer Output
- SMALL SPEAKERS BIG SOUND
- HOME MUSIC SYSTEM
| GENERAL SPECIFICATIONS | |
| Type | Powered Bluetooth aptX HD speaker system |
| Amplifier Type | Class AB |
| Power Output | 150 W peak power total (50 W RMS / 75 W peak per channel), AES |
| Drivers |
5″ aramid fiber woofers
0.75″ silk dome tweeters |
| Inputs | 3.5 mm stereo mini-jack, RCA L/R, Bluetooth |
| Outputs | RCA variable line-out |
| Input Voltages | 115/240 V, 50/60 Hz manually switchable |
| SNR | >95 dB (typical A-weighted) |
| THD+N | <0.05% at all power settings |
| Crosstalk | <50 dB |
| Frequency Response | 50 Hz-22 kHz ±1.5 dB |
| Input Impedence | 10K ohms unbalanced |
| Protection | Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fuse |
| Power Consumption |
Idle: 10 W Mute: 6 W Sleep: 4 W |
| BLUETOOTH SPECIFICATIONS | |
| Input Bit Depth | 24 bit (padded) |
| Bluetooth Receiver Type | Bluetooth 5.0 |
| Supported Codecs | aptX HD, aptX, AAC, SBC |
| Wireless Operation Range | Up to 100 ft (30 m) typical |
| Input Data Rate | Determined by Bluetooth |
| Wireless Latency | ~30 milliseconds (ms) |
| WEIGHTS AND MEASURES | |
| Dimensions (HWD) |
Left (active) – 10.75″ (27 cm) x 7″ (18 cm) x 9″ (23 cm) Right (passive) – 10.75″ (27 cm) x 7″ (18 cm) x 7.75″ (20 cm) |
| Weight |
Left (active) – 15.4 lb (7 kg) Right (passive) – 9.6 lb (4.4 kg) |
| Total Shipping Weight | 31 lb (14 kg) |
| Shipping Box Dimensions (LWH) | 22″ (56 cm) x 11.5″ (29 cm) x 15″ (38 cm) |
| ENVIRONMENTAL REQUIREMENTS |
Operating temperature: 32 degrees F to 95 degrees F Non-operating temperature: -4 degrees F to 113 degrees F Relative humidity: 5% to 95% non-condensing |
| MATERIALS AND CONSTRUCTION |
0.5″ (13 mm) thick MDF cabinets 5″ (130 mm) aramid fiber woofers with advanced voice coils 0.75″ (20 mm) silk dome tweeters with neodymium magnets Toroidal power transformer |
| CABINETS | To minimize unwanted resonances and distortion, Audioengine cabinets have thick high-resin MDF walls with extensive internal bracing. Heavy internal sound-damping material is used to reduce unwanted sound reflections inside the cabinet. All cabinet edges are rounded which look great and reduce high-frequency diffraction effects on the front baffles. The HDP6 cabinet contains tuned, rear-port slots. |
| FURNITURE GRADE FINISHES | The A5+ cabinets are available in several handsome finishes, including bamboo veneers as well as satin black and high-gloss white paint, offering a wide choice for complementing room furnishings. |
| CUSTOM COMPONENTS | Audioengine designs and manufactures our own tweeters, woofers, and other critical components. In other words, these are not “box built” speakers with off-the-shelf parts but custom-designed to our specifications. What we do not fabricate directly in our factory we have made to our designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components. |
| BASED ON STUDIO MONITOR DESIGNS | Studio monitor speakers are used by producers and engineers in recording and production studios. They are designed with a theoretical flat frequency response which allows the engineer to create a final mix in such a way that the recorded music will sound good on most other speakers. Although Audioengine speakers are not designed to be up-close “nearfield” studio monitors, we do carry over much of the same higher-end technology, components, and design philosophy for all Audioengine speaker systems. |
| EFFICIENT INTEGRATED DESIGN | The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. We build all this goodness into the left speaker cabinet to make it super-easy to connect your smartphone, tablet, computer, TV, network player or any other audio product. |
| HIGH-QUALITY BLUETOOTH AUDIO |
The Bluetooth built into the A5+ powered speakers features aptX HD coding which is an advanced Bluetooth audio codec with very impressive sound. And even if your phone or tablet does not have aptX HD, the A5+ Bluetooth
solution is backwards-compatible with SBC and AAC codecs, as well as standard aptX, so you can wirelessly stream music from any Bluetooth-enabled device and still enjoy all your music. High-fidelity Bluetooth aptX HD that
really works and sounds great. Here is why:
Extended-range wireless.
24 bit DAC |
| AMPLIFIER DESIGN | The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier marriage which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection. |
| DRIVER DESIGNS | Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means that the woofer retains its shape when being driven at high levels. The speaker materials and construction are robust enough to stand up to some serious thrashing, so speaker grills are not needed and they will sound and look great after many years of use. |
| POWER TRANSFORMERS | Power transformers are a large contributor to the overall audio performance, especially in the low end. Again, no off-the-shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, directly translating to lower noise. They are lighter than standard, lower-cost transformers and also generate less heat. |
| SHIELDING | Both drivers are directly video shielded and allow the user to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard-drive digital music players. |
