A47, 67mm Height, 145W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 16160494
- Manufacturer: DYNATRON
- MPN: A47
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$29.93

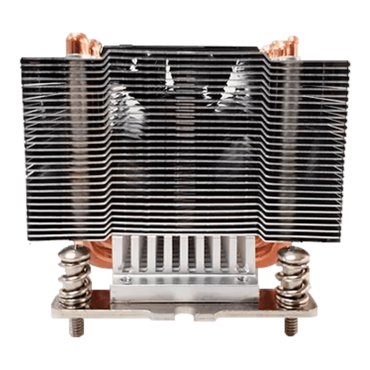

A47, 67mm Height, 145W TDP, Copper/Aluminum CPU Cooler
The Dynatron A47 CPU cooler is designed for A47 (Performance version of A24)
The Dynatron A47 CPU cooler is designed for A47 (Performance version of A24)
| CPU Support | AMD® Ryzen |
| CPU Socket | AM4/AM5 |
| Solution | 2U Server and Up |
| Dimensions | 107 x 78 x 67 mm |
| Weight | 400 g |
| Material | 4 Heat pipes and Aluminum Stacked Fin |
| Fan Dimension | 60 x 60 x 25 mm |
| Speed |
At Duty Cycle 20%: 2300±200 RPM At Duty Cycle 50%: 5400±10% RPM At Duty Cycle 100%: 11000±10% RPM |
| Bearing | Double-Ball |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
| AIr Flow |
At Duty Cycle 20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
| Noise Level |
At Duty Cycle 20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 1.48 mm-H2O At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
