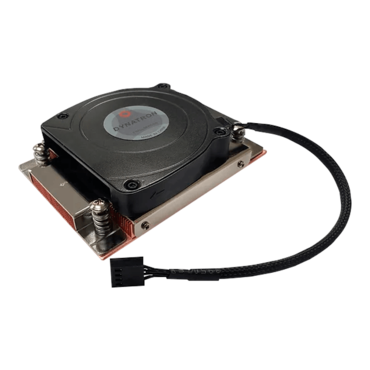

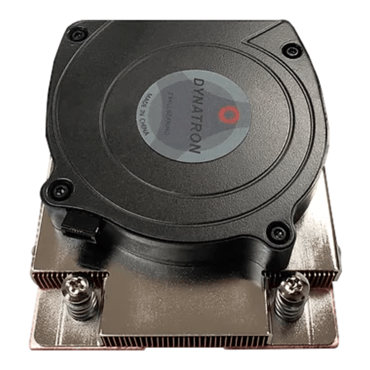

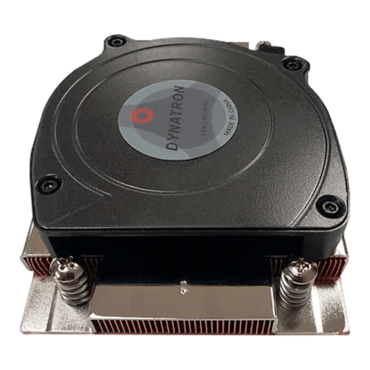

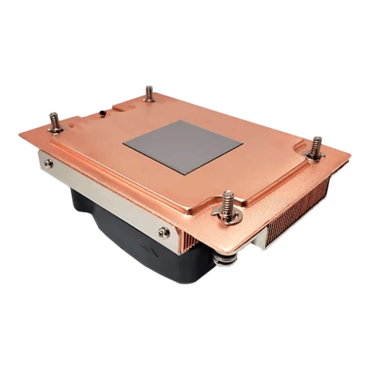

A45, 27.3mm Height, 105W TDP, Copper CPU Cooler
Quantity:
- SKU: 16163091
- Manufacturer: DYNATRON
- MPN: A45
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$34.18
A45, 27.3mm Height, 105W TDP, Copper CPU Cooler
The Dynatron A45 CPU cooler is designed for A45 ( VC base with stacked fin)
The Dynatron A45 CPU cooler is designed for A45 ( VC base with stacked fin)
| CPU Support | AMD® Ryzen |
| CPU Socket | AM4/AM5 |
| Solution | 1U Server and up |
| Dimensions | 110.0 x 85.0 x 27.3 mm |
| Weight | 416 g |
| Material | Copper Fin + Vapor Chamber |
| Fan Dimension | 80 x 80 x 13 mm |
| Speed | At Duty Cycle 0~20%: 2000± 200 RPM At Duty Cycle 50%: 4900± 10% RPM At Duty Cycle 100%: 8700±10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 1.08 W At Duty Cycle 50%: 4.7 W At Duty Cycle 100%: 23.45 W |
| Air Flow | At Duty Cycle 0~20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level | At Duty Cycle 0~20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Air Pressure | At Duty Cycle 0~20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
