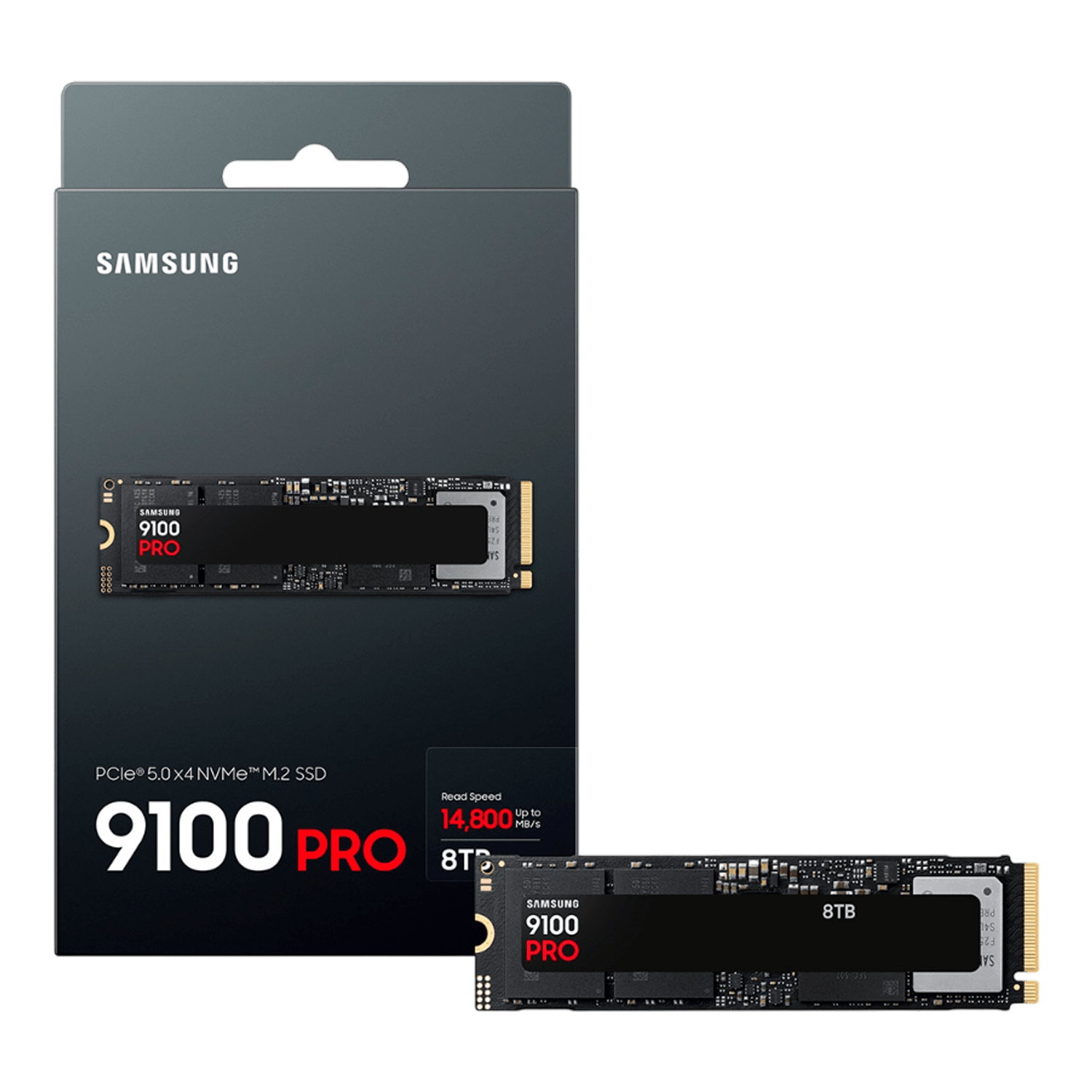

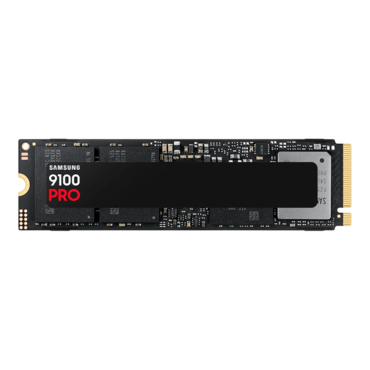

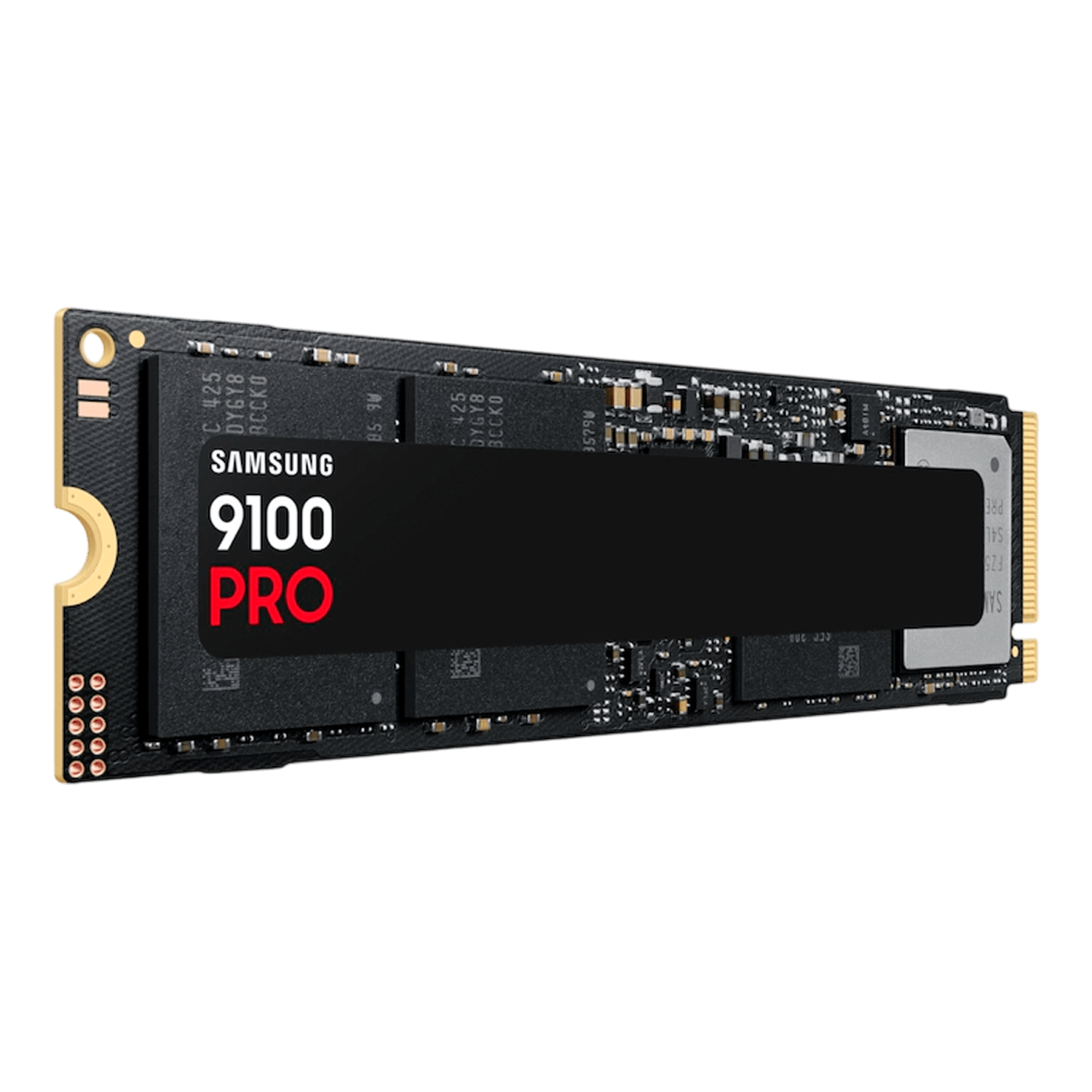

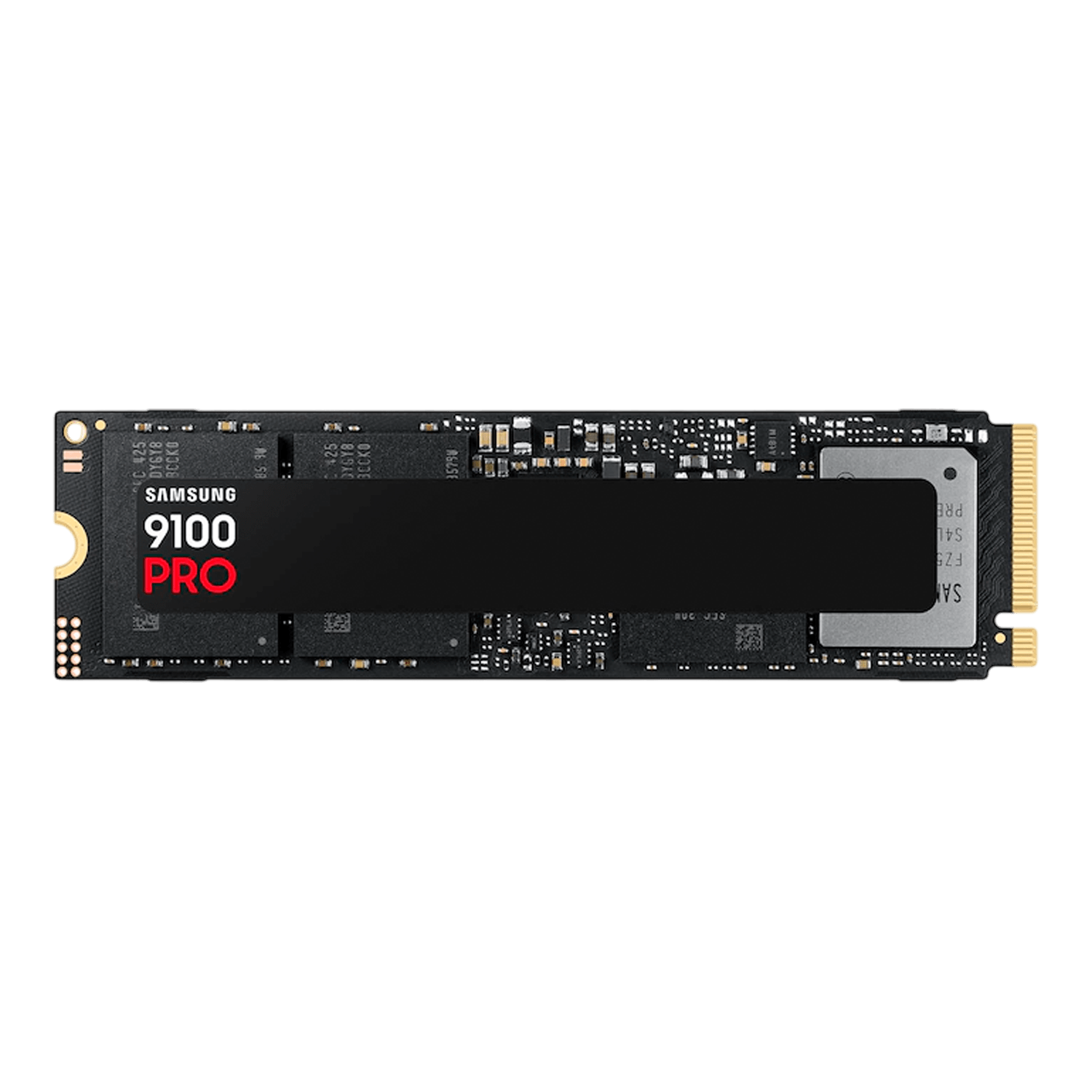

8TB 9100 PRO, 14800 / 13400 MB/s, V-NAND TLC (V8), PCIe NVMe 5.0 x4, M.2 2280 SSD
- SKU: 19387506
- Manufacturer: SAMSUNG
- MPN: MZ-VAP8T0B/AM
- Availability: TEMPORARILY OUT OF STOCK
Price
$1,047.66
- Supercharge your workflow and gaming with PCIe® 5.0. Blazing fast speeds and next-gen power for your most demanding tasks.
- Speed past productivity limits. With sequential read/write speeds up to 14,800/13,400 MB/s³, ultra-fast processing powers massive games, AI apps, and high-performance tasks with ease.
- No barriers, just action. Team up with the 9100 PRO with Heatsink SSD on your compatible PC, laptop, or PlayStation®56 and come out on top in any arena.
- The 9100 PRO with Heatsink SSD fuels seamless AI content creation, gaming, and more with random read/write speeds of up to 2,200K/2,600K IOPS.5
- More power, less heat. Smart efficiency and cooling keep you in the fast lane.
| General Information | |
| Application | Client PCs, Game Consoles |
| Capacity | 8,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Dimension (WxHxD) | 3.2 x 0.9 x 0.15 in |
| Weight | 0.02 lbs |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 8GB Low Power DDR4X SDRAM |
| Shipping Weight | 0.16 lbs |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 14,800 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 13,400 MB/s * Performance may vary based on system hardware & configuration |
| Random Read | Up to 2,200,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write | Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | |
| Average Power Consumption (system level) | Average: Read 10.5 W / Write 8.8 W* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Typical 9.3 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep) | Typical 8.6 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories | |
| Installation Kit | Not Available |
| Software | |
| Management SW | Magician Software for SSD management |
| Warranty | |
| Warranty | 5-year Limited Warranty or 4,800TBW Limited Warranty |
