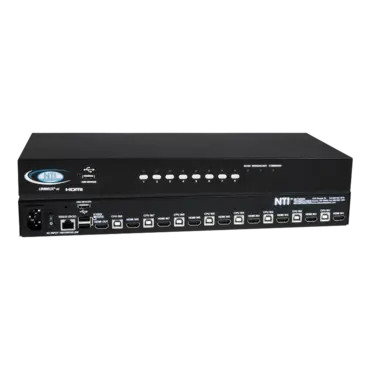

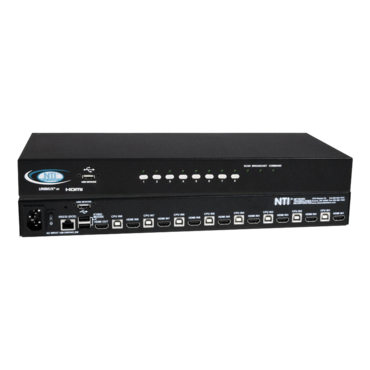

8-port 4K 18Gbps HDMI USB KVM Switch

The UNIMUX-HD4K18GB-8 4K 18Gbps HDMI USB KVM Switch allows a user to control 8 HDMI 2.0 Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse, and 4K HDMI monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

• Control 8 HDMI USB computers or devices from one user station
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA).
• HDMI features supported:
  • HDMI 2.0
  • Up to 12-bit Deep Color on input and 8-bit on output.
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
  • RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0
  •  Bandwidth up to 600 MHz (18Gbps)
  •  3D (1080p @60Hz)
  • HDR
• HDCP 2.2/1.4 compliant.
• Compatible with USB computers (PC, SUN and MAC).
• Switch sources through the front panel buttons, hot-key keyboard commands, OSD, or RS232.
• Two transparent USB 2.0 ports, in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
• Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
• High quality steel construction.
• Flash upgradeable.
• 1U 19" Rackmount kit and Cable management tray included.
