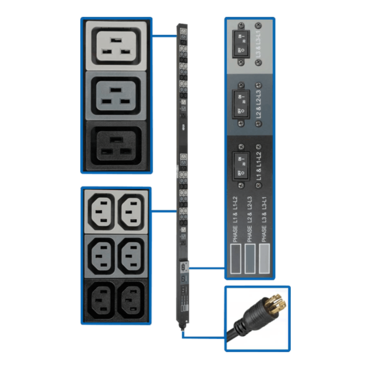

8.6kW 208/120V Three-Phase Basic PDU - 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack
- SKU: 13849314
- Manufacturer: TRIPP LITE
- MPN: PDU3V6L2130
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$798.18
- Product Type: PDU
- Input Voltage: 230 V AC
- Output Voltage: 120 V AC, 208 V AC
- Input Receptacles: NEMA L21-30P
| General Information | |
| Manufacturer: | Tripp Lite |
| Manufacturer Part Number: | PDU3V6L2130 |
| Manufacturer Website Address: | http://www.tripplite.com |
| Brand Name: | Tripp Lite |
| Product Model: | PDU3V6L2130 |
| Product Name: | PDU3V6L2130 48-Outlets PDU |
| Product Type: | PDU |
| Technical Information | |
| PDU Type: | Basic |
| Phase: | Three Phase |
| Input Receptacles: | NEMA L21-30P |
| Output Receptacles: | 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R |
| Protection Type: | Accidental Power Shutdown, Overload Protection, Circuit Protection |
| Locking Receptacles: | Cord Retention Bracket |
| Power Description | |
| Input Voltage: | 230 V AC |
| Output Voltage: | 208 V AC, 120 V AC |
| Power Rating (Watt): | 8.60 kW |
| Input Current: | 24 A |
| Physical Characteristics | |
| Mounting Orientation: | Vertical/Toolless |
| Mount Type: | Rack-mountable |
| Rack Height: | 0U |
| Height: | 70" (1778 mm) |
| Width: | 2.20" (55.88 mm) |
| Depth: | 1.71" (43.43 mm) |
| Weight (Approximate): | 6.30 kg |
| Miscellaneous | |
| Package Contents: |
|
| Environmentally Friendly: | Yes |
| Environmental Certification: | RoHS |
| TAA Compliant: | Yes |
| Warranty | |
| Limited Warranty: | 2 Year |
