READY TO SHIP
582T (58253-X-5A), 21.5" FHD capacitive touch screen, All-in-one Medical-Cart Computer, Intel® Core™ i5-10500T, 16GB DDR4 Memory, 512GB Flash, with 3x DR202 batteries, Windows 10 IoT Enterprise
Quantity:
- SKU: 15211287
- Manufacturer: DT RESEARCH
- MPN: 58253-X-5A
- Availability: LOW STOCK
Starting At
$2,099.00

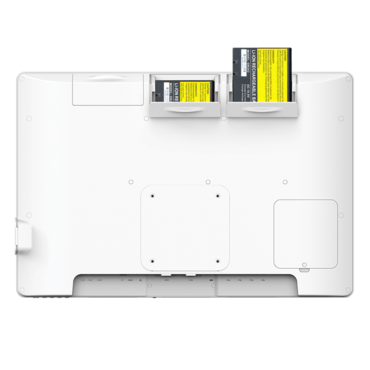

- Integrated hot-swappable batteries (3 batteries included)
- 21.5” high-resolution touchscreen
- Intel® Core™ i5
- Microsoft® Windows® 10/11 IoT Enterprise operating system
- Fanless, space-saving all-in-one design with antimicrobial enclosure
- VESA compatibility to maximize installation flexibility
- Built-in LED reading light
- HDMI video-out, support up to 4K UHD resolution
- ANSI/AAMI ES60601-1 certified, IP65-rated front panel, IPX2-rated enclosure
- Energy Star 8.0 certified (582T)
| System | |
| CPU | Intel® Core™ i5-10500T, 6-core, 2.3GHz (up to 3.8GHz) |
| RAM | 16GB |
| Storage | 512GB Flash |
| Operating System | Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu |
| Display | 21.5" Touchscreen |
| Display Resolution | 1920 x 1080 |
| Network Interface | Ethernet 10/100/1000 MB Base-T LAN; Wi-Fi 802.11ax, 2.4/5 GHz Dual Band |
| Trusted Platform Module | TPM 2.0 |
| Control Buttons | 1 x Power Button, 4 x Functional Buttons, 1 x Reading Light On/Off Button |
| Reading Light | 1 x LED Reading Light |
| Microphone and Speaker | Built-In Microphones & Speaker |
| I/O PORTS | |

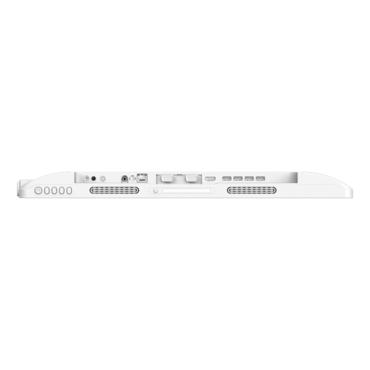

| USB Port | 4 x USB 3.0, 2 x USB 2.0 |
| COM Port | 2 |
| HDMI Port | 1(1.4a) |
| Audio Jack | 1 (3.5 mm) |
| Ethernet Port | 1 (RJ45) |
| DC-In Jack | 1 |
| DC-out (optional) | 12V x 1, 15V x 1, 19V x 1 |
| MECHANICAL AND ENVIRONMENTAL | |
| Fan/Fanless | Fanless |
| AC/DC Adapter | Input: 100 – 240V AC; Output: 19V DC, 6.31A |
| Battery Pack | (Optional) 3 x Li-Ion Battery (8250mAh, 90Wh) |
| Enclosure | ABS + PC Plastic with Antimicrobial Coating |
| Dimensions (H x W x D) | 13.6 x 20.4 x 1.6 in/345.9 x 516.9 x 40.4mm |
|
Weight (Without battery) |
12.6 lbs/5.7 kg |
|
Weight (With 3 batteries) |
14.1 lbs/6.4 kg |
| Water Resistance | Front Panel: IP65; Enclosure: IPX2 |
| VESA-compliant Mounting | 100 × 100 mm VESA Standard |
| Regulatory and Safety Certifications | ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, Energy Star 8.0, RCM, CCC |
| Temperature | Operation: 0°C – 40°C; Storage: -20°C – 60°C |
| Humidity | 0% – 90% non-condensing |
| MAJOR OPTIONS SPECS | |
| CAMERA | 5M Front Camera |
| NFC/RFID READER | Dual Frequency (Reads 125 KHz & 13.56 MHz Credentials) |
| Smart Card/CAC Reader | Full-Slot (Reads ISO 7816 T=0, T=1 & 1.8/3/5V Smart Card) |
