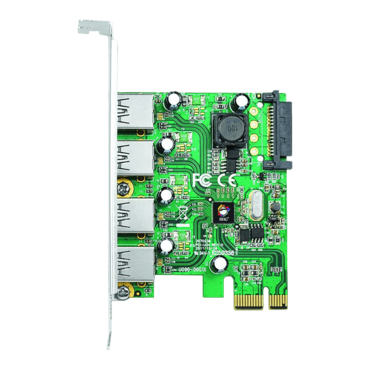

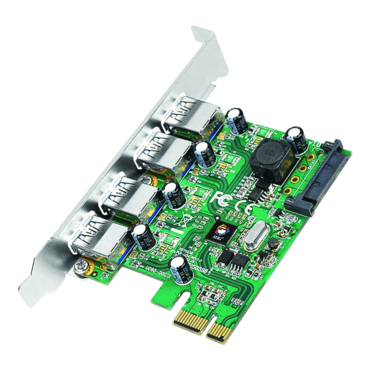

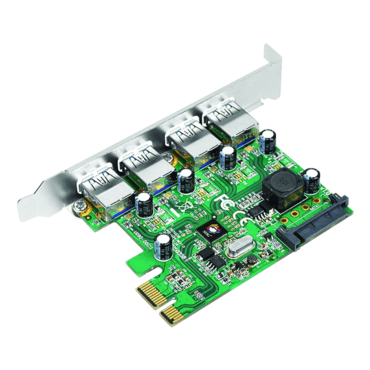

- Adds four external USB 3.0 ports to your PCIe-enabled desktop PC
- Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more
- Supports data transfer rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
- Supports per port over-current protection
- Powered by Renesas (NEC) chipset for maximum compatibility
- Supports UASP function (with Windows 10 and 8 native USB 3.0 Host driver only)
Chipset | Renesas uPD720201 | |
Supports UASP function (with Windows 10 and 8 native USB 3.0 Host driver only) | ||
Supports data transfer rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices | ||
Compliant with Universal Serial Bus 3.0 Specification | ||
Compliant with PCI Express Base Specification, Revision 2.0 | ||
Supports per port over-current protection | ||
Dimensions | 2.76" (W) x 0.79" (D) x 4.72" (H) | |
Weight | 0.12lbs | |
Connectors | 4x 9-pin, Type A, USB 3.0, Female, External | |
1x 15-pin, SATA power connector | ||
Environmental conditions | Operating temperature | 32 to 120 degrees F |
Storage temperature | -4 to 140 degrees F | |
Operating humidity | 20% to 80% RH | |
Storage humidity | 10% to 90% RH | |
Certifications/Standards | FCC, CE, RoHS | |
Warranty | Lifetime limited | |
Country of origin | China |
