| OVERVIEW |
| UPC Code |
037332261410 |
| PDU Type |
Auto-Transfer Switch; Local Metered; Monitored |
| INPUT |
| Input Phase |
Single-Phase |
| PDU Input Voltage |
200; 208; 220; 230; 240 |
| Recommended Electrical Service |
20A 208/240V; 16A 230V |
| Maximum Input Amps |
20 |
| Maximum Input Amps Details |
Agency de-rated to 16A continuous (North America) |
| Input Connection Type |
Primary: C20 inlet and Secondary: C20 inlet |
| PDU Plug Type |
(2) IEC-320 C20 |
| Input Cord Details |
Set of two inputs connect to separate PRIMARY and SECONDARY power sources |
| Input Cord Length (ft.) |
12 |
| Input Cord Length (m) |
3.66 |
| OUTPUT |
| Output Capacity Details |
3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max
per C19 outlet; 12A (10A CE) max per C13 outlet
|
| Frequency Compatibility |
50 / 60 Hz |
| Output Receptacle Details |
Compatible with Eaton Tripp Lite Power Cords |

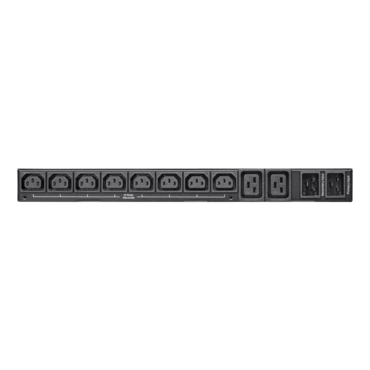

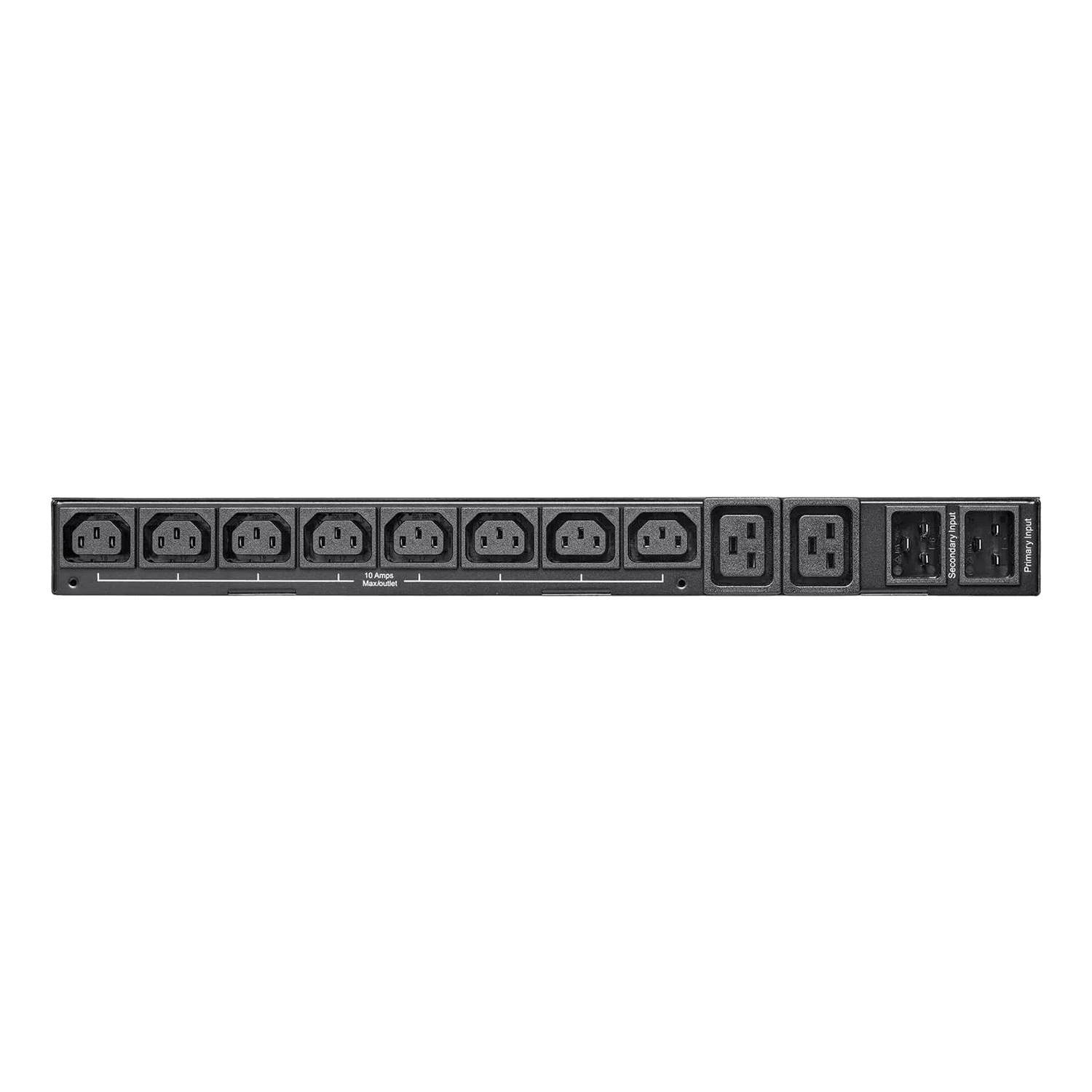

| Output Receptacles |
(8) C13; (2) C19 |
| Output Nominal Voltage |
200V; 208V; 220V; 230V; 240V |
| USER INTERFACE, ALERTS & CONTROLS |

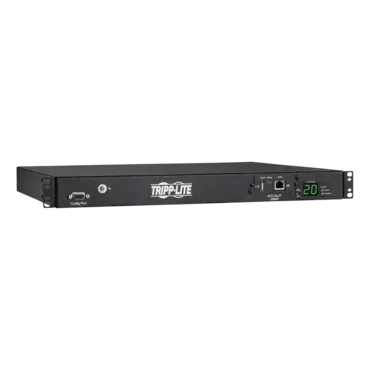

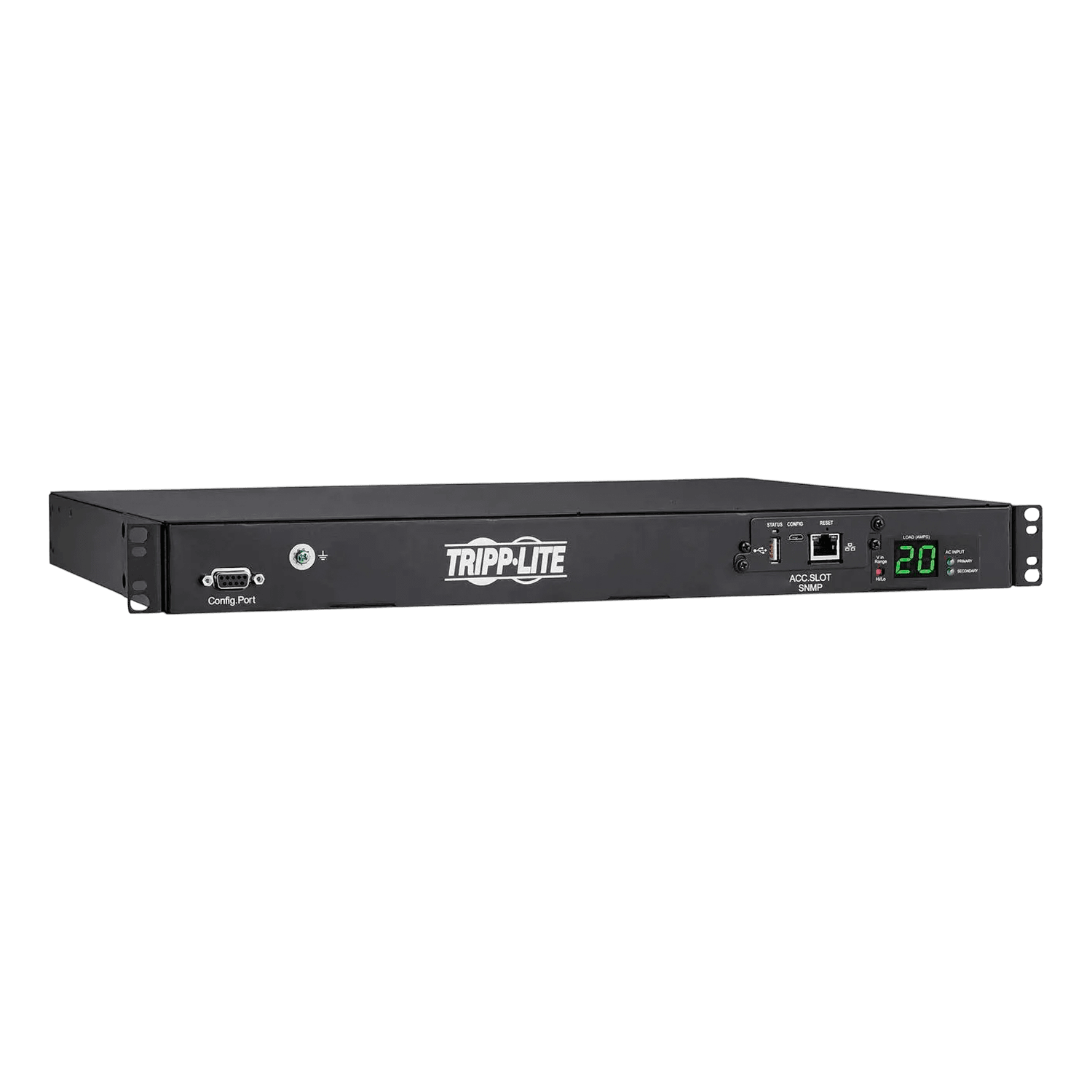

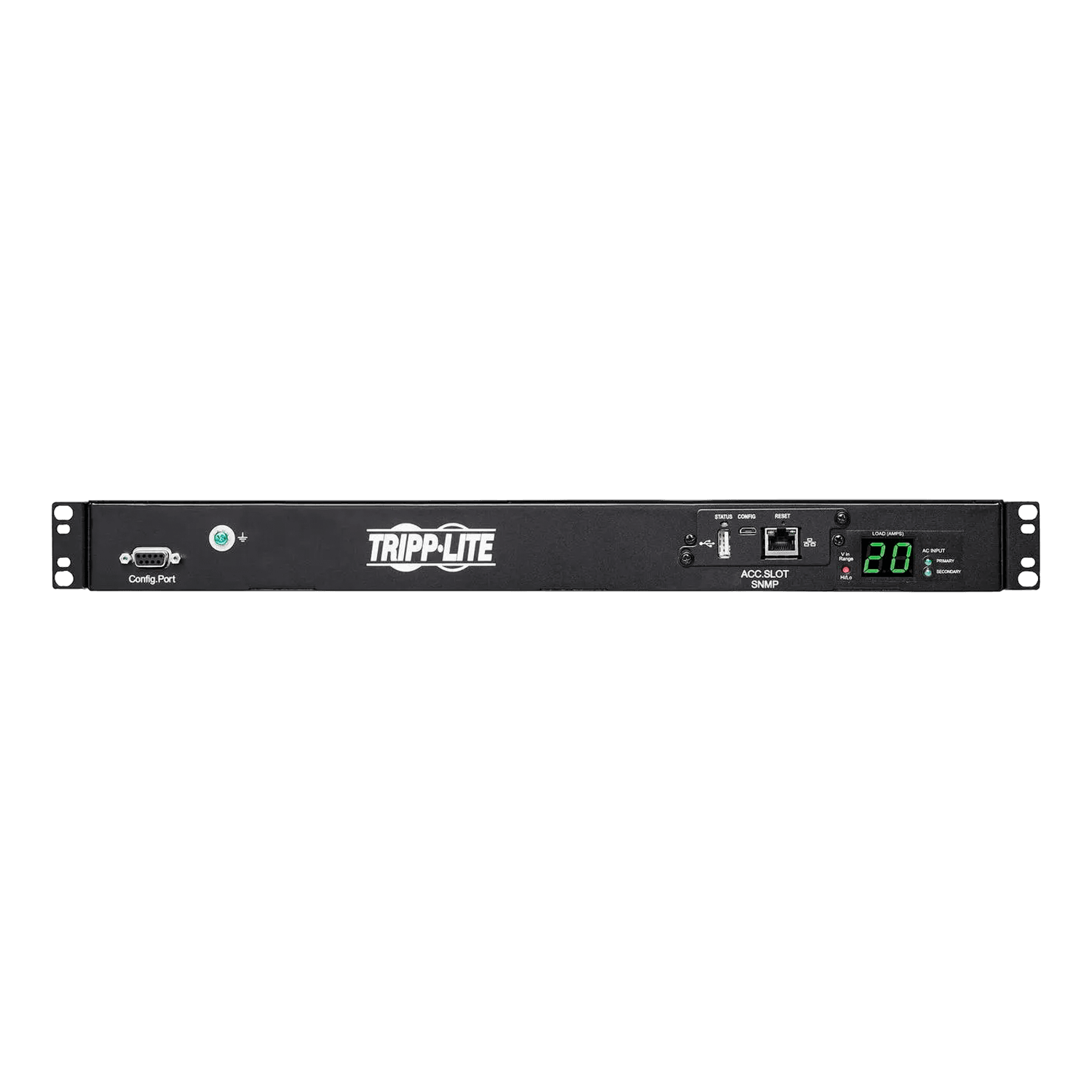

| Front Panel LCD Display |
Digital display reports total PDU output current in amps |
| Switches |
Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications
or "LO" for 200 or 208V applications
|
| LED Indicators |
2 additional LEDs to indicate input power status for primary and secondary inputs |
| SURGE / NOISE SUPPRESSION |
| Automatic Shut-Off |
No |
| PHYSICAL |
| Material of Construction |
Metal |
| Rack Height |
1U |
| Form Factors Supported |
1U rackmount |
| Minimum Required Rack Depth (cm) |
46.48 |
| Minimum Required Rack Depth (inches) |
18.3 |
| PDU Form Factor |
Horizontal (1U) |
| Shipping Dimensions (hwd / in.) |
5.40 x 20.80 x 23.40 |
| Shipping Weight (kg) |
7.71 |
| Unit Dimensions (hwd / in.) |
1.720 x 17.330 x 14.770 |
| Unit Dimensions (hwd / cm) |
4,4 x 43,9 x 37,6 |
| Unit Weight (lbs.) |
10.30 |
| Unit Weight (kg) |
4.67 |
| ENVIRONMENTAL |
| Operating Temperature Range |
32° to 104°F (0° to 40°C) |
| Storage Temperature Range |
-22° to 122°F (-30° to 50°C) |
| Relative Humidity |
5% to 95% non-condensing |
| Operating Elevation |
0-10000 ft. (0-3000 m) |
| COMMUNICATIONS |
| PowerAlert Software |
LX Platform Interface: PowerAlert Device Manager |
| Communications Cable |
Micro-USB- to-USB A configuration/console Access cable |
| SNMP Compatibility |
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface,
telnet, SSH and SNMP management systems
|
| FEATURES & SPECIFICATIONS |
| High Availability PDU Features |
Auto-Transfer Switching |
| STANDARDS & COMPLIANCE |
| Product Certifications |
RETIE (Colombia); NOM (Mexico); UL 62368-1 |
| Product Compliance |
RoHS; CE (Europe); EAC (Belarus, Kazakhstan, Russia); FCC Part 15 Class A (USA); UKCA; Trade Agreements
Act (TAA)
|
| WARRANTY & SUPPORT |
| Product Warranty Period (Worldwide) |
2-year limited warranty |
