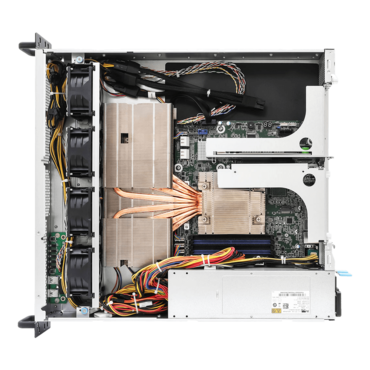

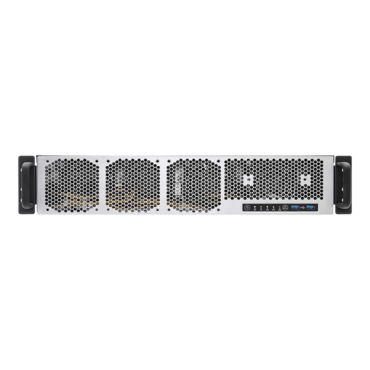

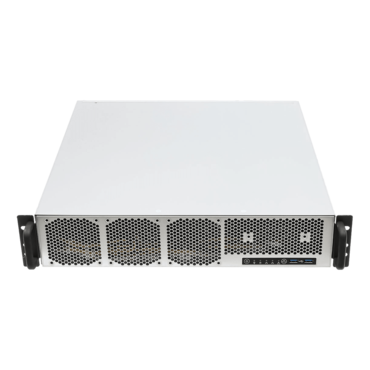

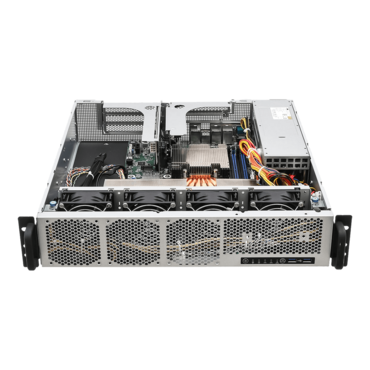

2U1G-B650/EVAC, 2U, AMD B650E, 2x M.2 NVMe, 4x DDR5, 2x 1GbLAN, 1200W Rdt PSU
- SKU: 19397572
- Manufacturer: ASROCK
- MPN: 2U1G-B650/EVAC
- Availability: TEMPORARILY OUT OF STOCK
Price
$1,966.25
| System | |
| Form Factor | 2U Rackmount |
| Dimensions | 477.7 x 430.4 x 88 mm (18.8'' x 16.9'' x 3.5'') |
| Support MB | B650D4U/1U4L2E |

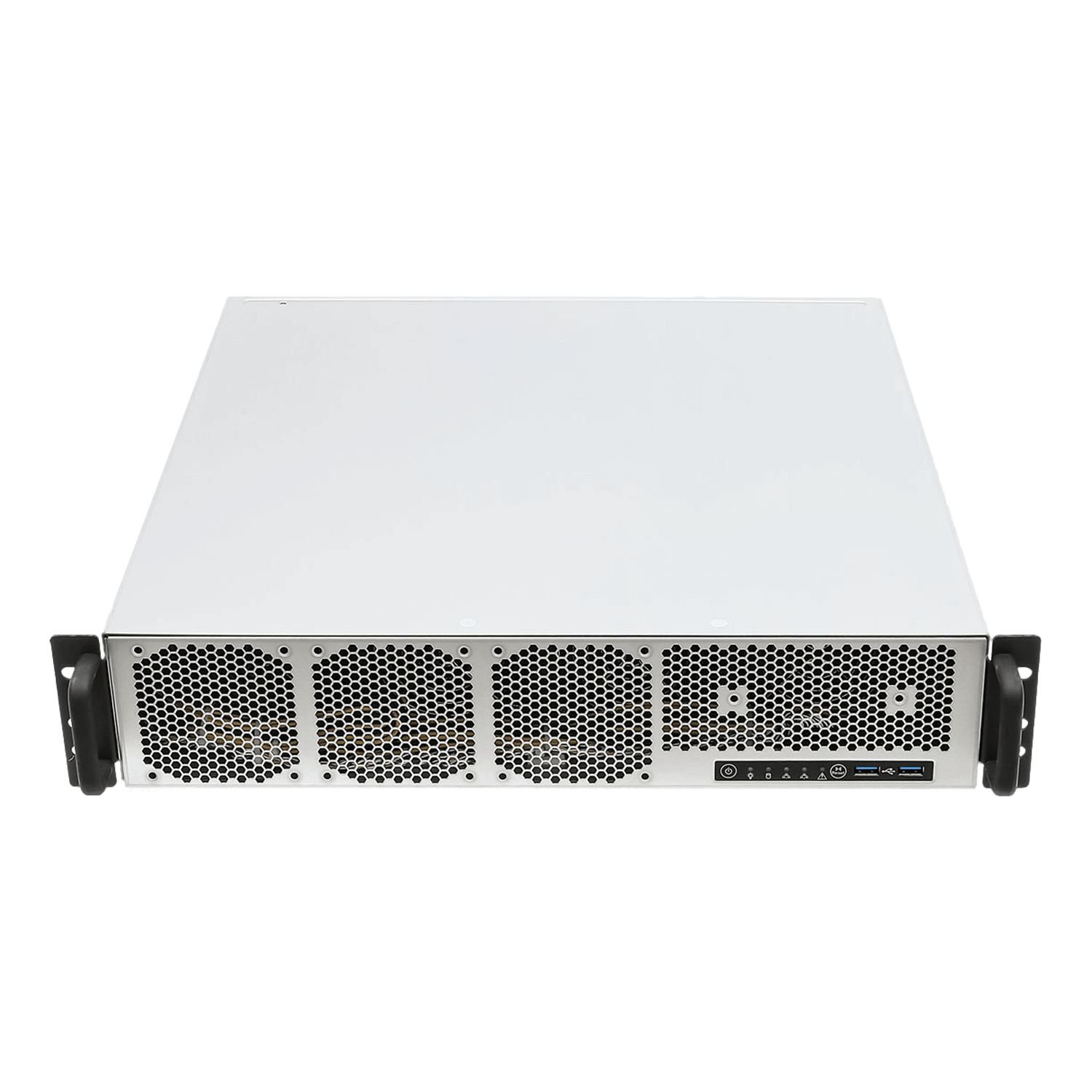

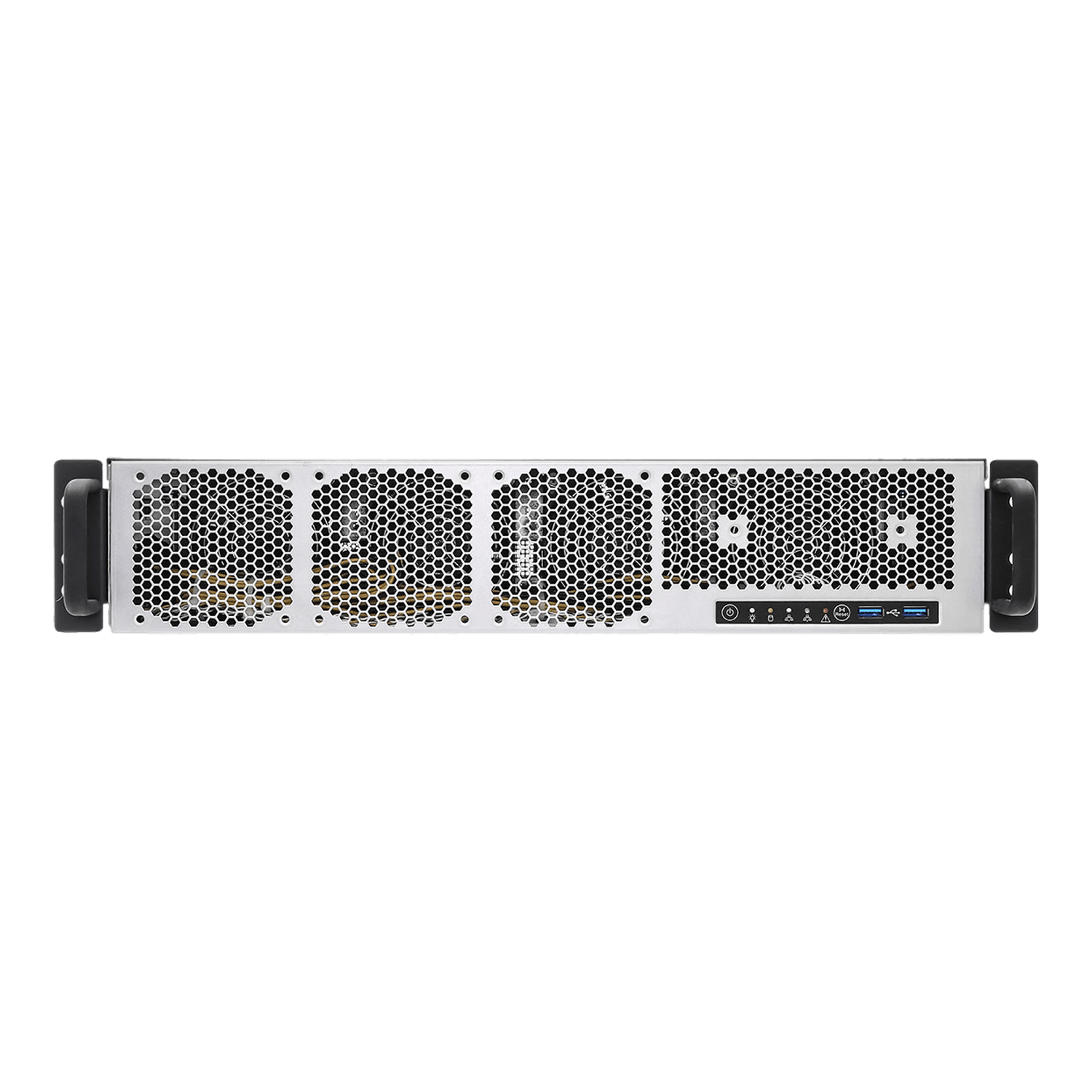

| Front Panel | |
| Buttons | Power button w/ LED, System Reset button |
| LEDs | System Fail LED, LAN1/LAN2 Activity, Power Status LED |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Internal Side |
1 optional fixed 2.5" drive bay 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] 1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH] |
| Power Supply | |
| Type | 1+1 Hot-swap CRPS |
| Output Watts | 1000W @ 100-127Vac input / 1200W @ 200-240Vac input |
| Efficiency | 80-PLUS Platinum |
| AC Input | AC 100-127V/12A, 50-60Hz; AC 200-240V/7.5A, 50-60Hz |
| System Fan | |
| Fan | 4 PWM easy-swap 80x38 mm fans |
| Processor System | |
| CPU | Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W |
| Chipset | AMD B650E |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 48GB |
| Max. DIMM Frequency | 5600 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 |
1 FHFL dual-slot PCIe5.0 x16 via RB2UX16L_G5_RDV Support GPU card dimensions (L x W x H): 335 x 131 x 39 mm (GPU power connector on the south edge) 312 x 154.5 x 39 mm (GPU power connector on the east edge) |
| PCIe x 4 | 1 FHHL PCIe4.0 x4 via riser cable |
| Ethernet | |
| Additional GbE Controller | Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller |
ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |

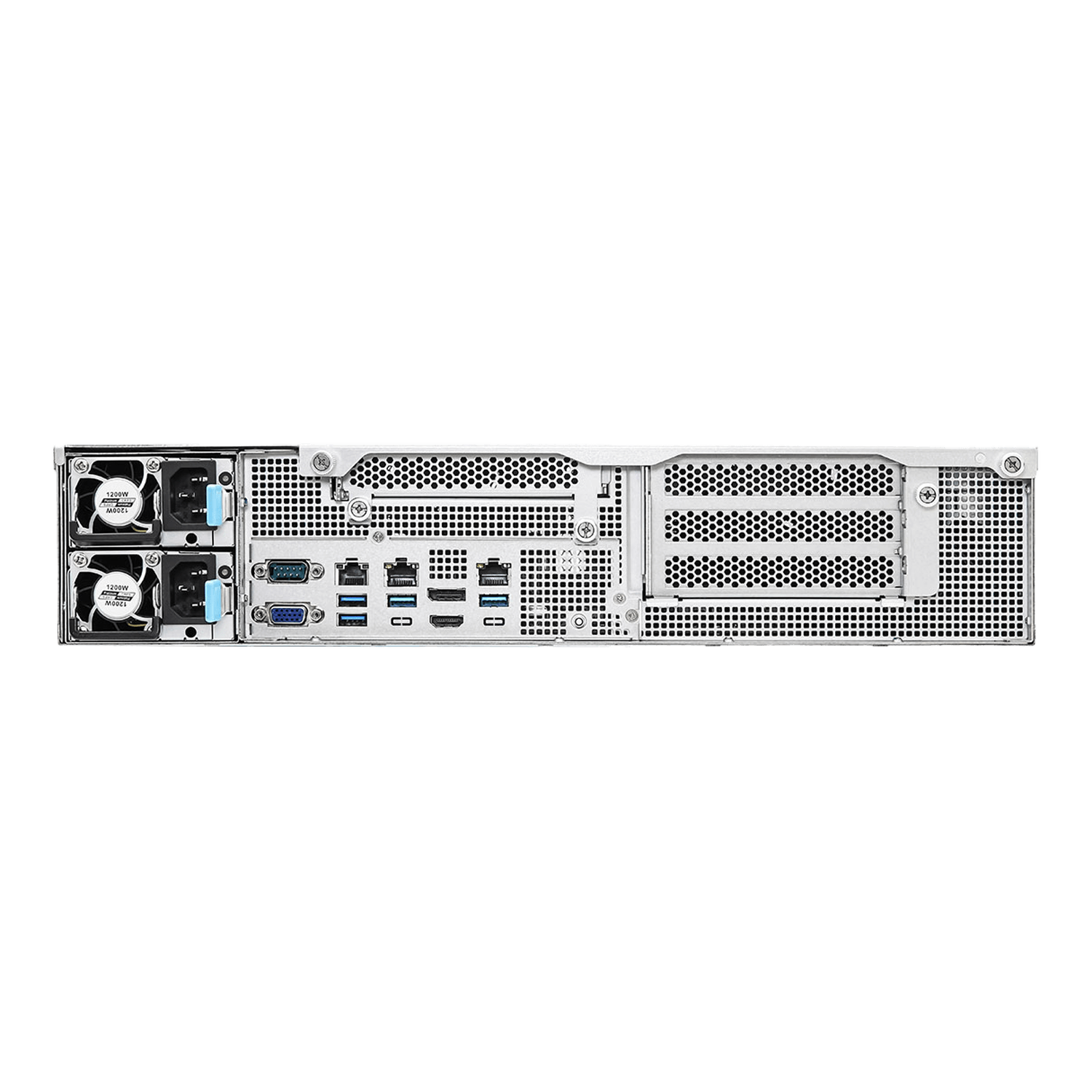

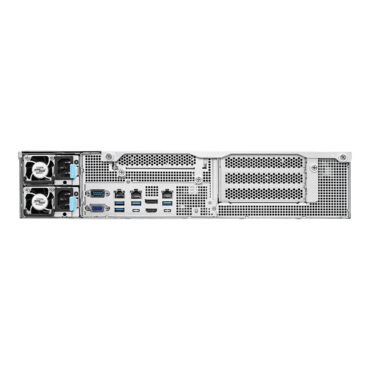

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (1GbE) 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Supported OS | |
| OS |
AMD Ryzen CPU: Microsoft® Windows: - Windows® 10 (64 bit) - Windows® 11 (64 bit) Linux: - RedHat Enterprise Linux Server 8.7 (64bit) - CentOs 8.5 ( 64 bit) - SUSE SLES 15.4(64 bit) / 15.2(64 bit) - UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit) Hypervisor: - VMWare® ESXi 8.0 / 7.0 U3g AMD EPYC 4004 CPU: Microsoft® Windows: - Windows® Server2022 (64 bit) * Bios setting: Advanced > Chipset Configuration > Server WHQL Support setting Enable Linux: - RedHat Enterprise Linux Server 8.9 ( 64 bit) / 9.3 (64bit) / 9.4 (64bit) - SUSE SLES 15.5(64 bit) - UBuntu 20.04.6 (64 bit) / 22.04.4 (64 bit) * The Linux system doesn't support Raid Mode. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
