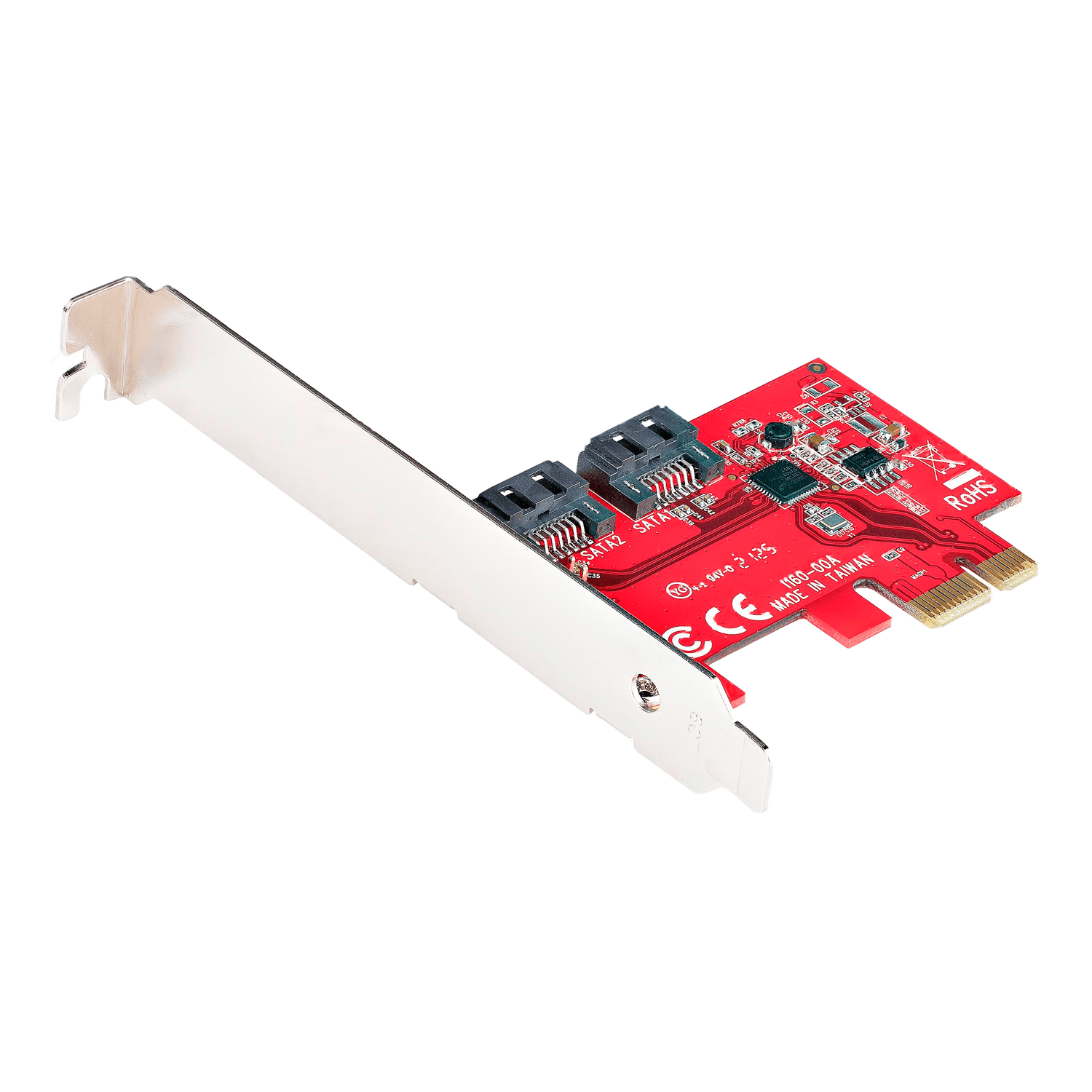

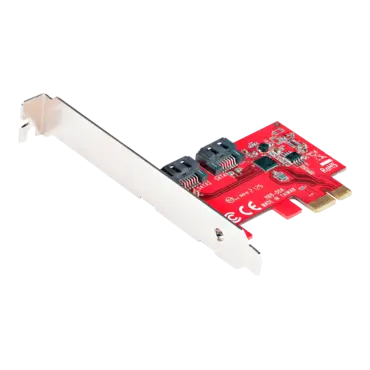

2P6G-PCIE-SATA-CARD, PCI Express to 2 SATA Port, Adapter/Controller Card
- SKU: 14711927
- Manufacturer: STARTECH.COM
- MPN: 2P6G-PCIE-SATA-CARD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| General | |
| UPC | 065030895545 |
| Package Quantity | 1 |
| Warranty | Lifetime |
| Special Notes / Requirements | |
| Special Notes | Booting an OS from this card is not supported. |
| Physical & Environmental | |
| Color | Red |
| Product Length | 3.0 in [77.0 mm] |
| Product Width | 0.7 in [18.5 mm] |
| Product Height | 4.8 in [12.1 cm] |
| Weight of Product | 1.2 oz [33.0 g] |
| Operating Temperature | 0°C to 85°C (32°F to 185°F) |
| Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 20~80% RH |
| Performance | |
| Maximum Data Transfer Rate | 6 Gbps |
| TRIM Support | Yes |
| S.M.A.R.T. Support | Yes |
| 4Kn Support | Yes |
| SATA Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | Yes |
| RAID | No |
| Hardware | |
| Number of Ports | 2 |
| Interface | SATA |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards |
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps) PCI Express Base Specification Revision 2.0 |
| Chipset ID | ASMedia - ASM1061 |
| LED Indicators | 2 - Header pins, for drive activity |
| Packaging & In-the-Box | |
| Included in Package |
1 - PCIe SATA Card 1 - Full-Profile Bracket (Installed) 1 - Low-Profile Bracket 1 - Quick-Start Guide |
| Package Width | 6.9 in [17.4 cm] |
| Package Depth | 5.6 in [14.3 cm] |
| Package Height | 1.3 in [34 mm] |
| Shipping (Package) Weight | 3.8 oz [108 g] |
| Connector(s) | |
| Connector 1 (Quantity) | 1 |
| Connector 1 | PCI Express x1 |
| Connector 2 (Quantity) | 2 |
| Connector 2 | SATA (7-Pin) |
