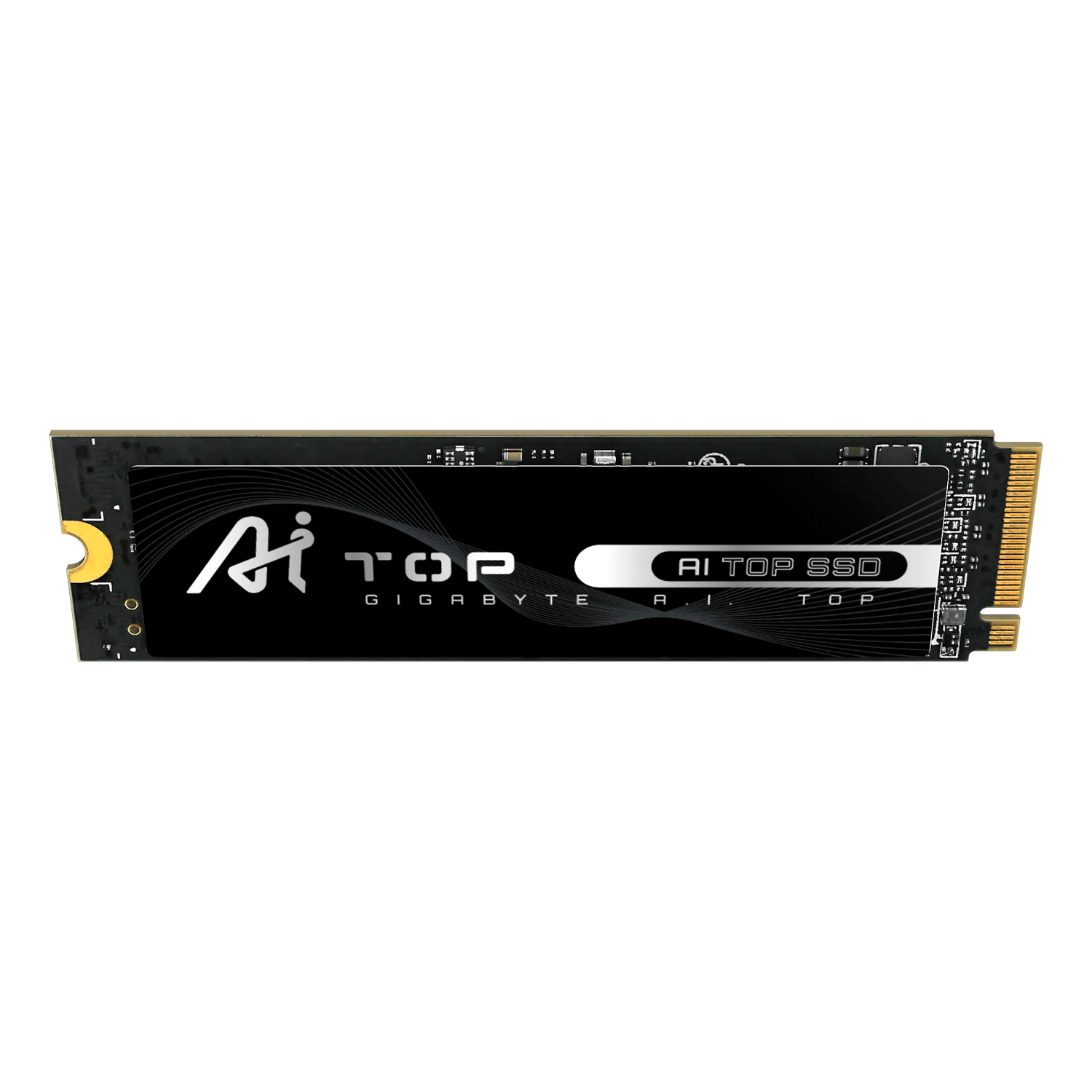

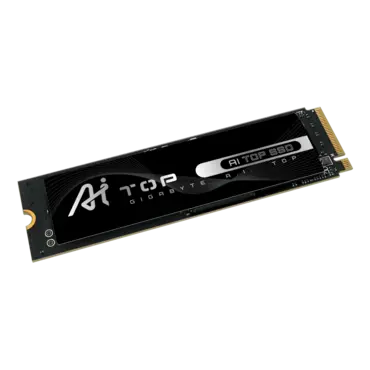

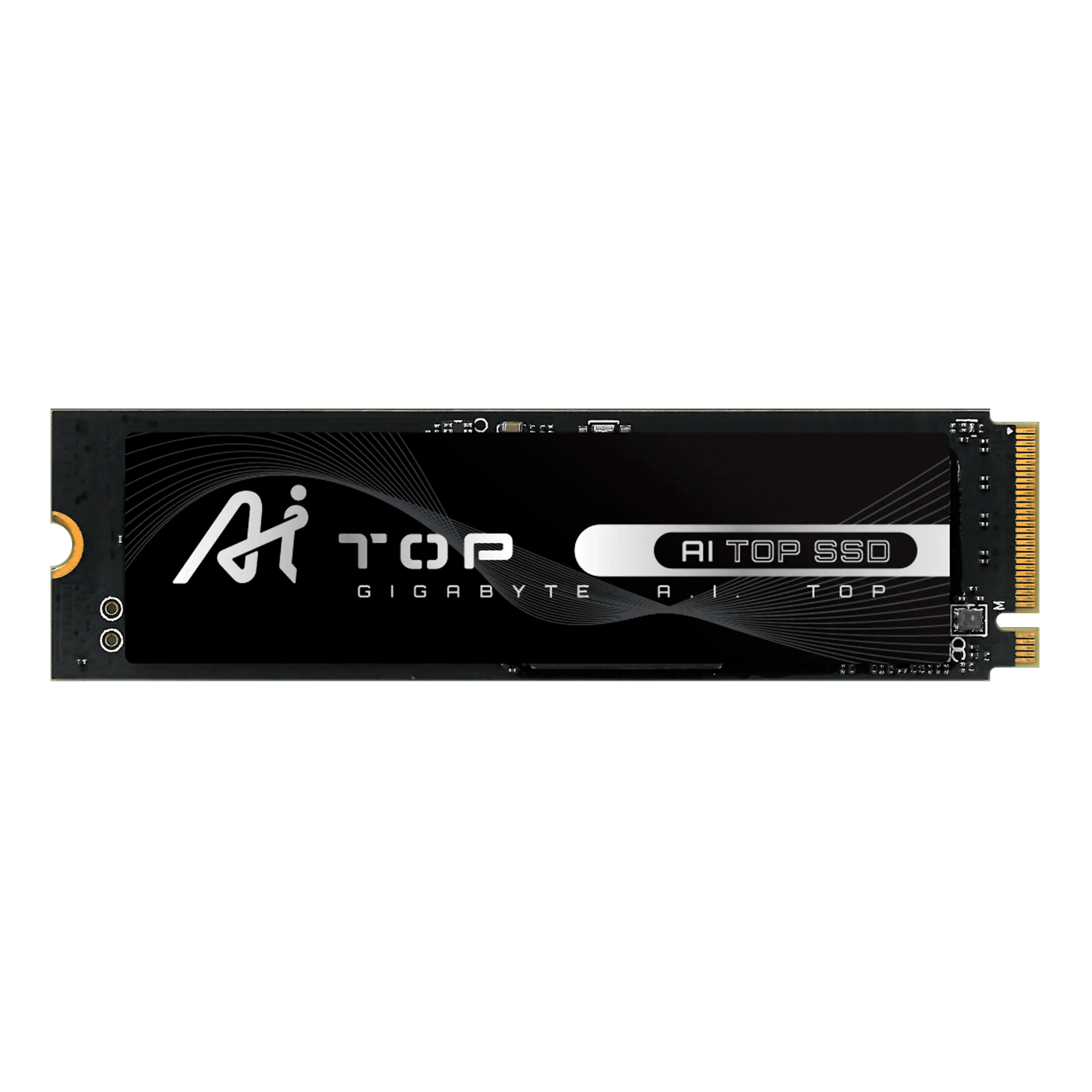

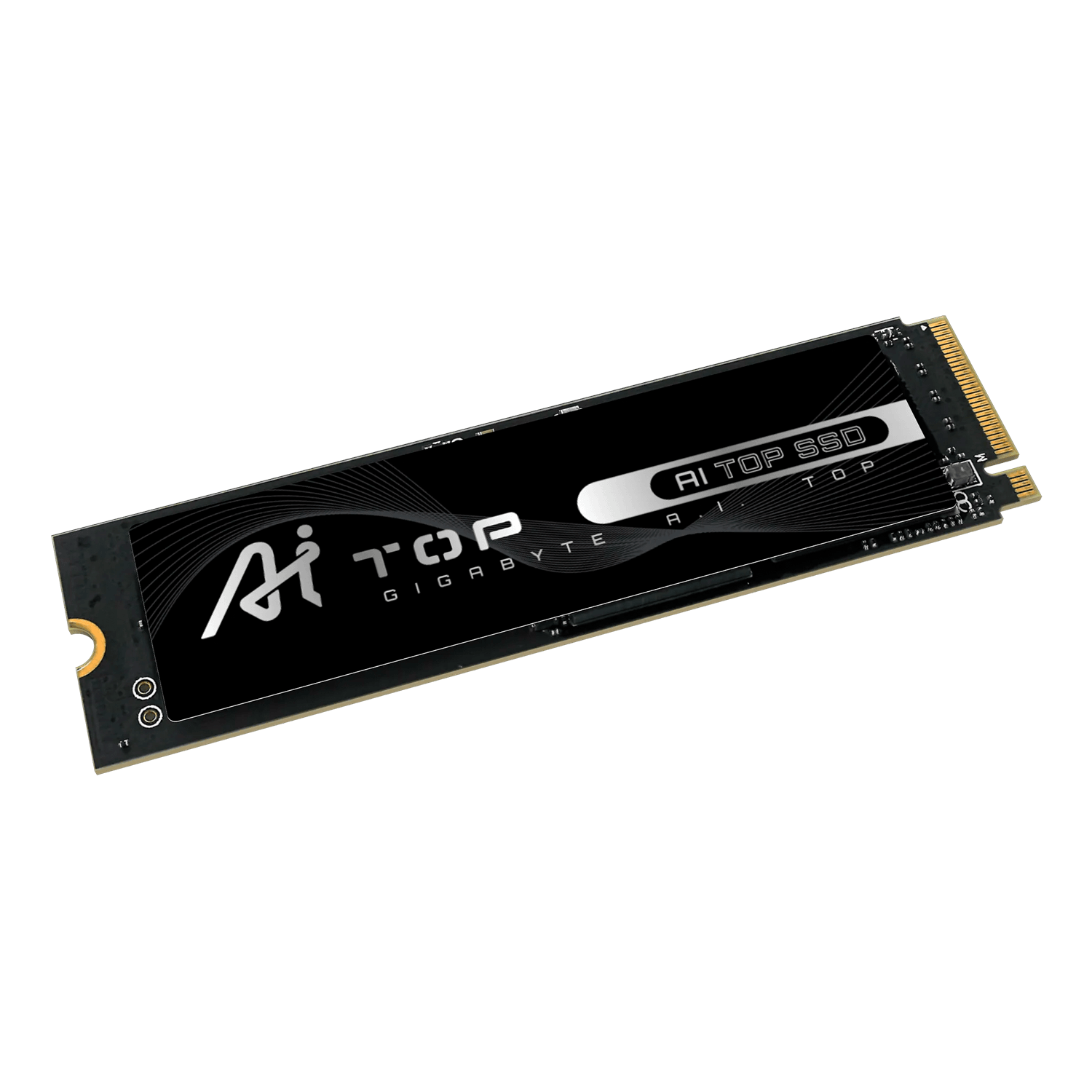

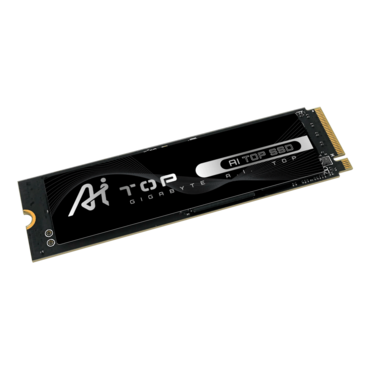

1TB AI TOP 100E, 7200 / 6500 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

1TB AI TOP 100E, 7200 / 6500 MB/s, 3D NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

SKU: 19025047
Manufacturer: GIGABYTE
MPN: AI100E1TB
Availability: TEMPORARILY OUT OF STOCK

Price

$2,879.38

Interface	PCI-Express 4.0x4, NVMe 1.4
Form Factor	M.2 2280
Total Capacity	1024GB
NAND	3D NAND Flash
External DDR Cache	LPDDR4 1GB
Sequential Read speed	Up to 7,200 MB/s
Sequential Write speed	Up to 6,500 MB/s
Dimension	80 x 22 x 3.5 mm
Mean time between failure (MTBF)	1.6 million hours
Max. Operating Power	Read: 10.8W; Write: 11.0W
Power Consumption (Idle, PS3)	30mW
Power Consumption(PS4, L1.2)	3mW
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C
Warranty	1. Limited 5-years or 109,500TBW. 2. Limited warranty based on 5 years or 109,500TBW, whichever comes first. (TBW is evaluated by JEDEC workload standard. ) TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the ""Percentage Used"" (SMART ID: 05) reaches 100 means out of warranty. (A new unused product will show the number of 0) 4. When the usage of an NVME SSD as indicated by the "Data units written" (SMART ID: 07) reaches “36C0000000” (Hexadecimal) means out of warranty.
Note	Test system configuration: configuration may vary by models, we will choose the latest platform for verification. Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. Speeds based on internal testing. Actual performance may vary. 1GB = 1 billion bytes. Actual useable capacity may vary.
