150W PowerVerter® Car Adapter, 12V DC to 120V AC, 1 Outlet
Harness your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 150 watts of 120V AC power to a single AC outlet from any 12V battery or automotive DC source. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
|
Portable Power for All Applications

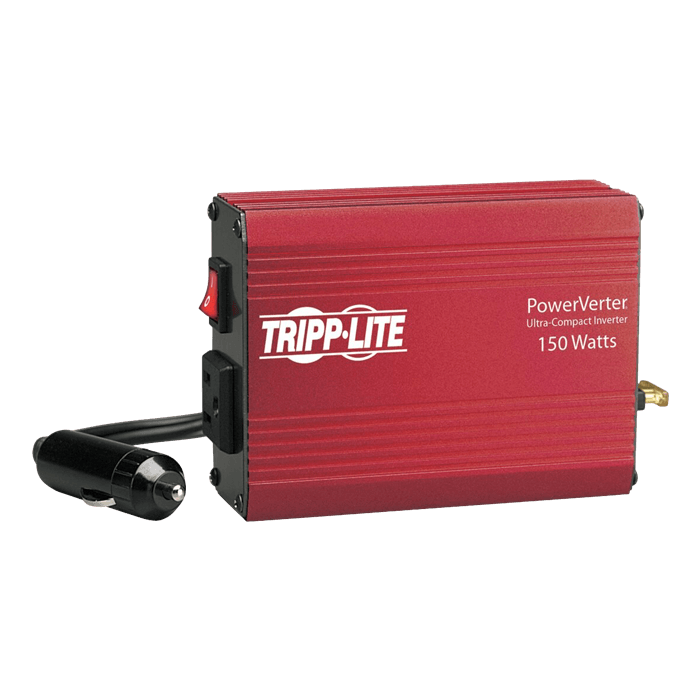

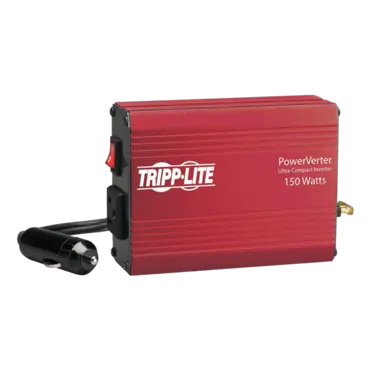

PowerVerter® 150-Watt Ultra-Compact Inverter
Overview:
- 12V DC input; 120V AC output; 1 outlet
- 150 watts continuous output
- 300 watts peak output (instantaneous)
- Convenient cigarette lighter plug
Harness your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 150 watts of 120V AC power to a single AC outlet from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. cable provides 1-step installation. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.
Key Features:
- Allows users to run AC appliances from any 12V cigarette lighter socket
- Converts 12V DC battery power to 120V AC power
- 150 watts continuous output; 300 watts peak output power (instantaneous)
- 1 outlet
- 3-ft. cord with cigarette-lighter plug
- Ultra compact, lightweight design with all-metal housing
- Low battery alarm with auto-shutoff prevents deep battery discharge
- 20-amp fuse protects inverter from overload
- Lighted power switch
Applications:
Ideal for laptops, portable electronics, battery chargers for cell phones, pagers, notepads, game systems, personal printers and battery rechargers for small battery operated power tools, portable TV/audio systems, camcorders, low power lights, camping accessories and other low-power applications under 150 watts.
Specifications:
| SYSTEM OVERVIEW |
| System overview: |
Compact 12 volt DC to 120 volt AC power inverter. 150 watts continuous / 300 watts peak (instantaneous). Cigarette lighter input jack, 1 AC outlet. DC input operating range 10-15VDC. Alarm sounds as voltage drops to 10.5V. Auto-shutdown occurs at 10V. |
| Voltage compatibility: |
Compatible with 12VDC automotive systems |
| Frequency compatibility: |
60 Hz |
| OUTPUT |
| Output watt capacity (watts): |
150W (continuous)/300W (peak) |
| Output nominal voltage: |
120V |
| Output voltage regulation: |
Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC) |
| Output frequency regulation: |
60 Hz (+/- 3 Hz) |
| Outlet quantity / type: |
1 NEMA 5-15R |
| Overload protection: |
Via 20A automotive input fuse |
| INPUT |
| Maximum input amps / watts: |
Full continuous load - 14A at 12VDC, No load - 0.4A at 12VDC |
| Input connection type: |
12VDC cigarette lighter input plug connection |
| Input cord length: |
3 ft. hardwire input cable, 16 gauge, 2 wire |
| BATTERY |
| DC system voltage: |
12V |
| LEDS ALARMS & SWITCHES |
| Alarms: |
Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less. |
| Switches: |
Lighted on/off power switch |
| PHYSICAL |
| Shipping weight (lbs): |
1.3 |
| Shipping weight (kg): |
.59 |
| Unit weight (lbs): |
1.2 |
| Unit weight (kg): |
0.54 |
| Unit Dimensions (HWD/in): |
1.75 x 3.75 x 5.75 |
| Unit Dimensions (HWD/cm): |
4.45x 9.5 x 14.6 |
| Shipping Dimensions (HWD/in): |
8 x 5 x 1.65 |
| Shipping Dimensions (HWD/cm): |
20.3 x 12.7 x 4.2 |
| Material of construction: |
Aluminum / sheet metal |
| Cooling method: |
Convection |
| ENVIRONMENTAL |
| Operating Temperature: |
32-104 Fahrenheit / 0-40 Celcius |
| Relative Humidity: |
0-95% non-condensing |
| WARRANTY |
| Product warranty: |
1 year (Outside the U.S. and Canada, call for warranty information) |
| SPECIAL FEATURES |
| Appearance: |
Attractive, rugged, metallic red color inverter system |
|
